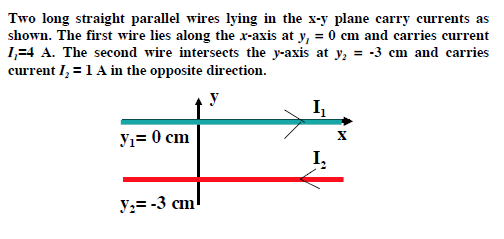

Two long straight parallel wires lying in the x-y plane carry currents as shown. The first wire lies along the x-axis at y, -0 cm and carries current 1,F4 A. The second wire intersects the y-axis at y, - -3 cm and carries current I21 A in the opposite direction. yi- 0 cm I, v,--3cm

A point-like charge of +5nC is at the origin and travelling with a velocity of 3 x 106 m/s in the positive x-direction.

A.) What is the magnetic field vector that this charge produces at (x = y= 0, z = +1mm)?

b.)What is the Lorentz force (magnitude and direction) this charge will exert on another charge of -10 nC placed at (x = y =0, z = +1 mm) which is moving with the same speed and in the same direction as the first?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

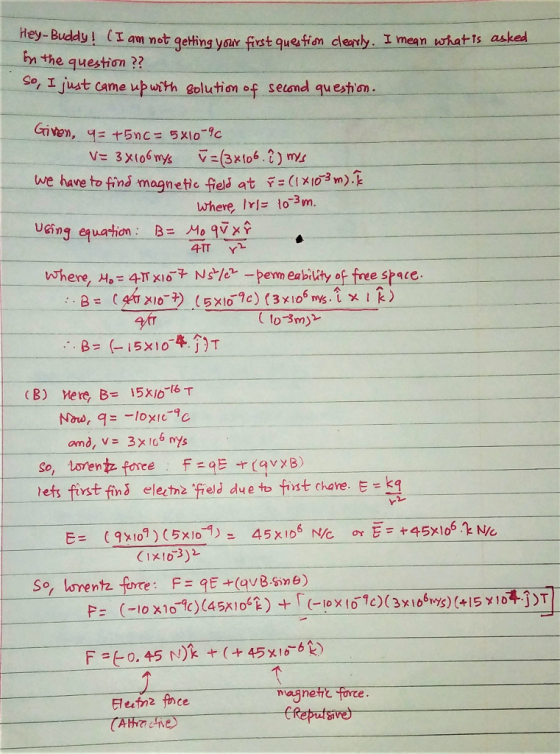

Answer #1

Alright Dude, If that worked for you... dont forget to give THUMBS UP.(that will work for me!)

If I missed something feel free to leave a comment.

atleast before giving downvote.

and, Thanks for using homeworklib- Smarter way to study.

0 0
