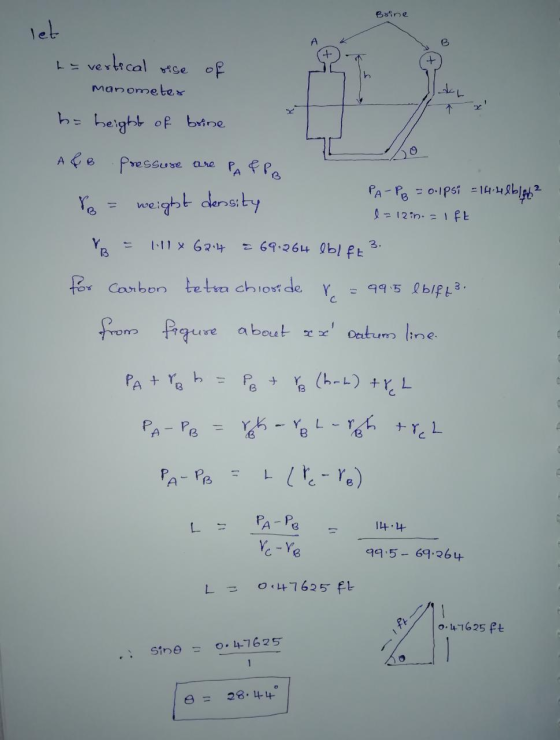

Detailed solution is shown below ask if any doubt
Add Answer to:

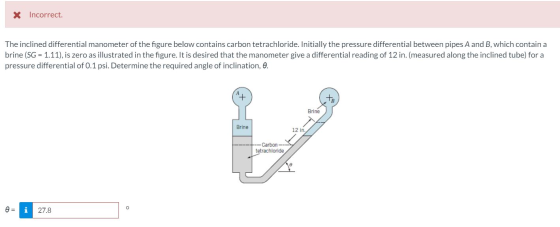

* Incorrect. The inclined differential manometer of the figure below contains carbon tetrachloride. Initially the pressure...
(Manometer) Determine the angle of the inclined tube shown in figure below if the pressure at...
(Manometer) Determine the angle of the inclined tube shown in figure below if the pressure at A is 1 psi greater than that at B. SG=0.77 SG = 1.0 10.0 ft 24.2854 deg
Carbon tetrachloride (manometer liquid, M, in the figure below, SG = 1.6) is poured into a...
Carbon tetrachloride (manometer liquid, M, in the figure below, SG = 1.6) is poured into a U-tube with both ends open to the atmosphere. Then water is poured into one leg of the U- tube until the water column (y) is 20 cm high. Determine the height (h) of the carbon tetrachloride (h) above the water- carbon tetrachloride interface (point 1). Hint: 9M = (y)(SGN) Hint: P = P2 Hint: P = (h)(g)
Determine the new differential reading along the inclined leg of the mercury manometer of the figure...
Determine the new differential reading along the inclined leg of
the mercury manometer of the figure below, if the pressure in pipe
A is decreased 25 kPa and the pressure in pipe B
remains unchanged. The fluid in A has a specific gravity
of 0.9 and the fluid in B is water.
Assume h1 = 40 mm, h2 = 20
mm, h3 = 32 mm.
Determine the new differential reading along the inclined leg of the mercury manometer of the...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure below where !-210 cm. A gage was used to measure the pressure at the center of tank A and the reading was 60 kPa. A barometer locates near the tanks reads 72 cm of mercury. Specific weight of water is 9.81 kN/m3 and specific gravity (SG) of mercury is 13.6. a) Find the gage pressure in the center of tank B. b) Find the...
Refer to Figure below. Two vessels are connected to a differential manometer using mercury (SG =...
Refer to Figure below. Two vessels are connected to a
differential manometer using mercury (SG = 13.56), the connecting
tubing is filled with water. Pressure vessel B is 5 feet above
pressure vessel A. Room temperature prevails. If the mercury
reading, Rm, is 8.0 inches, what is the difference in pressure
(∆p), in psi, from point A to B? (numeric value only - NO
units)
Fu du
4-For the manometer shown in the Fig. below contains oil and water.For the column heights indicat...
4-For the manometer shown in the Fig. below contains oil and water.For the column heights indicated what is the pressur differential between pipes A and B. CDI water water 650) 20 10 Glycerin S.G-1.26 oil o-o.as S.G 0.85 Dimensions in cm S-The inverted U-tube manometer contains oil S.G.-0.9and water. The pressure differential between A and B, pA-PB is-5kPa Determine the differential reading,h Oil 0.2 m 0.3 m Water 9-Air flows through a pipe at a rate of 200L/s.The pipe consists...
Determine the new differential reading along the inclined leg of the mercury manometer as shown in the figure, if the pressure in pipe A is decreased 10 kPa and the pressure in pipe B remains unchanged. The fluid in A has a specific gravity of 0.9 and the
Determine the new differential reading along the inclined leg of the mercury manometer as shown in the figure, if the pressure in pipe A is decreased 10 kPa and the pressure in pipe B remains unchanged. The fluid in A has a specific gravity of 0.9 and the fluid in B is water.
(Manometer) Determine the angle of the inclined tube shown in figure below if the pressure at A is 1 psi greater than that at B. SG=0.77 SG = 1.0 10.0 ft 24.2854 deg
Carbon tetrachloride (manometer liquid, M, in the figure below, SG = 1.6) is poured into a U-tube with both ends open to the atmosphere. Then water is poured into one leg of the U- tube until the water column (y) is 20 cm high. Determine the height (h) of the carbon tetrachloride (h) above the water- carbon tetrachloride interface (point 1). Hint: 9M = (y)(SGN) Hint: P = P2 Hint: P = (h)(g)
Determine the new differential reading along the inclined leg of
the mercury manometer of the figure below, if the pressure in pipe
A is decreased 25 kPa and the pressure in pipe B
remains unchanged. The fluid in A has a specific gravity
of 0.9 and the fluid in B is water.
Assume h1 = 40 mm, h2 = 20
mm, h3 = 32 mm.
Determine the new differential reading along the inclined leg of the mercury manometer of the...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure below where !-210 cm. A gage was used to measure the pressure at the center of tank A and the reading was 60 kPa. A barometer locates near the tanks reads 72 cm of mercury. Specific weight of water is 9.81 kN/m3 and specific gravity (SG) of mercury is 13.6. a) Find the gage pressure in the center of tank B. b) Find the...
Refer to Figure below. Two vessels are connected to a
differential manometer using mercury (SG = 13.56), the connecting
tubing is filled with water. Pressure vessel B is 5 feet above
pressure vessel A. Room temperature prevails. If the mercury
reading, Rm, is 8.0 inches, what is the difference in pressure
(∆p), in psi, from point A to B? (numeric value only - NO
units)
Fu du
4-For the manometer shown in the Fig. below contains oil and water.For the column heights indicated what is the pressur differential between pipes A and B. CDI water water 650) 20 10 Glycerin S.G-1.26 oil o-o.as S.G 0.85 Dimensions in cm S-The inverted U-tube manometer contains oil S.G.-0.9and water. The pressure differential between A and B, pA-PB is-5kPa Determine the differential reading,h Oil 0.2 m 0.3 m Water 9-Air flows through a pipe at a rate of 200L/s.The pipe consists...
