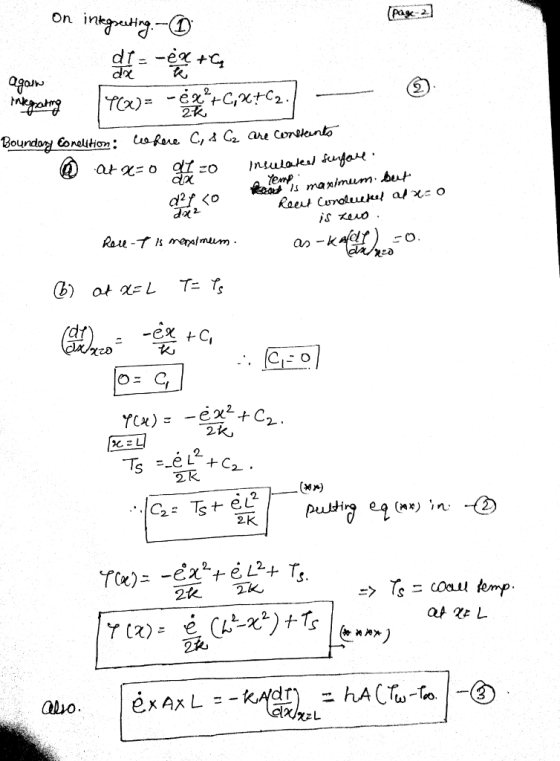

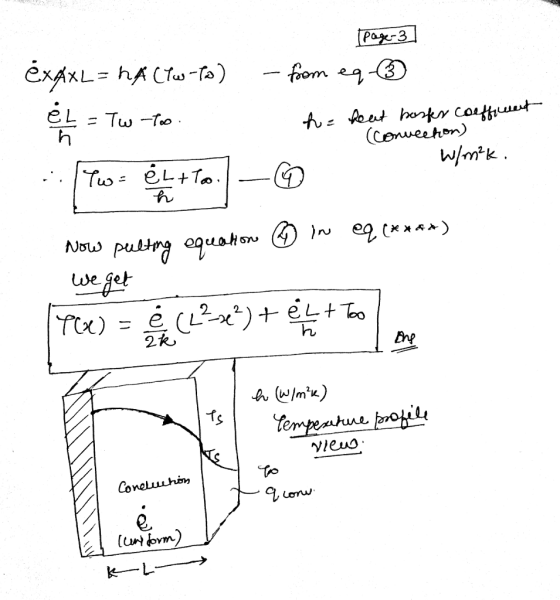

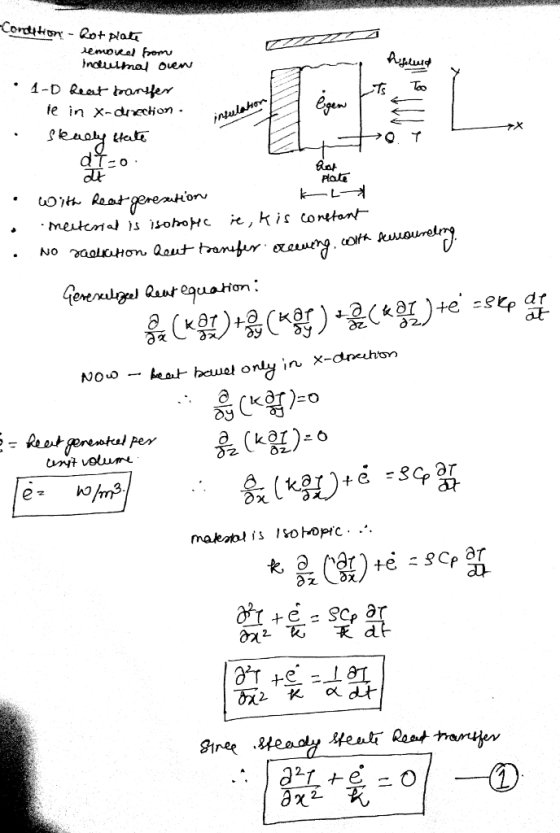

Find the temperature distribution for a hot plate (as a function of x, Ts, Tinf, edot, L, etc.) that is removed from an industrial oven and placed in a room. Assume that: a) 1-D process (X-direction ONLY) b) Steady state c) With energy generation d) Assume k is constant e) No radiation heat X-fer with surroundings
Homework Answers
Add Answer to:
Find the temperature distribution for a hot plate (as a function
of x, Ts, Tinf, edot,...
The interior surface of an oven of internal dimensions 1mx1mx1m has an emissivity of 0.8, and is maintained at a uniform temperature of 500 K. The oven is placed in a very large room where th...
The interior surface of an oven of internal dimensions 1mx1mx1m has an emissivity of 0.8, and is maintained at a uniform temperature of 500 K. The oven is placed in a very large room where the ambient temperature is 300K. On the front wall of the oven is a square opening of dimensions 100mmx 100mm. To reduce the heat loss through the opening, a thin metallic plate is used to cover the opening. The emissivity of the cover plate surface...
9. Find the steady-state temperature distribution in the plate shown below y= x и —D ()...
9. Find the steady-state temperature distribution in the plate shown below y= x и —D () insulated и 3D Т 1/2 1 и 3D 0
9. Find the steady-state temperature distribution in the plate shown below y= x и —D () insulated и 3D Т 1/2 1 и 3D 0
A 50 mm thick steel plate (AISI347) has a uniform heat flux applied to its bottom...
A 50 mm thick steel plate (AISI347) has a uniform heat flux
applied to its bottom surface by a heater. The heater is in contact
with the steel plate, and the interface between the heater and
steel has a contact resistance of 2.0 x 10-4
m2*K/W. The top surface of the plate is exposed to
surrounding air (T = 20oC, h = 10 W/m2*K) and
exchanges radiation with surroundings at Tsur =
10oC. The emissivity of the plate is 0.85....
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A...
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A current is passed through the wire, resulting in a volumetric heat generation of q - 1.5 x 108 W/m3. The convection coefficient is h - 500 W/m2 - K, and the properties of the wire are ρ-8000 kg/m3, Cp-500 J/kg-K, and...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants. The irradiation is fully the material and can be characterized by a uniform volumetric heat generation, W/m3). Assuming 1D steady-state conduction and constant properties. xpressions for the conduction heat fluxes (alx) at the top and bottom surfaces; absorbed by (4 points) (b) Derive an...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m x 2 m. There is a heat generation of ġ(x.y)=6x [W/my], and the thermal conductivity of k=1[W/(m-°C)]. The temperature on the top boundary is given by a piecewise function, f(x), which is defined below. x(4- x²)+10 0<x<1 | x(4- x?) + 20, 1<x<2 The bottom boundary is insulated. The temperatures on left-handed and right-handed boundary are maintained at constants 10[°C] and 20 [°C] as...
4. Find the explicit steady-state temperature distribution in a flat square plate having sides of...
4. Find the explicit steady-state temperature distribution in a flat square plate having sides of unit length if the temperature on the left side is 3ey, while the other sides are kept at zero temperature
4. Find the explicit steady-state temperature distribution in a flat square plate having sides of unit length if the temperature on the left side is 3ey, while the other sides are kept at zero temperature
A mild steel plate that is 1.4 in. thick and cross section 2 ft. x 2...
A mild steel plate that is 1.4 in. thick and cross section 2 ft. x 2 ft. is placed horizontally in the sun. The top surface of the plate is exposed to air at 90°F and the lower surface of the plate is exposed to air with a convective heat transfer coefficient of 3 Btu/h ftF. If the incident solar radiation on the plate is about 400 Btu/h, and the convective heat-transfer coefficient between the top surface and the surrounding...
An important concern in the study of heat transfer is to determine the steady-state temperature d...
An important concern in the study of heat transfer is to determine the steady-state temperature distribution of a plate when temperature around the boundary is known. Assume the plate shown in the figure represents a cross section of a metal beam, with negligible heat flow in the direction perpendicular to the plate. Let A, B, C, and D denote the temperatures at the four interior nodes of the mesh in the figure. The temperature at a node is approximately equal...
Supplemental Problem 2.003 A large plate of thickness 2L is at a uniform temperature of Tỉ-190°C,...
I will rate. Thanks so much
Supplemental Problem 2.003 A large plate of thickness 2L is at a uniform temperature of Tỉ-190°C, when it is suddenly quenched by dipping it in a liquid bath of temperature To Heat transfer to the liquid is characterized by the convection coefficient h. Assume x = 0 corresponds to the midplane of the wall -20°C (a) If h = 100 w/m2, K, what is the heat flux atx = L and t = 0?...
The interior surface of an oven of internal dimensions 1mx1mx1m has an emissivity of 0.8, and is maintained at a uniform temperature of 500 K. The oven is placed in a very large room where the ambient temperature is 300K. On the front wall of the oven is a square opening of dimensions 100mmx 100mm. To reduce the heat loss through the opening, a thin metallic plate is used to cover the opening. The emissivity of the cover plate surface...
9. Find the steady-state temperature distribution in the plate shown below y= x и —D () insulated и 3D Т 1/2 1 и 3D 0
9. Find the steady-state temperature distribution in the plate shown below y= x и —D () insulated и 3D Т 1/2 1 и 3D 0
A 50 mm thick steel plate (AISI347) has a uniform heat flux
applied to its bottom surface by a heater. The heater is in contact
with the steel plate, and the interface between the heater and
steel has a contact resistance of 2.0 x 10-4
m2*K/W. The top surface of the plate is exposed to
surrounding air (T = 20oC, h = 10 W/m2*K) and
exchanges radiation with surroundings at Tsur =
10oC. The emissivity of the plate is 0.85....
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A current is passed through the wire, resulting in a volumetric heat generation of q - 1.5 x 108 W/m3. The convection coefficient is h - 500 W/m2 - K, and the properties of the wire are ρ-8000 kg/m3, Cp-500 J/kg-K, and...
ent material has the thermal conductivity k and thickness L. The temperature the material is of the form: distribution along the x-direction, T(x) in + Bx2 + C, where A, a, B, and C are constants. The irradiation is fully the material and can be characterized by a uniform volumetric heat generation, W/m3). Assuming 1D steady-state conduction and constant properties. xpressions for the conduction heat fluxes (alx) at the top and bottom surfaces; absorbed by (4 points) (b) Derive an...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m x 2 m. There is a heat generation of ġ(x.y)=6x [W/my], and the thermal conductivity of k=1[W/(m-°C)]. The temperature on the top boundary is given by a piecewise function, f(x), which is defined below. x(4- x²)+10 0<x<1 | x(4- x?) + 20, 1<x<2 The bottom boundary is insulated. The temperatures on left-handed and right-handed boundary are maintained at constants 10[°C] and 20 [°C] as...
4. Find the explicit steady-state temperature distribution in a flat square plate having sides of unit length if the temperature on the left side is 3ey, while the other sides are kept at zero temperature
4. Find the explicit steady-state temperature distribution in a flat square plate having sides of unit length if the temperature on the left side is 3ey, while the other sides are kept at zero temperature
A mild steel plate that is 1.4 in. thick and cross section 2 ft. x 2 ft. is placed horizontally in the sun. The top surface of the plate is exposed to air at 90°F and the lower surface of the plate is exposed to air with a convective heat transfer coefficient of 3 Btu/h ftF. If the incident solar radiation on the plate is about 400 Btu/h, and the convective heat-transfer coefficient between the top surface and the surrounding...
An important concern in the study of heat transfer is to determine the steady-state temperature distribution of a plate when temperature around the boundary is known. Assume the plate shown in the figure represents a cross section of a metal beam, with negligible heat flow in the direction perpendicular to the plate. Let A, B, C, and D denote the temperatures at the four interior nodes of the mesh in the figure. The temperature at a node is approximately equal...
I will rate. Thanks so much
Supplemental Problem 2.003 A large plate of thickness 2L is at a uniform temperature of Tỉ-190°C, when it is suddenly quenched by dipping it in a liquid bath of temperature To Heat transfer to the liquid is characterized by the convection coefficient h. Assume x = 0 corresponds to the midplane of the wall -20°C (a) If h = 100 w/m2, K, what is the heat flux atx = L and t = 0?...
