60/120 = 0.5 amps
10/0.5 = 20, so you need 21 to exceed 20 amps.
In theory.
But incandescent lamps have a high current surge when they turn
on. If you turn on all 20 at once, you will get a 40 to 100 amp
surge.
And the amount of current is not know very accurately, it could be
±20%
And 20 amp breakers presented with 21 amps will take a long time to pop, perhaps hours, depending on exact type of breaker.

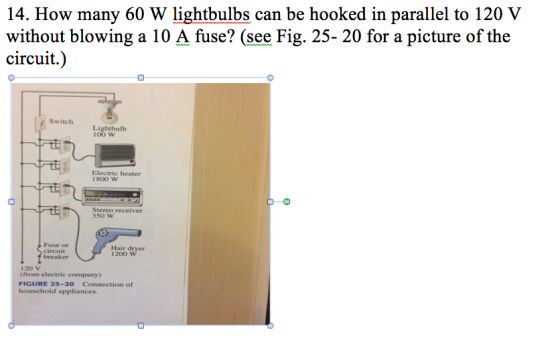

How many 60 W lightbulbs can be hooked in parallel to 120 V without blowing a...
How many 75-W
lightbulbs, connected to 120
V as in the figure, can be used without blowing a
12A fuse?(Figure
1)
How many 75-W lightbulbs, connected to 120 V as in the figure, can be used without blowing a 12A fuse?(Figure 1)
How many 34-W light bulbs, connected to 120 V battery in parallel , can be used without blowing a 12-A fuse?
How many 65-W lightbulbs can be connected in parallel across a potential difference of 75 V before the total current in the circuit exceeds 2.2 A ?
What minimum number of 120 W lightbulbs must be connected in parallel to a single 180 V household circuit to trip a 50.0 A circuit breaker? ______ lightbulbs
1500 W 60 V 20 W 128 W 22 W Fuse Figure 2: Picture of the setup in problem 5. 4.) Which configuration of charge has more electric potential energy? (a.) an equilateral triangle (all sides the same length 1) with positive charge +q at each corner or (b.) a square (all sides have length l) where three corners are occupied by +q charges and the final is occupied by charge Show all work. (pun sort of intended "hint hint*)...
several 60 w light bulbs are connected in parallel to a 120 v source. the circuit has a circuit breaker cb that is placed right after the battery that interrupts the current through itself whenever that current exceeds 9 A. Calculate the largest number of bulbs that can glow together.
1a.All household circuits are wired in parallel. A 1200-W toaster, a 340-W blender, and a 60-W lamp are plugged into the same outlet. (The three devices are in parallel when plugged into the same outlet.) Assume that this is the standard household 120-V circuit with a 15-A fuse. What is the current drawn by the toaster? 1b. What is the current drawn by the blender in the previous problem? 1c. What is the current drawn by the lamp in the...
Two 75.0 W (120 V) lightbulbs are wired in series, then the combination is connected to a 230 V supply. How much power is dissipated by each bulb? Answer in W.
40) See Figure 6.7. Calculate the maximum current IL that can be drawn without blowing 40) the fuse. 2A 20? LOAD Figure 6.7
What minimum number of 45 w lightbulbs must be connected in parallel to a single 210 V household circuit to trip a 23.0 A circuit breaker? lightbulbs Need Help? Read It --/20 Points] DETAILS SERCP11 18.8.P.045. Using the figure below and the fact that it takes 7.7 x 10-12 ) to raise the potential of the inner axon wall to +30 mV from -70 mV and another 4.2 x 10-11 ) to restore the inner wall of the axon to...
