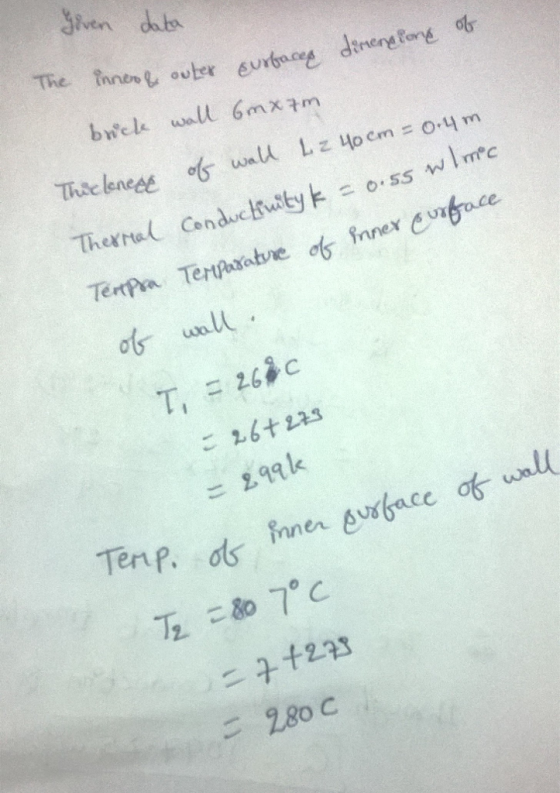

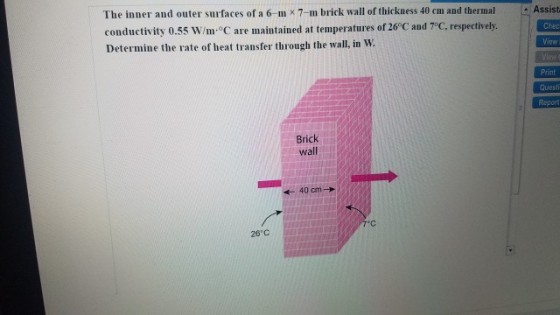

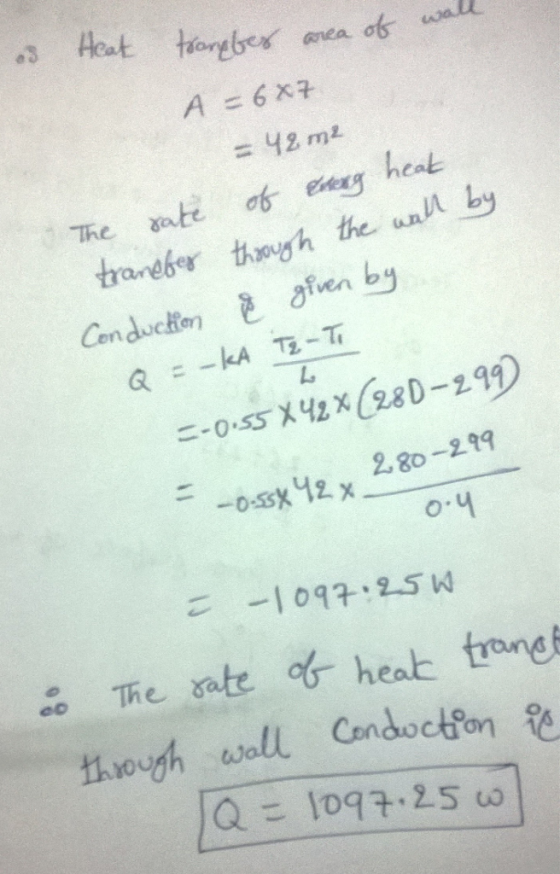

Assist The inner and outer surfaces of a 6-mx7-m brick wall of thickness 40 cm and...
A stainless pipe having an inner wall thickness of 5 cm, an outer wall thickness of...
A stainless pipe having an inner wall thickness of 5 cm, an outer wall thickness of 5.5 cm and a thermal conductivity of 15 W/m˚C transfers steam at 320˚C from one location to another. The pipe is insulated with a 3 cm thick glass wool having a thermal conductivity of 0.038 W/m˚C. Heat is lost to the surroundings by natural convection and radiation at a rate of 15 W/m2˚C and the heat transfer coefficient inside the pipe is 80 W/m2˚C....
Consider a 4 m high, 6 m wide and 0.17 m thick wall whose thermal conductivity is k = 0.8 W/m.oC....
Consider a 4 m high, 6 m wide and 0.17 m thick wall whose thermal conductivity is k = 0.8 W/m.oC. On a certain day, the temperatures of the inner and the outer medium close to the wall are measured to be 14oC and 6oC, respectively. Both inner and outer surfaces are subjected to convection heat transfer. Assume that the convection heat transfer coefficient is the same for the two surfaces h = 5 W/m2 ∙ °C. 1. Draw the...
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall...
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall thickness L are held at constant values of T and T, respectively, where T, <To. The wall material has thermal conductivity that varies linearly according to k = k,(1 +BT), where k, and ß are constants. Draw a schematic of the system. Define and label a coordinate system. State assumptions and boundary conditions. b. Derive the governing differential equation for the heat transport and...
1) The temperature at the inner and outer surfaces of a boiler wall made of 20...
1) The temperature at the inner and outer surfaces of a boiler wall made of 20 mm thick steel and covered with an insulating material of 5 mm thickness are 3000 C and 500 C respectively. If the thermal conductivities of steel and insulating material are 58W/moC and 0.116 W/moC respectively, determine the rate of flow through the boiler wall.
Heat Transfer -A wall 20 cm thick is to be constructed from material that has an...
Heat Transfer
-A wall 20 cm thick is to be constructed from material that has an average thermal conductivity of 2 W/m C. The wall is to be insulated with 5cm material having an average thermal conductivity of 0.5W/m C. Assuming that the inner and outer surface temperatures of the insulated wall are 200 and 20°C, calculate the heat transfer per unit area and the intermediate Temperature between the insulation and the wall.
Consider an ocean-facing room in a high-rise building (L/W of 1). The ocean-facing wall (with window) is...
Consider an ocean-facing room in a high-rise building (L/W of 1). The ocean-facing wall (with window) is 10m by 4 m, contains two windows (3m by 1m, each). Assume the room is located 30 m above the neutral pressure level and the inside air temperature is maintained at 24°C with RH of 50%. Outside air is of 35°C with RH of 60%. Assume the convective heat transfer coefficients on inner side and outer side of the wall and window are 0.5 and...
A cylindrical hot water tank has thermal insulation between an inner and an outer wall of...
A cylindrical hot water tank has thermal insulation between an inner and an outer wall of thin metal sheets, both on the sidewalls and the end walls. The inner diameter and height is 0.95 m and 2.6 m respectively. The insulation thickness is 64 mm and its thermal conductivity is λ = 0.051 [W/mK]. The inner wall consists of 3.0 mm stainless steel with λ = 25 [W/mK], and the outer wall consists of 1.3 mm steel sheet with λ...
(b) The brick wall of a building has dimensions of 4 m by 10 m, and it is 15 cm thick with a coefficient of thermal con...
(b) The brick wall of a building has dimensions of 4 m by 10 m, and it is 15 cm thick with a coefficient of thermal conductivity of 0.8 W.m1ec1. How much heat flows through the wall in a 12-hour period when the average inside and outside temperatures are 20 °C and 5 °C respectively? Will a 2 kW heater operating in the room compensate for the heat loss? Justify your answer. A layer of insulating material of thickness 5...
[6] A 20-cm thick wall of a house made of brick (k = 0.72W/m. C) is...
[6] A 20-cm thick wall of a house made of brick (k = 0.72W/m. C) is subjected to inside air at 22.C with a convection heat-transfer coefficient of 15 W/m2. C. The inner surface temperature of the wall is 18 C and the outside air temperature is -1 °C. Determine the outer surface temperature of the wall and the heat-transfer coefficient at the outer surface.
(25pts) Consider a 1.2-m-high and 2-m-wide glass window whose thickness is 6 mm and thermal conductivity...
(25pts) Consider a 1.2-m-high and 2-m-wide glass window whose thickness is 6 mm and thermal conductivity is k 0.78 W/m °C. Determine the steady rate of heat transfer through this glass window and the temperature of its inner surface for a day during which the room is maintained at 24°C while the temperature of the outdoors is-5°C. Take the convection heat transfer coefficients on the inner and outer surfaces of the window to be h 10 W/m2 °C and h...
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall thickness L are held at constant values of T and T, respectively, where T, <To. The wall material has thermal conductivity that varies linearly according to k = k,(1 +BT), where k, and ß are constants. Draw a schematic of the system. Define and label a coordinate system. State assumptions and boundary conditions. b. Derive the governing differential equation for the heat transport and...
1) The temperature at the inner and outer surfaces of a boiler wall made of 20 mm thick steel and covered with an insulating material of 5 mm thickness are 3000 C and 500 C respectively. If the thermal conductivities of steel and insulating material are 58W/moC and 0.116 W/moC respectively, determine the rate of flow through the boiler wall.
Heat Transfer
-A wall 20 cm thick is to be constructed from material that has an average thermal conductivity of 2 W/m C. The wall is to be insulated with 5cm material having an average thermal conductivity of 0.5W/m C. Assuming that the inner and outer surface temperatures of the insulated wall are 200 and 20°C, calculate the heat transfer per unit area and the intermediate Temperature between the insulation and the wall.
(b) The brick wall of a building has dimensions of 4 m by 10 m, and it is 15 cm thick with a coefficient of thermal conductivity of 0.8 W.m1ec1. How much heat flows through the wall in a 12-hour period when the average inside and outside temperatures are 20 °C and 5 °C respectively? Will a 2 kW heater operating in the room compensate for the heat loss? Justify your answer. A layer of insulating material of thickness 5...
[6] A 20-cm thick wall of a house made of brick (k = 0.72W/m. C) is subjected to inside air at 22.C with a convection heat-transfer coefficient of 15 W/m2. C. The inner surface temperature of the wall is 18 C and the outside air temperature is -1 °C. Determine the outer surface temperature of the wall and the heat-transfer coefficient at the outer surface.
(25pts) Consider a 1.2-m-high and 2-m-wide glass window whose thickness is 6 mm and thermal conductivity is k 0.78 W/m °C. Determine the steady rate of heat transfer through this glass window and the temperature of its inner surface for a day during which the room is maintained at 24°C while the temperature of the outdoors is-5°C. Take the convection heat transfer coefficients on the inner and outer surfaces of the window to be h 10 W/m2 °C and h...
