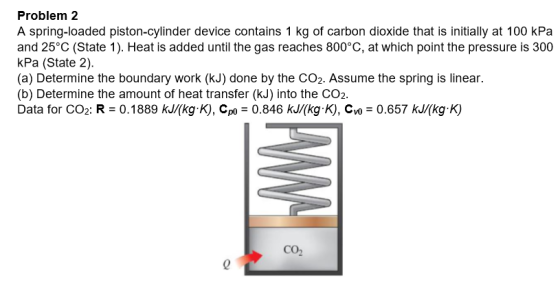

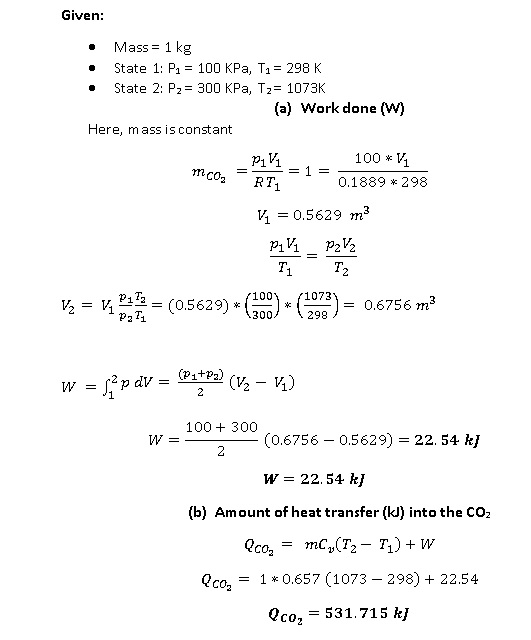

Problem 2 A spring-loaded piston-cylinder device contains 1 kg of carbon dioxide that is initially at...
a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa...
a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa and 300o C. The carbon dioxide is then compressed to 200 kPa following a process of Pv1.25 =constant. Determine (A) the boundary worked needed for the process (B) The temperature after compression . use Ideal gas state and Pressure in absolute pressure ; R=0.1889 KJ/Kg-K
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C...
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C and with a quality of 50%. The device is heated until the pressure of the steam is 500 kPa and the temperature is 200° C. Determine the boundary work done by the steam during this process. 0 kJ Determine the total heat transferred during this process. 0 kJ
2. A vessel with a piston cylinder attached to a spring (see Figure 1) contains CO2...
2. A vessel with a piston cylinder attached to a spring (see Figure 1) contains CO2 with a volume of 500 L, a pressure of 200 kPa and a temperature of 25degree C (State 1). heat is transferred to the vessel and it starts to expand until the piston just touches the stops. The pressure at this state is 400 kPa and the temperature is 500 degree C (State 2). More heat is added to the vessel until the pressure...
A piston-cylinder arrangement contains Carbon dioxide (CO2) initially at 66 kPa and 400 K, undergoes an...
A piston-cylinder arrangement contains Carbon dioxide (CO2) initially at 66 kPa and 400 K, undergoes an expansion process with pressure-volume relationship of PV 1.2 = Costant.to a final temperature of 298 K. Assuming the gas to be an ideal gas, determine the final pressure (kPa), the work done and the heat transfer each in kJ.
A piston-cylinder device containing carbon-dioxide gas undergoes an isobaric process from 103.4 kPa and 300 K...
A piston-cylinder device containing carbon-dioxide gas undergoes an isobaric process from 103.4 kPa and 300 K to 366 K. Determine the work and heat transfer associated with this process in kJ/kg.
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by...
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
Carbon dioxide contained in a piston-cylinder arrangement, initially at 6 bar and 400K, undergoes an expansion...
Carbon dioxide contained in a piston-cylinder arrangement, initially at 6 bar and 400K, undergoes an expansion to a final temperature of 298 k, during which the pressure-volume relationship if pV^1.2 = constant. Assuming the ideal gas model for the CO2, determine the final pressure, in bar, and the work and heat transfer, each in kJ/kg
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
(4 points) Steam A spring-loaded piston cylinder initially contains 4.2 kg of steam at 120° C and with a quality of 50%. The device is heated until the pressure of the steam is 500 kPa and the temperature is 200° C. Determine the boundary work done by the steam during this process. 0 kJ Determine the total heat transferred during this process. 0 kJ
2. A vessel with a piston cylinder attached to a spring (see Figure 1) contains CO2 with a volume of 500 L, a pressure of 200 kPa and a temperature of 25degree C (State 1). heat is transferred to the vessel and it starts to expand until the piston just touches the stops. The pressure at this state is 400 kPa and the temperature is 500 degree C (State 2). More heat is added to the vessel until the pressure...
A piston-cylinder arrangement contains Carbon dioxide (CO2) initially at 66 kPa and 400 K, undergoes an expansion process with pressure-volume relationship of PV 1.2 = Costant.to a final temperature of 298 K. Assuming the gas to be an ideal gas, determine the final pressure (kPa), the work done and the heat transfer each in kJ.
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
