Homework Answers
Calculations for finding out pressure difference is done here.
Note: Please follow the notations and steps used in the answer content for clear understanding.

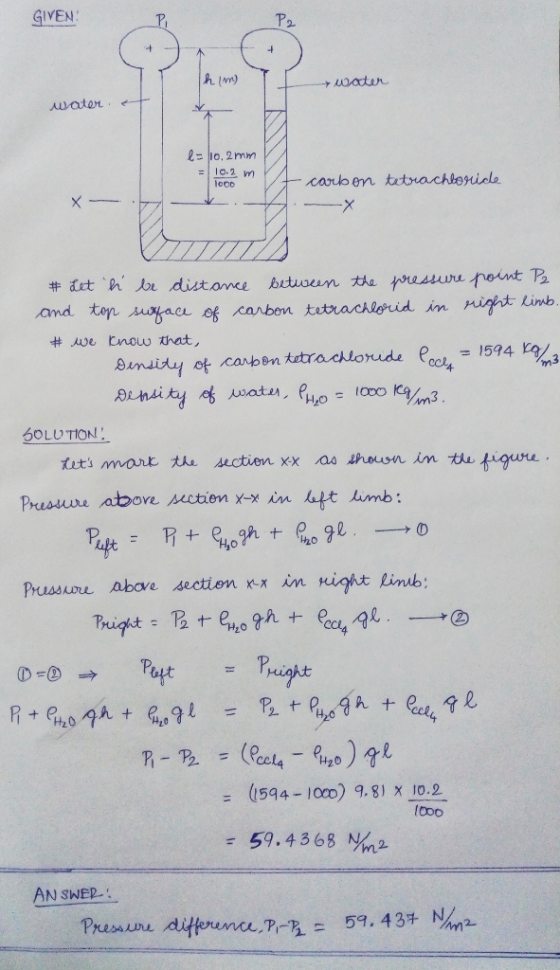

Add Answer to:

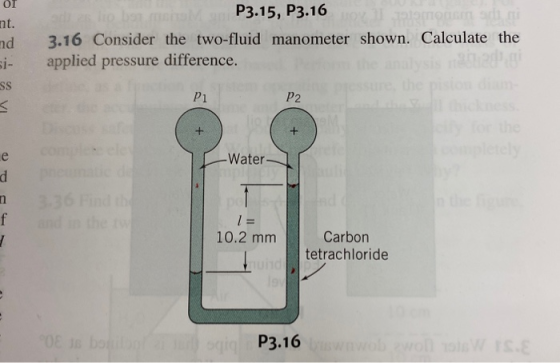

01 P3.15, P3.16 3.16 Consider the two-fluid manometer shown. Calculate the applied pressure difference. P2 -...
Problem 3.16 ;; SG= 1.595 Please clear hind writing 3.15 A partitioned tank as shown contains...
Problem 3.16 ;;
SG= 1.595
Please clear hind writing
3.15 A partitioned tank as shown contains water and mercury. What is the gage pressure in the air trapped in the left chamber? What pres- sure would the air on the left need to be pumped to in order to bring the water and mercury free surfaces level? r tem- ore it 0.85 m Water 3.85 m . 4 m S N. id 2 m Mercury 4 m 3.8 m P3.15,...
Calculate the pressure difference, P.-P2, for the given inverted U-tube manometer. yw =9810N/m Oil (S.G.=0.90) 250...
Calculate the pressure difference, P.-P2, for the given inverted U-tube manometer. yw =9810N/m Oil (S.G.=0.90) 250 mm 1625 mm || water 500 mm
#3 Consider the manometer shown in the figure below, in which a pressure difference PA-PB exists...
#3 Consider the manometer shown in the figure below, in which a pressure difference PA-PB exists between the two sides of the manometer. Four liquids are in the manometer with densities Pa, PB, pc and pp and the heights of the columns of liquids are shown in the figure. Gravity is pointing downward. PAT B SE What is the pressure at level "1" in terms of the density of the green fluid, PA and ha? What is the pressure at...
Fluid mechanics! Please answer and explain (w/ details). Will rate! 3) Consider flow through an industrial...
Fluid mechanics! Please answer
and explain (w/ details). Will rate!
3) Consider flow through an industrial water pipe. A technician needs to measure the pressure drop along the pipe from P2 to Pi (ie. find what P2- Pi is). Instead of using Castor Oil only, the technician accidently fills the manometer with Decane. Use the manometer shown below to calculate the pressure difference between the two locations along the pipe. Express your answer symbolically using the given parameters as well...
Problems in Fluid Pressure and Pressure Force 1. AU-tube manometer with mercury is connected to two...
Problems in Fluid Pressure and Pressure Force 1. AU-tube manometer with mercury is connected to two points on an inclined pipe carrying water. There is an elevation difference of 4ft between the lower and upper points. If the mercury level difference between the two sides of the manometer is 20.3 inches, what is the pressure at the lower point in the pipe, if the pressure at the upper point is 17.5 psi? 2. A vertical semicircular disc of 2 m...
(Thank you in advance) 1. A gas pressure difference is applied to the legs of a...
(Thank you in advance)
1. A gas pressure difference is applied to the legs of a U-tube manometer filled with a liquid with S = 1.5. The manometer reading is 286 mm. Find the pressure difference in kPa. (10 points) Convert the pressure 2.5 psi into units of inches of mercury and feet of water (10 points) 2.
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown...
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown below is at equilibrium. If pressure at point B remains the same while pressure of point A is decreased by 15 kPa, what would be the new final reading of L? SG = 0.9 Water A 100 mm 30° 80 mm 50 mm Mercury
fluid mechanics 3. Static Pressure Two water tanks are connected to one another through a mercury...
fluid mechanics
3. Static Pressure Two water tanks are connected to one another through a mercury (SG 13.6) manometer with inclined tubes as shown. If the pressure difference between the two tanks is 20kPa, calculate the values of a in centimeters (cm) and ? in degrees Note: ?Water 9.81 kN/m3. Water CI 26.8 cm 2a Water Mercury SG 13.6
A mercury manometer is used to measure the pressure difference in the two pipes shown in...
A mercury manometer is used to measure the pressure difference
in the two pipes shown in the figure. A type of oil (specific
weight 45.6 lb/ft3 ) is flowing in A and a different type of oil
(specific weight 56.0 lb/ft3 ) is flowing in B. An air pocket has
formed as shown. What is the pressure in A if the pressure in B is
18.3 psi?
Air bubble 3 in. 5 in. Fuel oil 18 in. SAE 30 oil...
1. (a) A differential manometer is used to measure the drop in pressure between two points...
1. (a) A differential manometer is used to measure the drop in pressure between two points in a process line containing water. The specific gravity of the manometer fluid is 1.05. The measured levels in each arm are shown below. Calculate the pressure drop between points 1 and 2 in dynes om? 12.5 marks (b) The pressure of gas being pulled through a line by vacuum pump is measured with open-end mercury manometer. A reading of -2 inches is obtained....
Problem 3.16 ;;
SG= 1.595
Please clear hind writing
3.15 A partitioned tank as shown contains water and mercury. What is the gage pressure in the air trapped in the left chamber? What pres- sure would the air on the left need to be pumped to in order to bring the water and mercury free surfaces level? r tem- ore it 0.85 m Water 3.85 m . 4 m S N. id 2 m Mercury 4 m 3.8 m P3.15,...
Calculate the pressure difference, P.-P2, for the given inverted U-tube manometer. yw =9810N/m Oil (S.G.=0.90) 250 mm 1625 mm || water 500 mm
#3 Consider the manometer shown in the figure below, in which a pressure difference PA-PB exists between the two sides of the manometer. Four liquids are in the manometer with densities Pa, PB, pc and pp and the heights of the columns of liquids are shown in the figure. Gravity is pointing downward. PAT B SE What is the pressure at level "1" in terms of the density of the green fluid, PA and ha? What is the pressure at...
Fluid mechanics! Please answer
and explain (w/ details). Will rate!
3) Consider flow through an industrial water pipe. A technician needs to measure the pressure drop along the pipe from P2 to Pi (ie. find what P2- Pi is). Instead of using Castor Oil only, the technician accidently fills the manometer with Decane. Use the manometer shown below to calculate the pressure difference between the two locations along the pipe. Express your answer symbolically using the given parameters as well...
Problems in Fluid Pressure and Pressure Force 1. AU-tube manometer with mercury is connected to two points on an inclined pipe carrying water. There is an elevation difference of 4ft between the lower and upper points. If the mercury level difference between the two sides of the manometer is 20.3 inches, what is the pressure at the lower point in the pipe, if the pressure at the upper point is 17.5 psi? 2. A vertical semicircular disc of 2 m...
(Thank you in advance)
1. A gas pressure difference is applied to the legs of a U-tube manometer filled with a liquid with S = 1.5. The manometer reading is 286 mm. Find the pressure difference in kPa. (10 points) Convert the pressure 2.5 psi into units of inches of mercury and feet of water (10 points) 2.
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown below is at equilibrium. If pressure at point B remains the same while pressure of point A is decreased by 15 kPa, what would be the new final reading of L? SG = 0.9 Water A 100 mm 30° 80 mm 50 mm Mercury
fluid mechanics
3. Static Pressure Two water tanks are connected to one another through a mercury (SG 13.6) manometer with inclined tubes as shown. If the pressure difference between the two tanks is 20kPa, calculate the values of a in centimeters (cm) and ? in degrees Note: ?Water 9.81 kN/m3. Water CI 26.8 cm 2a Water Mercury SG 13.6
A mercury manometer is used to measure the pressure difference
in the two pipes shown in the figure. A type of oil (specific
weight 45.6 lb/ft3 ) is flowing in A and a different type of oil
(specific weight 56.0 lb/ft3 ) is flowing in B. An air pocket has
formed as shown. What is the pressure in A if the pressure in B is
18.3 psi?
Air bubble 3 in. 5 in. Fuel oil 18 in. SAE 30 oil...
1. (a) A differential manometer is used to measure the drop in pressure between two points in a process line containing water. The specific gravity of the manometer fluid is 1.05. The measured levels in each arm are shown below. Calculate the pressure drop between points 1 and 2 in dynes om? 12.5 marks (b) The pressure of gas being pulled through a line by vacuum pump is measured with open-end mercury manometer. A reading of -2 inches is obtained....
