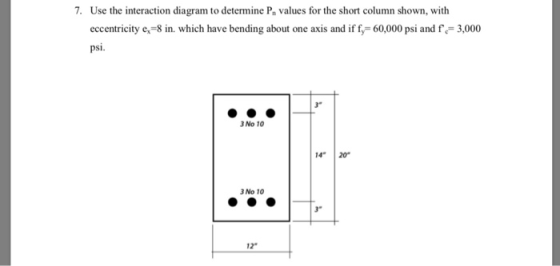

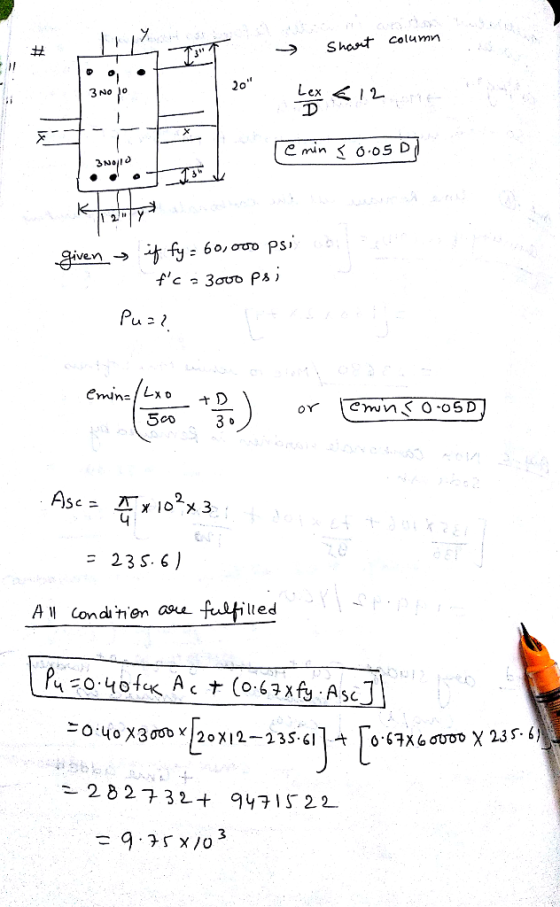

7. Use the interaction diagram to determine P values for the short column shown, with eccentricity...
Show Diagrams Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. A...
Show Diagrams
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. Assume small eccentricity. Check the spiral. Use fc 4000 psi and fy -60,000 psi. 큠.φ @ 2 7-'8 bars 1cover Figure 2.1 Spiral Column
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1...
2.5" h 15" 2.5 Problem 5. Draw the axial load-moment interaction diagram for the column cross-sec...
2.5" h 15" 2.5 Problem 5. Draw the axial load-moment interaction diagram for the column cross-section shown right, and determine the values of фРа the right edge is-0.003. Usefe-4,000 psi and fy- 60,000 psi. h 20
2.5" h 15" 2.5 Problem 5. Draw the axial load-moment interaction diagram for the column cross-section shown right, and determine the values of фРа the right edge is-0.003. Usefe-4,000 psi and fy- 60,000 psi. h 20
1. Construct the Column Interaction Diagram for the given tied column at the following locations 18...
1. Construct the Column Interaction Diagram for the given tied column at the following locations 18 6 12" 6 12" 2 12" 2 12" 2 12 6 12" 18T 6 12" 2 12" 8 ea. No. 10 bars fc 5000 psi f 60,000 psi a) Pure compression. b) Strain of 0.003 on compression face, zero strain in extreme tension steel. c) Balanced strain distribution with 0.003 compressive strain in concrete and yield strain in extreme tension steel. d) Tension controlled...
Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties. Assume a short column. Use f’c = 4000 psi and fy = 60,000 psi for both longitudina...
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
3. The column shown below is subjected to axial load and bending moment causing bending about...
3. The column shown below is subjected to axial load and bending moment causing bending about an axis parallel to that of the rows of bars. What moment would cause the column to fail if the axial load applied simultaneously was 500 kips? Material strengths are fc' = 6000 psi and fy = 60,000 psi. 20" As: 8.0 in2 8.0 in2 Figure: Problem 3
Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load. There is no identified applied moment. Assume that the column is short. Use f’c =4000 psi and fy...
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
Please answer in numerical order. 1. Use ρ-p0.004 and choose (you decide) the number (3 to...
Please answer in numerical order.
1. Use ρ-p0.004 and choose (you decide) the number (3 to 5) and size of steel bars from the attached table. Then proceed to determine (a) the size of the cross-sectional area, (b) the moment capacity of the RC section that you design, and (c) show where is the neutral axis on the diagram (or sketch a new one). 2.5" Given: fe 3,000 psi, fy -60,000 psi Concrete cracking strain 0.003 Initial yielding strain of...
3 in. T 3 - The short 22-in. x 22-in. tied column shown in the following...
3 in. T 3 - The short 22-in. x 22-in. tied column shown in the following figure is to be used to support the following loads and moments: Po = 100 k, PL = 200 k, Mp= 90 ft-k, and Mu. = 200 ft-k. Iff'c = 4000 psi and fy = 60,000 psi, select reinforcing bars to be placed uniformly around all four faces of the column only using appropriate ACI column interaction diagrams. (34 points) 16 in. 22 in....
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by...
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by calculation (hand calculation) of the following points on the diagram and connecting them with straight lines. A) Pure compression, Mn=0 B) No tension in tension steel, fs=0 C) Balance point, Ec= ecu and €5=ey D) Tension controlled section limit, ec= ecu and es= 0.005 E) Pure bending, Pn=0 F) Pure tension, Mn=0 b f'c = 4 ksi fy = 60 ksi b = h...
Reinforced Concrete Design Homework #7 Due: April 8 8.3. The short colume shown in Fig. P3.3 will...
Solve for reinforcements concrete design
Reinforced Concrete Design Homework #7 Due: April 8 8.3. The short colume shown in Fig. P3.3 will be subjected to an eccentric load causing uniaxial bending about the Y axis. Material strengths are,-60 ksi and 4 ksi へー6No. 11 (No. 36) -」3小- (a) Construct the nominal strength interaction curve for this olumn, cakco- lating no fewer than five points, including those corresponding to pure bending, pure axial thrust, and balanced failure. (b) Compare the cakculated...
Show Diagrams
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. Assume small eccentricity. Check the spiral. Use fc 4000 psi and fy -60,000 psi. 큠.φ @ 2 7-'8 bars 1cover Figure 2.1 Spiral Column
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1...
2.5" h 15" 2.5 Problem 5. Draw the axial load-moment interaction diagram for the column cross-section shown right, and determine the values of фРа the right edge is-0.003. Usefe-4,000 psi and fy- 60,000 psi. h 20
2.5" h 15" 2.5 Problem 5. Draw the axial load-moment interaction diagram for the column cross-section shown right, and determine the values of фРа the right edge is-0.003. Usefe-4,000 psi and fy- 60,000 psi. h 20
1. Construct the Column Interaction Diagram for the given tied column at the following locations 18 6 12" 6 12" 2 12" 2 12" 2 12 6 12" 18T 6 12" 2 12" 8 ea. No. 10 bars fc 5000 psi f 60,000 psi a) Pure compression. b) Strain of 0.003 on compression face, zero strain in extreme tension steel. c) Balanced strain distribution with 0.003 compressive strain in concrete and yield strain in extreme tension steel. d) Tension controlled...
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
3. The column shown below is subjected to axial load and bending moment causing bending about an axis parallel to that of the rows of bars. What moment would cause the column to fail if the axial load applied simultaneously was 500 kips? Material strengths are fc' = 6000 psi and fy = 60,000 psi. 20" As: 8.0 in2 8.0 in2 Figure: Problem 3
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
Please answer in numerical order.
1. Use ρ-p0.004 and choose (you decide) the number (3 to 5) and size of steel bars from the attached table. Then proceed to determine (a) the size of the cross-sectional area, (b) the moment capacity of the RC section that you design, and (c) show where is the neutral axis on the diagram (or sketch a new one). 2.5" Given: fe 3,000 psi, fy -60,000 psi Concrete cracking strain 0.003 Initial yielding strain of...
3 in. T 3 - The short 22-in. x 22-in. tied column shown in the following figure is to be used to support the following loads and moments: Po = 100 k, PL = 200 k, Mp= 90 ft-k, and Mu. = 200 ft-k. Iff'c = 4000 psi and fy = 60,000 psi, select reinforcing bars to be placed uniformly around all four faces of the column only using appropriate ACI column interaction diagrams. (34 points) 16 in. 22 in....
Problem 2. Plot (Excel plot) the nominal capacity interaction diagram of the column shown below by calculation (hand calculation) of the following points on the diagram and connecting them with straight lines. A) Pure compression, Mn=0 B) No tension in tension steel, fs=0 C) Balance point, Ec= ecu and €5=ey D) Tension controlled section limit, ec= ecu and es= 0.005 E) Pure bending, Pn=0 F) Pure tension, Mn=0 b f'c = 4 ksi fy = 60 ksi b = h...
Solve for reinforcements concrete design
Reinforced Concrete Design Homework #7 Due: April 8 8.3. The short colume shown in Fig. P3.3 will be subjected to an eccentric load causing uniaxial bending about the Y axis. Material strengths are,-60 ksi and 4 ksi へー6No. 11 (No. 36) -」3小- (a) Construct the nominal strength interaction curve for this olumn, cakco- lating no fewer than five points, including those corresponding to pure bending, pure axial thrust, and balanced failure. (b) Compare the cakculated...
