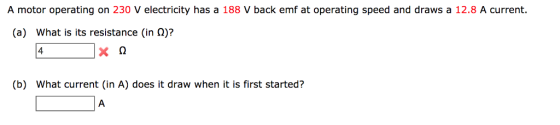

A motor operating on 230 V electricity has a 188 V back emf at operating speed and draws a 12.8 A current. (a) What is its resistance (in ?)? 4 (b) What current (in A) does it draw when it is first started?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A motor operating on 230 V electricity has a 188 V back emf at operating speed...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The motor in a toy car operates on 6.20 V, developing a 3.60 V back emf...

    The motor in a toy car operates on 6.20 V, developing a 3.60 V back emf at normal speed. If it draws 3.20 A at normal speed, what current does it draw when starting?

  • A 120-V, series-wound motor has a field resistance of 4.0  and an armature resistance of...

    A 120-V, series-wound motor has a field resistance of 4.0  and an armature resistance of 2.5  . (a) Determine the current drawn by the motor at the very instant it is switched on, i.e., when it has not started to rotate. (b) When it is operating at nominal speed, a back emf of 85.0 V is generated. How much current is drawn in this case? (c) What is the furnished mechanical power? (d) How much power is dissipated?...

  • Suppose a motor connected to a 135 V source draws 21.5 A when it first starts....

    Suppose a motor connected to a 135 V source draws 21.5 A when it first starts. (a) What is its resistance (in Ω)? Answer in Ω. (b) What current (in A) does it draw at its normal operating speed when it develops a 100 V back emf? Answer in A. (c) What is the voltage output (in V) of a transformer used for rechargeable flashlight batteries, if its primary has 525 turns, its secondary 8 turns, and the input voltage...

  • A 120 V electric motor is running with a current of 3 A. When initially started...

    A 120 V electric motor is running with a current of 3 A. When initially started the motor draws 16 A. What is the back emf of the motor at normal operating speed?

  • 5. A motor has coils with a resistance of 30.0 and operates from a voltage of...

    5. A motor has coils with a resistance of 30.0 and operates from a voltage of 240 V. When the motor is operating at its maximum speed, the back emf is 145 V. Find the current in the coils (a) when the motor is first turned on and (b) when the motor has reached maximum speed. (c) If the current in the motor is 6.0 A at some instant, what is the back emf at that time?

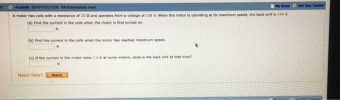

  • A motor has calls with a resistance of 25 ohm and operates from a voltage of...

    A motor has calls with a resistance of 25 ohm and operates from a voltage of 238 V. When the motor is operating at its maximum speed, the back emf is 149 V. Find the current in the calls when the motor is first turned on. A Find the current in the calls when the motor has reached maximum speed. A If the current in the motor were 7.0 A at some instant, what the back emf at that time?...

  • a) A motor has an armature resistance of 5.17 Ohm. If the motor draws 7.04 A...

    a) A motor has an armature resistance of 5.17 Ohm. If the motor draws 7.04 A when running at full speed and connected to a 120 V supply line, how large is the back EMF? b) What would the current in the motor be if the load causes it to run at half speed? Assume that the supply voltage is fixed.

  • Problem 6: A 230-V shunt motor has an armature resistance of 0.05 Ohms and a field resistance of 75 Ohms. The motor draws 7 A of line current while running light at 1120 rpm. The line current at a...

    Problem 6: A 230-V shunt motor has an armature resistance of 0.05 Ohms and a field resistance of 75 Ohms. The motor draws 7 A of line current while running light at 1120 rpm. The line current at a certain load is 46 A. (a) What is the motor speed at this load? (b) At this load, if the field circuit resistance is increased to 100 Ohms, what is the new speed of the motor? Assume linearity between the flux...

  • 3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit...

    3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit resistance of 95 Ω. The motor delivers rated output power at rated voltage when its armature current is 122 A. When the motor is operating at rated voltage, the speed is observed to be 1150 r/min when the machine is loaded such that the armature current is 69.5 A a. Calculate the rated-load speed of this motor In order to protect both the motor...

  • A 230 V, 1000 rpm, 30 A separately excited motor has armature resistance and inductance of...

    A 230 V, 1000 rpm, 30 A separately excited motor has armature resistance and inductance of 0.7 Ω and 50 mH respectively. Motor is controlled in regenerative braking by a chopper operating at 800 Hz from a dc source of 230 V. Assuming continuous conduction a) Calculate duty ratio of chopper for rated torque and the speed of 800 rpm. b) What will be the motor speed for duty ratio of 0.6 and rated motor torque? c) What will be...
