provides background pertinent to
this problem. The magnitudes of the four displacement vectors shown
in the drawing are A = 17.0 m, B = 12.0 m, C = 13.0 m, and D = 24.0
m. Determine the (a) magnitude and (b) direction for the resultant
that occurs when these vectors are added together. Specify the
direction as a positive (counterclockwise) angle from the +x
axis.

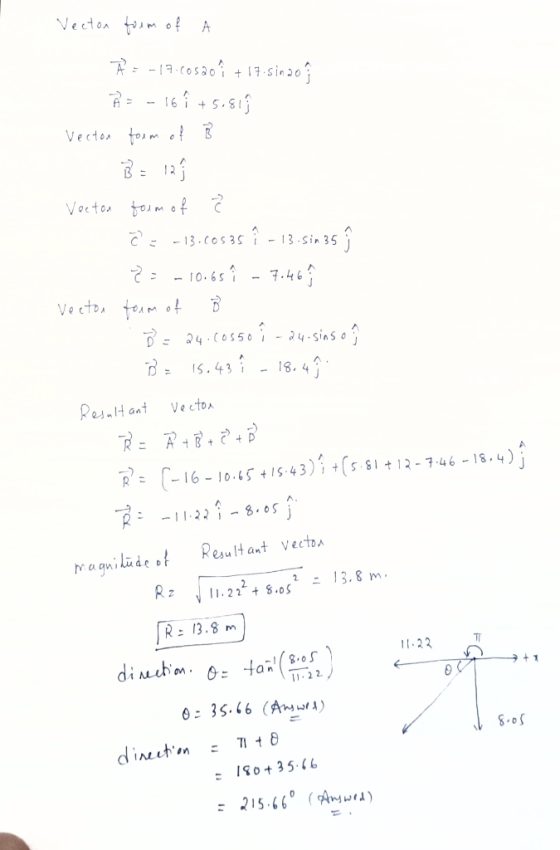

Homework Answers
Add Answer to:
provides background pertinent to
this problem. The magnitudes of the four displacement vectors shown
in the...
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement...
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A = 14.0 m, B = 11.0 m, C = 13.0 m, and D = 23.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. 20.0 35.0 50.0 (a) Number Units (b) Number Units
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement...
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A = 18.0 m, B = 10.0 m, C = 12.0 m, and D = 22.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +xaxis.
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement...
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A 14.0 m, B 10.0 m, C-10.0 m, and D 28.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. ty 20.0 +x 5.050.0 (a) Numbe Units TCSI (b) Number Units
The magnitudes of the four displacement vectors shown in the drawing are A = 15.0 m,...
The magnitudes of the four displacement vectors shown in the
drawing are A = 15.0 m, B = 12.0 m, C =
12.0 m, and D = 24.0 m. Determine the (a)
magnitude and (b) direction for the resultant that
occurs when these vectors are added together. Specify the direction
as a positive (counterclockwise) angle from the +x
axis.
The magnitudes of the four displacement vectors shown in the drawing are A = 17.0 m,...
The magnitudes of the four displacement vectors shown in the drawing are A = 17.0 m, B = 11.0 m, C = 12.0 m, and D = 23.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis.
The magnitudes of the four displacement vectors shown in the drawing are A = 18.0 m,...
The magnitudes of the four
displacement vectors shown in the drawing are A = 18.0 m, B = 11.0
m, C = 13.0 m, and D = 28.0 m. Determine the (a) magnitude and (b)
direction for the resultant that occurs when these vectors are
added together. Specify the direction as a positive
(counterclockwise) angle from the +x axis.
35.0 50.0
Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together.
Multiple-Concept Example 9
provides background pertinent to this problem. The magnitudes of
the four displacement vectors shown in the drawing are A = 15.0 m,
B = 10.0 m, C = 13.0 m, and D = 26.0 m. Determine the (a) magnitude
and (b) direction for the resultant that occurs when these vectors
are added together. Specify the direction as a positive
(counterclockwise) angle from the +x axis.
Chapter 01, Problem 50 Multiple Concept Example 9 23.0 m. Determine the (a) magnitude and (b)...
Chapter 01, Problem 50 Multiple Concept Example 9 23.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A 14.0 m, B = 12.0 m, C = 13.0 m, and D = +y E50.0 35.0 (a) Number Units (b) Number...
Please help Multiple Concept Example 9 provides background pertinent to this problem. The magnitodes of the...
Please help
Multiple Concept Example 9 provides background pertinent to this problem. The magnitodes of the four displacement vectors shown in the drawing are A 18.0 m, B 11.0 m, C- 10.0 m, and D 22.0 magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. ermine the (a) ty +x (a) NumberT12.3 UnitsT m (b) N um 72.5
Oetemne the magnitue se a econal The magnitudes of the four displacement vectors shown in the...
Oetemne the magnitue se a econal The magnitudes of the four displacement vectors shown in the drawing are A-S0 m, a-ії.0 m, C-12.0 m, and 0-24.0 m angle for the resultant that occurs when these vectors are added together magnitude directional angle countercdockwise from the +x-axis ty 35050.0
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A = 14.0 m, B = 11.0 m, C = 13.0 m, and D = 23.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. 20.0 35.0 50.0 (a) Number Units (b) Number Units
Multiple Concept Example 9 provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A 14.0 m, B 10.0 m, C-10.0 m, and D 28.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. ty 20.0 +x 5.050.0 (a) Numbe Units TCSI (b) Number Units
The magnitudes of the four displacement vectors shown in the
drawing are A = 15.0 m, B = 12.0 m, C =
12.0 m, and D = 24.0 m. Determine the (a)
magnitude and (b) direction for the resultant that
occurs when these vectors are added together. Specify the direction
as a positive (counterclockwise) angle from the +x
axis.
The magnitudes of the four
displacement vectors shown in the drawing are A = 18.0 m, B = 11.0
m, C = 13.0 m, and D = 28.0 m. Determine the (a) magnitude and (b)
direction for the resultant that occurs when these vectors are
added together. Specify the direction as a positive
(counterclockwise) angle from the +x axis.
35.0 50.0
Multiple-Concept Example 9
provides background pertinent to this problem. The magnitudes of
the four displacement vectors shown in the drawing are A = 15.0 m,
B = 10.0 m, C = 13.0 m, and D = 26.0 m. Determine the (a) magnitude
and (b) direction for the resultant that occurs when these vectors
are added together. Specify the direction as a positive
(counterclockwise) angle from the +x axis.
Chapter 01, Problem 50 Multiple Concept Example 9 23.0 m. Determine the (a) magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. provides background pertinent to this problem. The magnitudes of the four displacement vectors shown in the drawing are A 14.0 m, B = 12.0 m, C = 13.0 m, and D = +y E50.0 35.0 (a) Number Units (b) Number...
Please help
Multiple Concept Example 9 provides background pertinent to this problem. The magnitodes of the four displacement vectors shown in the drawing are A 18.0 m, B 11.0 m, C- 10.0 m, and D 22.0 magnitude and (b) direction for the resultant that occurs when these vectors are added together. Specify the direction as a positive (counterclockwise) angle from the +x axis. ermine the (a) ty +x (a) NumberT12.3 UnitsT m (b) N um 72.5
Oetemne the magnitue se a econal The magnitudes of the four displacement vectors shown in the drawing are A-S0 m, a-ії.0 m, C-12.0 m, and 0-24.0 m angle for the resultant that occurs when these vectors are added together magnitude directional angle countercdockwise from the +x-axis ty 35050.0
