Question

Clear answer asap please!!!

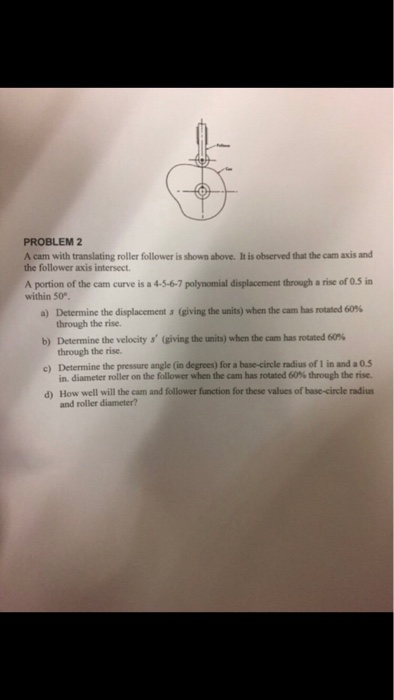

PROBLEM 2 A cam with translating roller follower is shown above. It is observed that the cam axis and the follower axis intersect A portion of the cam curve is a 4-5-6-7 polynomial displacement through a rise of 0.5 in within S0° Determine the displacements (giving the units) when team has rotated 60% a) b) Determine the velocity s' (giving the units) when the n has rotated 60 % e) Determine the pressure angle (in degrees) for a base-circle radius of I in and a 0.5 d) How well will the cam and follower function for these values of base-circle radius through the rise through the rise in, diameter roller on the follower when the cam has rotated 60% through the rise. and roller diameter?

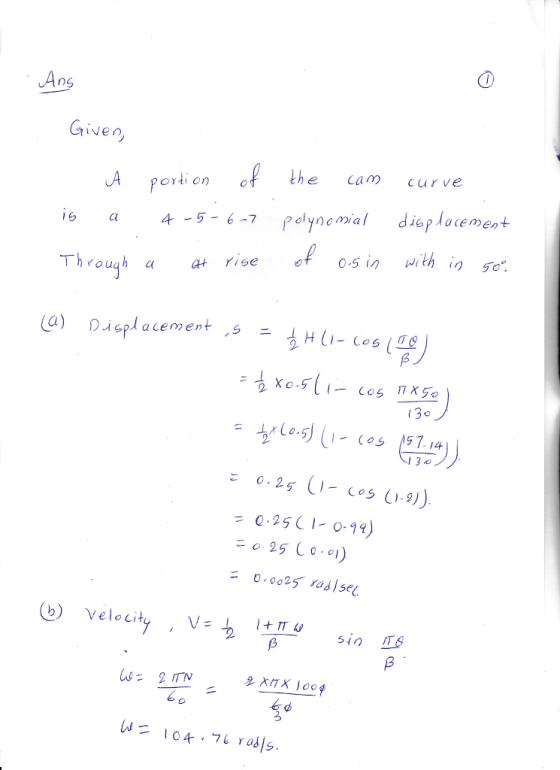

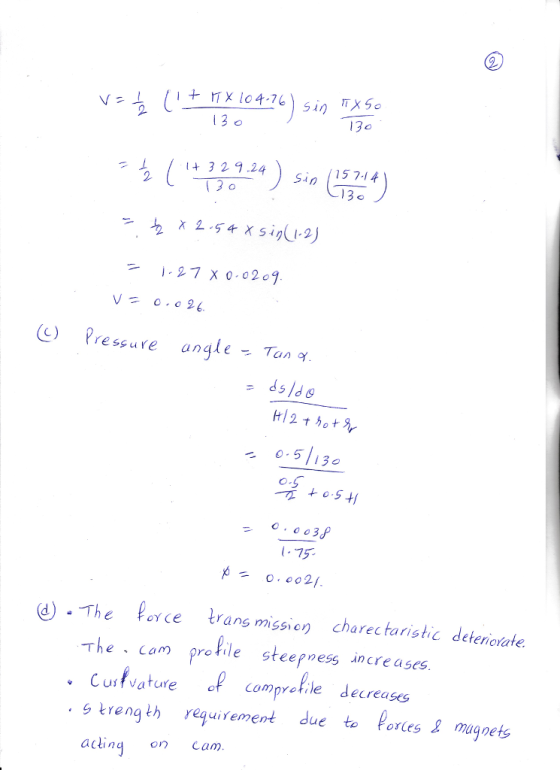

Answer 1
