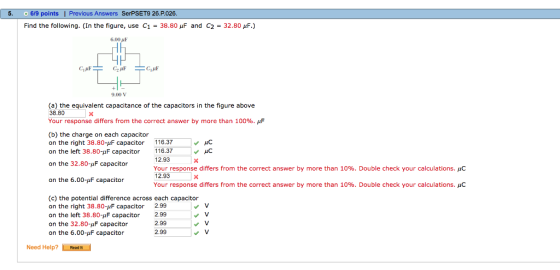

Find the following. (In the figure, use C₁=38.80 μF and C₂=32.80 μF .)


Find the following. (In the figure, use C₁=38.80 μF and C₂=32.80 μF .)

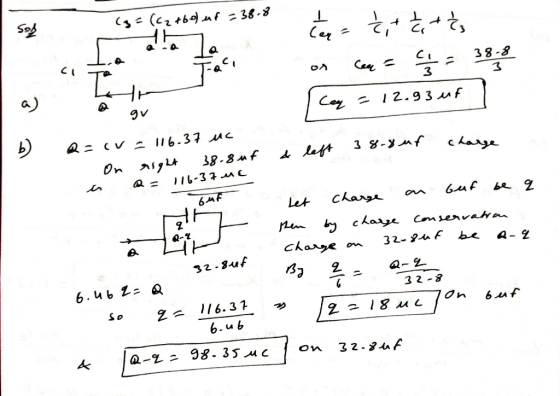

Find the following, (in the figure use C1-32.80 μF and C2-26.80 pF.) 900 v ) the equivalent capacitance of the capacitors in the figure above (b) the charge on each capacitor on the right 32.80 uF capacitor on the left 32.80 μF capacitor on the 26.80 μF capaotor on the 6.00 μF capacitor (c) the potential difference across each capacitor on the right 32.80 μF capacitor on the left 32.80 μF capacitor on the 26.80 μF capacitor on the 6.00...
Suppose that C1 15 μF and C-7 μF Find the equivalent capacitance between terminals z and y for the circuit shown in (Figure 1) Figure 1 of 2> CValue Find the equivalent capacitance between terminals z and y for the circuilt shown in the (Figure Figure 2 of 2P CValue Units
In the figure, let C1 = 4 μF, C2 = 2 μF,
C3 = 5 μF and C4 = 2 μF. Find the equivalent
capacitance between a and b. (Give your answer in
decimal using micro F as unit)
C C2 1 4
For the 555 timer (square wave generator) shown in figure 6, assuming the values Vec . 5 v, C-0.1 μF, C'-0.01 μF, Ra 4.7 ko, Rb-10 ΚΩ, answer the following a8). a. Plot the output waveform at pin3 b. Find the frequency of the output signal c. Plot the waveform at pin6 d. Find the duty Cycle. 8 4 Figure 6 Page 5
For the 555 timer (square wave generator) shown in figure 6, assuming the values Vec . 5...
answer Q3 only

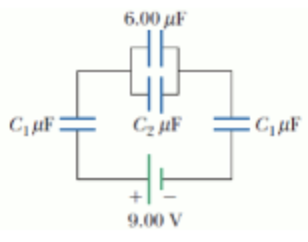

2. Find the following. (In the figure, use G-28.80 μF and C2-22 80mF) 6.00 uF 9.00 v a) the equivalent capacitance of the capacitors in the figure above b) the charge on each capacitor on the right 28.80-uF capacitor on the left 28.80-uF capacitor on the 22.80-uF capacitor on the 6.00-uF capacitor (c) the potential difference across each capacitor on the right 28.80-uF capacitor on the left 28.80-uF capacitor on the 22.80-uF capacitor on the 6.00-uF capacitor...
Four capacitors are connected as shown in the figure below. (C-18.0 μΚ) C 3.00 μF th 20.0 μF Ήτ 6.00 μF (a) Find the equivalent capacitance between points a and b. (b) Calculate the charge on each capacitor, taking ΔVab = 17.0 V. 20.0 μF capacitor 6.00 μF capacitor 3.00 μF capacitor capacitor C HC HC
Consider the figure below. C1 0.300 μF (a) Find the charge stored on each capacitor in the figure shown above (C1 = 18.7 μF, C2 = 8.72 μF, and C3 = 0.300 μF) when a 1.69 V battery is connected to the combination e. (b) What energy is stored in each capacitor? E1 = E2 =
In figure, C, 4 μF G. 2 μF, and C,-4 μΡ. The capacitor network is connected to an applied potential Vab Aner the charges on the capacit s have reached their final values, the charge on G is 38 μ。. what is the applied voltage Vab? (Give your answer in decimal using V as unit) Ci C2
Find the charge on each of the capacitors in the figure belo. 1.00 μF 24.0 V 8.00 μ 4,00 μF 1.0-uF capacitor 5.0-uF capacitor 8.0-uF capacitor 4.0-uF capacitor
In (Figure 1) , C1 = 6.00 μF, C2 =
3.00 μF, andC3 = 5.00 μF. The capacitor
network is connected to an applied potential
Vab. After the charges on the capacitors
have reached their final values, the charge on C2 is
30.0μC.
Figure 1 of 1
A)What is the charge on capacitor C1?
B) What is the charge on capacitor C3?
C) What is the applied voltage
Vab?
