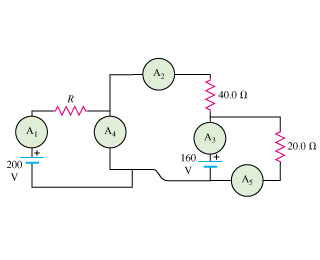

In the circuit shown in the figure (Figure 1) , ammeter A1reads 11.1A and the batteries have no appreciable internal resistance.

In the circuit shown in the figure (Figure 1) , am

Find the readings in the other ammeters.

science physics

Answer 1

Answer #1

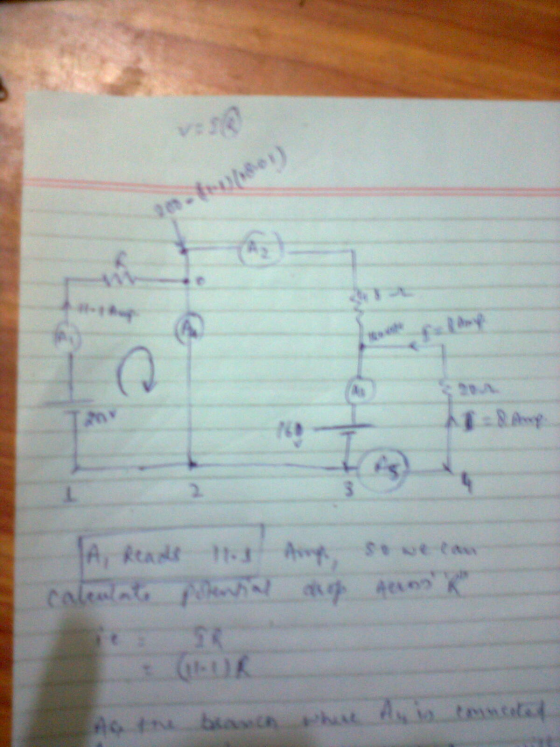

media%2F0ed%2F0ede912e-2e17-47ff-9b35-b8
