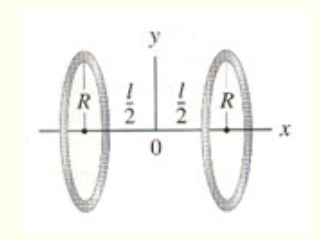

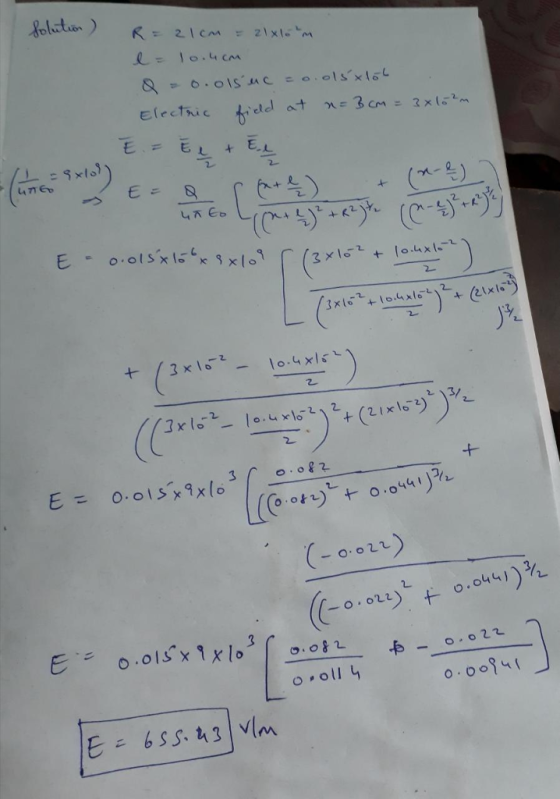

Two parallel circular rings of radius R = 21 cm have their centers on the x axis separated by a distance l = 10.4 cm. If each ring carries a uniformly distributed charge Q = 0.015 ?C, find the electric field E at the point on the x axis at x = 3 cm. Give a positive answer if the electric field points to the right, negative if to the left.

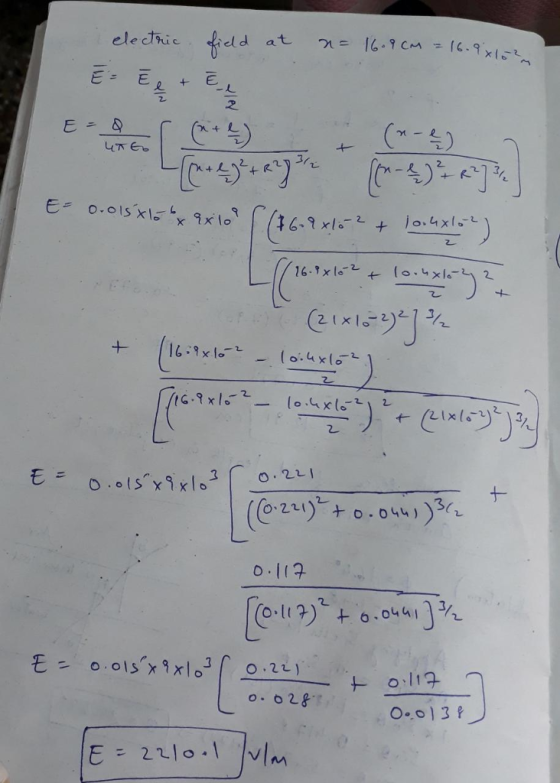

Find the electric field E at x = 16.9
cm.
