Homework Answers
Add Answer to:

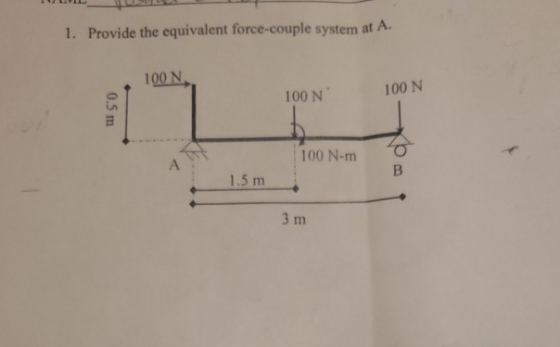

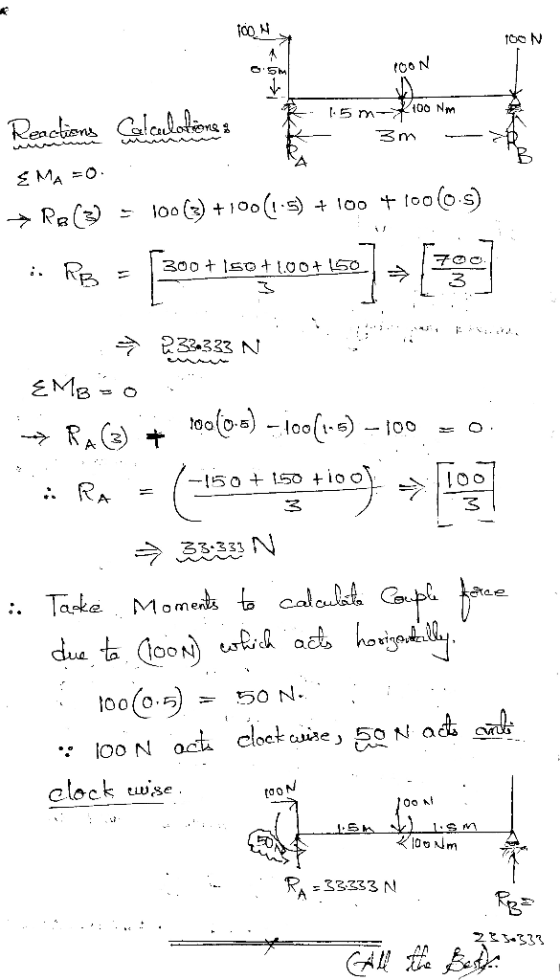

1. Provide the equivalent force-couple system at A 100 N 100 N 100 N 100 N-m...
Exercise 8.5 Replace the system of forces in the figure with an equivalent force-couple system at...
Exercise 8.5 Replace the system of forces in the figure with an equivalent force-couple system at D. All dimensions in mm. 150 N 100 200 E 200 С F 100 D 375 N - B 200 N 200 А 375 N
Replace with an equivalent force-couple system at E. Hint: calculate both Resultant force at E and...
Replace with an equivalent force-couple system at E. Hint: calculate both Resultant force at E and moment at E 1. 300 N 1 mD 0.2 m 200 N B A 0.6 m 0.1 m 4 0.1 m 200 N
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple m...
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
Problem 3 1. Replace the two given forces by an equivalent Force-Couple system at point B...
Problem 3 1. Replace the two given forces by an equivalent Force-Couple system at point B 2- Determine the equivalent resultant moment about AB of the two given forces exerted at point C. 600 N 4A 500 N 150 mm 150 mm 100 mm -300 mm
Replace the loading system (Figure 1) by an equivalent resultant force and couple moment acting at...
Replace the loading system (Figure 1) by an equivalent resultant force and couple moment acting at point 0O. Assume F1= 130 N, F2= 190 N, and Mc= 75 N·m Determine the resultant force. Enter the x, y and Z components of the resultant force separated by commas. Express your answers in newtons to three significant figures. Fr= _______ N Determine the couple moment acting at point 0O. Enter the Xx, Yy and Zz components of the couple moment separated by commas. Express your answers...
Force-couple system
A couple of magnitude M = 54 lb. in and the three forces shown are applied to an angle bracket.(a) Find the equivalent force-couple system (resultant force-couple) located at Point B.(b) Determine the resultant force couple located at Point C.(c) Determine locations, (x,y), where the resultant force-couple system consists only the net force but no resultant moment, i.e = Moment R = 0. Please definecoordinates first.
Determine equivalent force-couple system at A. If Fac-999 N and F-1998 N write both resultant and moment about A in...
Determine equivalent force-couple system at A. If Fac-999 N and F-1998 N write both resultant and moment about A in form of sum of components (xi +y k) Identify coordinates of points A ( в ale D ( E( 3 mi 3 un 1,5 m Set up and solve equations for sums of the forces in each direction a. i + b. Fill in the blanks: R = Set up matrices needed to determine moment about A c. d. Resolve...
THE ANSWERS FOR THE FORCE OF H ARE CORRECT Problem 03.097 - Replace a force-couple system...
THE ANSWERS FOR THE FORCE OF H ARE CORRECT
Problem 03.097 - Replace a force-couple system on a block with an equivalent force-couple system at a given point A 62-lb force F and a 2200-lb in. couple M are applied to corner A of the block shown. Replace the given force-couple system with an equivalent force-couple system at corner H 14 in. ISi 45 in 25 in. 3 in. A Cartesian vector representation of the equivalent force at H is...
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R...
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple Mo. Next, determine the equation for the line of action of the stand-alone resultant force R. 1.1 m 0.30 m J001 0.7 /5.4 kN / m m1.6 m 75 14 kN-m 10.7 kN 7.0 kN0.30 m Answers: Equivalent force-couple system at O R = 8.79 +2.355 kN Mo =T 19.1502 KN·m The equation for the line of action of the stand-alone resultant...
Exercise 8.5 Replace the system of forces in the figure with an equivalent force-couple system at D. All dimensions in mm. 150 N 100 200 E 200 С F 100 D 375 N - B 200 N 200 А 375 N
Replace with an equivalent force-couple system at E. Hint: calculate both Resultant force at E and moment at E 1. 300 N 1 mD 0.2 m 200 N B A 0.6 m 0.1 m 4 0.1 m 200 N
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
Problem 3 1. Replace the two given forces by an equivalent Force-Couple system at point B 2- Determine the equivalent resultant moment about AB of the two given forces exerted at point C. 600 N 4A 500 N 150 mm 150 mm 100 mm -300 mm
Determine equivalent force-couple system at A. If Fac-999 N and F-1998 N write both resultant and moment about A in form of sum of components (xi +y k) Identify coordinates of points A ( в ale D ( E( 3 mi 3 un 1,5 m Set up and solve equations for sums of the forces in each direction a. i + b. Fill in the blanks: R = Set up matrices needed to determine moment about A c. d. Resolve...
THE ANSWERS FOR THE FORCE OF H ARE CORRECT
Problem 03.097 - Replace a force-couple system on a block with an equivalent force-couple system at a given point A 62-lb force F and a 2200-lb in. couple M are applied to corner A of the block shown. Replace the given force-couple system with an equivalent force-couple system at corner H 14 in. ISi 45 in 25 in. 3 in. A Cartesian vector representation of the equivalent force at H is...
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple Mo. Next, determine the equation for the line of action of the stand-alone resultant force R. 1.1 m 0.30 m J001 0.7 /5.4 kN / m m1.6 m 75 14 kN-m 10.7 kN 7.0 kN0.30 m Answers: Equivalent force-couple system at O R = 8.79 +2.355 kN Mo =T 19.1502 KN·m The equation for the line of action of the stand-alone resultant...
