The maximum allowable tensile force in the members of the truss is (Ft) max = 5 kN

Problem 6.26

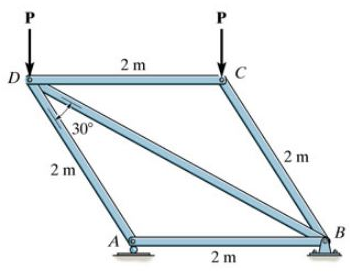

The maximum allowable tensile force in the members of the truss is (Ft) max = 5 kN, and the maximum allowable compressive force is (Fc)max = 3.4 kN. (Figure 1)

Part A

Determine the maximum magnitude P of the two loads that can be applied to the truss. Express your answer to three significant figures and include the appropriate units.

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

✔ Recommended Answer

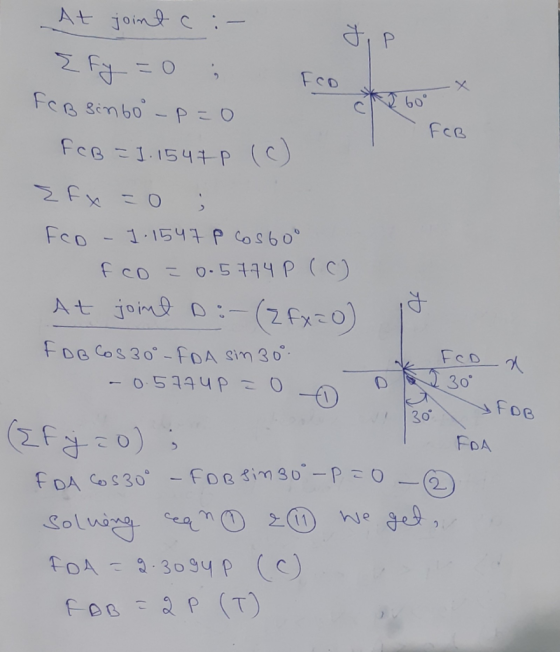

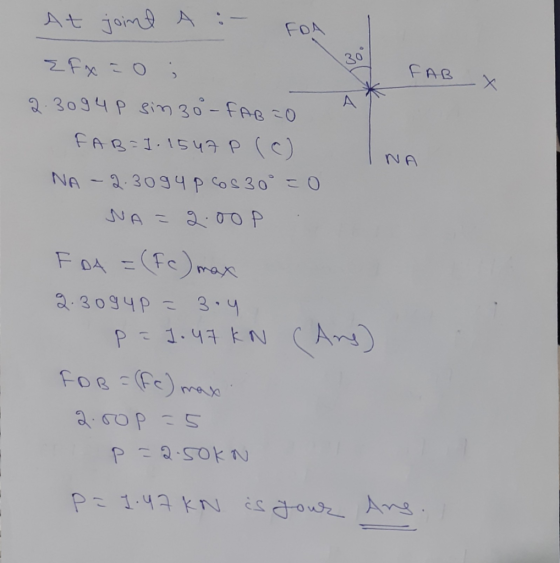

Answer #1
