Homework Answers
Use Raoult's law to solve this problem,
You have to find XS , Xt and T for this
problem
Ys =0.65 (vapor mole fraction of styrene) ;
YT = 0.35 (vapoor mole fraction of toluene)
Xs = liquid mole fraction of styrene ; XT =
liquid mole fraction of toluene
T = temperature for the system
So, you need three equations to solve for 3 unknowns (
XS , Xt and T)
YsPtotal = XsPs
0.65 * 150 mm Hg = XsPs
97.5 / Ps = Xs ---------------
(1)
(1- Ys) Ptotal = (1 - Xs)PT
0.35 * 150 mmHg = (1 -
Xs)PT
52.5 = (1 - Xs)PT ( 1-Xs =
XT)
52.5 / PT = XT ---------------------
(2)
XT + Xs =1
(97.5 / Ps) + (52.5 / PT ) = 1
--------------- (3)
( Ps in mm Hg ,T in oC)
log Ps = 4.21948 - (1525.059) / T - 56.379
----------- (4)
log PT = 4.07827 - (1343.943) / T - 53.773 (For toluene)
--------------- (5)
solve equations 3, 4 & 5 to get Ps ,PT
&T
Now from Ps and PT find Xs and
XT from equations 1 & 2
Add Answer to:

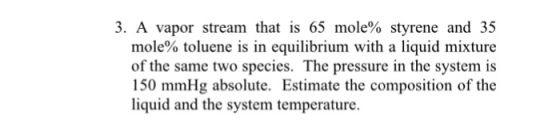

A vapor stream that is 65 mole% styrene and 35 mole% toluene is in equilibrium with...
1. Saturate vapor pressure of benzene and toluene are 9958 Pa and 2973 Pa, respectively. If...
1. Saturate vapor pressure of benzene and toluene are 9958 Pa and 2973 Pa, respectively. If we mix benzene and toluene of the same mass, estimate the partial pressure of benzene and toluene and the total pressure of the vapor above the liquid. 2. Liquid A and liquid B form an ideal solution when they are mixed. There is a cylinder filled with a gaseous mixture in which the mole fraction of A is 0.4 and sealed by piston. If...
please answer clearly 1 (Lecture LOI) 50 m3 of a 35-C gas mixture with composition 98 miole percent air(3), 2 mole p...
please answer clearly
1 (Lecture LOI) 50 m3 of a 35-C gas mixture with composition 98 miole percent air(3), 2 mole percent toluene(1) is contacted with 400 kg of 35°C pure n-decane(2). The vapor-liquid system is allowed to come to equilibrium isothermally at 35 oC at a constant pressure of 1.0 atm. What are the final compositions of the liquid and vapor phases? You should neglect dissolution of air in the liquid, but you must account for evaporation of n-decane....
the liquid and ya the mole fraction in the vapor.) 8. At 90°C, the vapor pressure...
the liquid and ya the mole fraction in the vapor.) 8. At 90°C, the vapor pressure of pure methylbenzene is 400 Torr and that of pure 1,2- dimethylbenzene is 150 Torr. What the composition of a liquid mixture that boils at 90°C when the pressure is 0.50 atm? What is the composition of the vapor produced?
(6) 6. Use the vapor liquid composition curve, below, for a minture of eyelohexane and toluene...
(6) 6. Use the vapor liquid composition curve, below, for a minture of eyelohexane and toluene to ansiver the following questions. a. What is the boiling point of pure 110 toluene? Vapor What is the boiling point of a mixture of 58% cyclohexane and 42% toluene? b. 100 100 c. If a simple distillation is performed on a mixture of 58% cyclohexane and 42% toluene, what is the composition of the vapor that condenses to form the first drop of...
at 80 ° C the vapor pressure of methyl butyrate at 361 mmHg and vapor pressure...
at 80 ° C the vapor pressure of methyl butyrate at 361 mmHg and vapor pressure of ethyl acetate is 833 mmHg. A solution of both exerts a pressure of 700 mmHg. a) Calculate the composition of the liquid and the vapor in equilibrium with it. If said vapor condenses. What is the composition of the liquid obtained? b)What is the vapor pressure of a new mixture?
One mole of benzene (component 1) is mixed with two moles of toluene (component 2). At...
One mole of benzene (component 1) is mixed with two moles of toluene (component 2). At 60 °C the vapor pressures of benzene and toluene are 51.3 and 18.5 kPa, respectively a) As the pressure is reduced, at what pressure will boiling begin? b) What will be the composition of the first bubble of vapor? c) If the pressure is reduced further, at what pressure does the last trace of liquid disappear? d) What is the composition of the last...
5. A mixture of ethanol (e) and toluene (t) in vapor-liquid equilibrium at 50 kPa behaves...
5. A mixture of ethanol (e) and toluene (t) in vapor-liquid equilibrium at 50 kPa behaves according to the following van Laar activity coefficient model: 1.757 1.757 Iny = and Iny, = = Does an azeotrope exist for this system at 50 kPa? If so, at what temperature and composition? If not, how do you know? Hint: because T is unknown, this one will be much easier to solve using an equation- solving program.
Separate and Condense Condensed vapor YB1 = 0.714 The vapor pressure of pure benzene is 750.0...
Separate and Condense Condensed vapor YB1 = 0.714 The vapor pressure of pure benzene is 750.0 torr and the vapor pressure of toluene is 300.0 torr at a certain temperature. You make a solution by pouring "some" benzene with "some" toluene. You then place this solution in a closed container and wait for the vapor to come into equilibrium with the solution. Next, you separate and condense this resulting vapor and find that its mole fraction of benzene is equal...
8.3 A solution of 35 mole % aniline and 65 mole % hexane is cooled from...

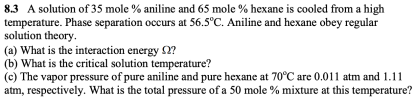

8.3 A solution of 35 mole % aniline and 65 mole % hexane is cooled from a high temperature. Phase separation occurs at 56.5°C. Aniline and hexane obey regular solution theory. (a) What is the interaction energy S2? (b) What is the critical solution temperature? (c) The vapor pressure of pure aniline and pure hexane at 70°C are 0.011 atm and 1.11 atm, respectively. What is the total pressure of a 50 mole % mixture at this temperature?
