Homework Answers

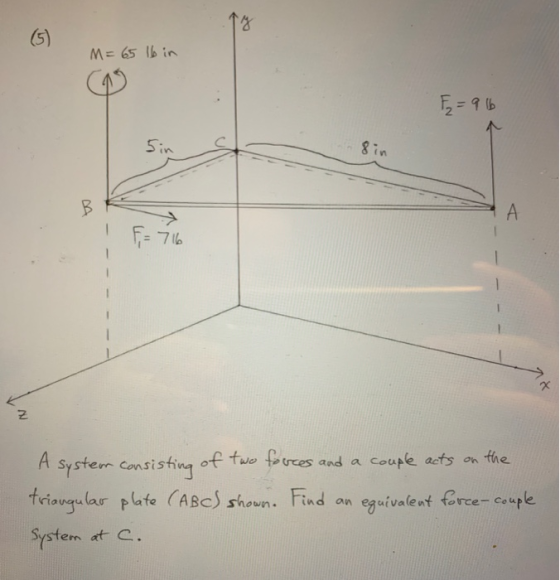

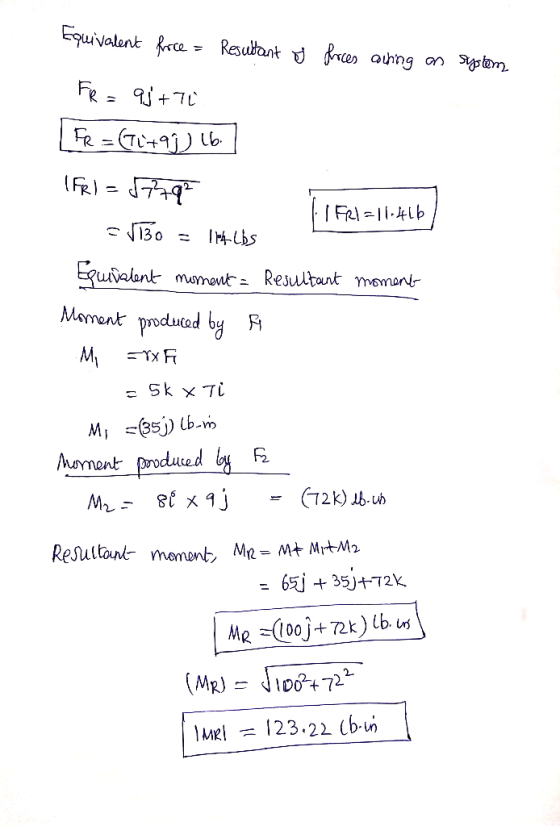

| 10 lb y F L ВІ M 45 lb M = 144 lb.in F =...
| 10 lb y F L ВІ M 45 lb M = 144 lb.in F = 25 lb a = 52 deg L = 14 in d = 6.7 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis.
110 lb L M 45 lb M-180 lb.in F = 26 lb a = 56 deg...
110 lb L M 45 lb M-180 lb.in F = 26 lb a = 56 deg L=12 in d6.5 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measure clockwise from the negative xos. Answer.
please show all work clearly Problem 1 10 lb y F L ВІ M 45 lb...
please show all work clearly
Problem 1 10 lb y F L ВІ M 45 lb M = 194 lb.in F = 36 lb a = 53 deg L = 12 in d = 7.2 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis. Answer:
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb...
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb a = 57 deg L = 11 in d = 6.5 in Replace the shown forces and couples by an equivalent force couple system at point. Specify the magnitude and the direction of the resultant force measured counter-clockwise from the positive y axis. Answer:
Reduction of Forces, Couples and Moments, Pencil Sharpener
While using a pencil sharpener, a student applies the forces and couple shown.(a) Determine the forces exerted at \(\mathrm{B}\) and \(\mathrm{C}\) knowing that these forces and the couple are equivalent to \(\mathrm{a}\)force couple system at A consisting of the force \(\mathbf{R}=(2.6 \mathrm{lb}) \mathrm{i}+R_{yj} -(0.7 \mathrm{lb}) \mathbf{k}\) and the couple \(M_{A}^{R}=M_{x} \mathbf{i}+\)\(\left(1.0 lb* f t\right) j-\left(0.72 l b* f t\right) \mathbf{k} .\)(b) Find the corresponding values of \(R_{y}\) and \(M_{x}\).
Force-couple system
A couple of magnitude M = 54 lb. in and the three forces shown are applied to an angle bracket.(a) Find the equivalent force-couple system (resultant force-couple) located at Point B.(b) Determine the resultant force couple located at Point C.(c) Determine locations, (x,y), where the resultant force-couple system consists only the net force but no resultant moment, i.e = Moment R = 0. Please definecoordinates first.
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
(2)A system of three forces and a couple act on a square plate ADEC as shown. 12 kN 20 kNm F 6 kN Evaluate the statical...
(2)A system of three forces and a couple act on a square plate ADEC as shown. 12 kN 20 kNm F 6 kN Evaluate the statically equivalent system of forces F, F2 and F3 which act along the sides of the equilateral triangle ABC ( These forces are not proportional to the sides of the triangle.) 650 10 kN reaceses F F. 2 m F2 18.4 kN F1 22.48 k N F2 16.78 kN and F 3 20.7 kN F1...
Question 1 As shown in Figure 1, the belt passing over the pulley is subjected to...
Question 1 As shown in Figure 1, the belt passing over the pulley is subjected to two forces F1 and F, each having a magnitude of 40 N. Fl acts in the-k direction. Take θ-45°. a) Replace these forces by an equivalent force and couple at point A. Express the result in vector form in the coordinate system shown. Replace the force-couple at point A by a single resultant force R passing through b) pulley and determine the y and...
he force vector F has a magnitude of F- 340 lb and acts at point A...
he force vector F has a magnitude of F- 340 lb and acts at point A at an angle 0 - 130 with respect to vertical as shown. The force F Determine the tension forces in the two rods in Cartesian components ed by the tension forces paralel to the two rods AC and AB such that the vector equation C F 0 is satisfed. + FAc + FAB satisfied СС BY NC SA 2013 Michael Swanbom Values for dimensions...
| 10 lb y F L ВІ M 45 lb M = 144 lb.in F = 25 lb a = 52 deg L = 14 in d = 6.7 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis.
110 lb L M 45 lb M-180 lb.in F = 26 lb a = 56 deg L=12 in d6.5 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measure clockwise from the negative xos. Answer.
please show all work clearly
Problem 1 10 lb y F L ВІ M 45 lb M = 194 lb.in F = 36 lb a = 53 deg L = 12 in d = 7.2 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis. Answer:
110 lb L 31 M d 45 lb M = 191 lb.in F = 31 lb a = 57 deg L = 11 in d = 6.5 in Replace the shown forces and couples by an equivalent force couple system at point. Specify the magnitude and the direction of the resultant force measured counter-clockwise from the positive y axis. Answer:
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
(2)A system of three forces and a couple act on a square plate ADEC as shown. 12 kN 20 kNm F 6 kN Evaluate the statically equivalent system of forces F, F2 and F3 which act along the sides of the equilateral triangle ABC ( These forces are not proportional to the sides of the triangle.) 650 10 kN reaceses F F. 2 m F2 18.4 kN F1 22.48 k N F2 16.78 kN and F 3 20.7 kN F1...
Question 1 As shown in Figure 1, the belt passing over the pulley is subjected to two forces F1 and F, each having a magnitude of 40 N. Fl acts in the-k direction. Take θ-45°. a) Replace these forces by an equivalent force and couple at point A. Express the result in vector form in the coordinate system shown. Replace the force-couple at point A by a single resultant force R passing through b) pulley and determine the y and...
he force vector F has a magnitude of F- 340 lb and acts at point A at an angle 0 - 130 with respect to vertical as shown. The force F Determine the tension forces in the two rods in Cartesian components ed by the tension forces paralel to the two rods AC and AB such that the vector equation C F 0 is satisfed. + FAc + FAB satisfied СС BY NC SA 2013 Michael Swanbom Values for dimensions...
