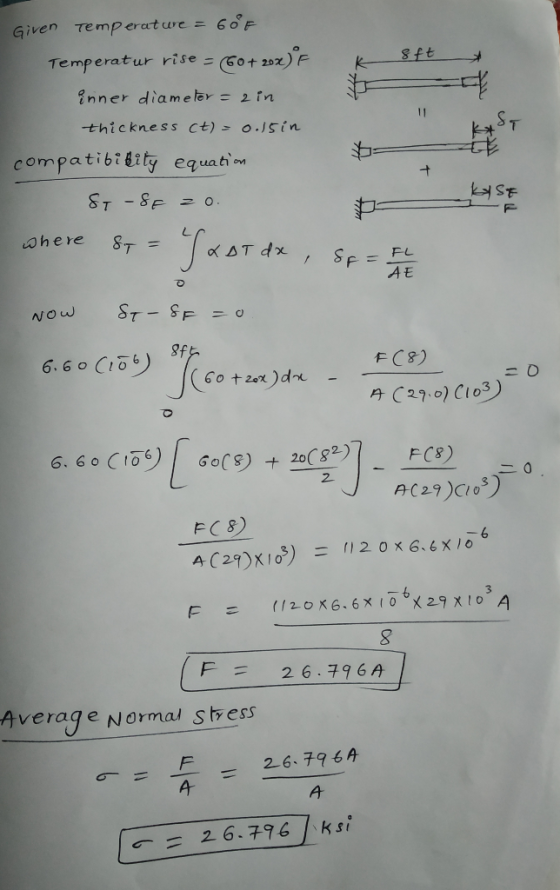

The pipe is made of A-36 steel and is connected to the collars al A and...
Q4:110 points The pipe is made of A992 steel and is connected to the collars at...
Q4:110 points The pipe is made of A992 steel and is connected to the collars at A and B. When the temperature is 15°C, there is no axial load in the pi pipe causes its temperature to rise by AT- (10 +20x) C, where x is in meter, determine the average normal stress in the pipe. The inner diameter of the pipe is 40 mm, the wall thickness is 5 mm. Est-200 GPa ast= 12x10-6/°C pe. If hot gas traveling...
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness...
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness of 0.125 in. If the fluid flowing through it changes the temperature of the pipe to 180°F, determine the thermal stress in the pipe. The pipe was fitted between the walls when the pipe was at 60°F. Also determine if Hooke's law is valid, if it is safe and the axial force the bar exerts on the walls. Assume the wall is rigid. 8...
The assembly consists of two sections of galvanized steel pipe connected together using a reducing coupling...
The assembly consists of two sections of galvanized steel pipe connected together using a reducing coupling at B. The smaller pipe has an outer diameter of 18.75 mm and an inner diameter of 17 mm, whereas the larger pipe has an outer diameter of 25 mm and an inner diameter of 21.5 mm. The pipe is tightly secured to the wall at C. The couple shown is applied to the handles of the wrench. (Figure 1) Part A Determine the...
The thin-walled pipe has an inner diameter of 0.5 in and a thickness of 0.025 in....
The thin-walled pipe has an inner diameter of 0.5 in and a thickness of 0.025 in. Part A If it is subjected to an internal pressure of 572 psi and the axial tension and torsional loadings shown, determine the principal stress at a point on the surface of the pipe. (Figure 1) Enter your answers numerically separated by a comma. AZO If vec 01,02 = ksi Submit Request Answer Figure < 1 of 1 Provide Feedback 200 lb 200 lb...
please solve 7 of 10 The thin walled pipe has an inner diameter of 0.5 in...
please solve
7 of 10 The thin walled pipe has an inner diameter of 0.5 in and a thickness of 0 025 in Review Part A If it is subjected to an internal pressure of 434 pesi and the axial tension and forsional loadings shown, determine the principal stress at a point on the surface of the pipe gure 1) Enter your answers numerically separated by a comma. Figure < 1011 > 30 AED vec RO ? 0,09= Submit Request...
Please answer the following question clearly. Question Part A The steel pipe is filled with ooncrete...
Please answer the following question
clearly.
Question Part A The steel pipe is filled with ooncrete and subjected to a compressive force outer diameter of 80 mm and an inner diameter of 60 mm. E 200 GPa, Ee al stress in the concrete and the steel due to this loading. The pipe has an 24 GPa (Figure 1) Enter your answers, separated by a comma MPa Figure 1 of 1 Submit 80 kN Provide Feedback Next > 500 mm
A steel pipe pile has an OD of 400 mm and a wall thickness of 10 mm. It is made of ASTM A252 Gr. 2 steel, fy ∼ 250 MP a....
A steel pipe pile has an OD of 400 mm and a wall thickness of 10 mm. It is made of ASTM A252 Gr. 2 steel, fy ∼ 250 MP a. The pile is subject to a vertical dead load of 20 kN and a live overturning moment of 95 kN-m in one direction. Determine whether the pile is adequate for the design. Ignore the effects of buckling for axial compression.
The A-36 steel pipe in (Figure 1) has an outer radius of 23 mm and an inner radius of 19 mm.
The A-36 steel pipe in (Figure 1) has an outer radius of 23 mm and an inner radius of 19 mm. Part A If it fits snugly between the fixed walls before it is loaded, determine the reaction at wall A when it is subjected to the load shownPart B If it fits snugly between the fixed walls before it is loaded, determine the reaction at wal C when it is subjected to the load shown.
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
(b) A 2 4 CoMo alloy steel pipe with a radius of 20 mm and a wall thickness of 4 mm contains hot fluid under constant p...
(b) A 2 4 CoMo alloy steel pipe with a radius of 20 mm and a wall thickness of 4 mm contains hot fluid under constant pressure (10 MPa) and constant temperature (700°C). The stress (o) on the pipe wall is given by the equation: σ Prit, where P is pressure, r is radius and t is wall thickness. The creep constants for the alloy steel are in the following table. (i)What is the creep rate of the pipe? (ii)If...
Q4:110 points The pipe is made of A992 steel and is connected to the collars at A and B. When the temperature is 15°C, there is no axial load in the pi pipe causes its temperature to rise by AT- (10 +20x) C, where x is in meter, determine the average normal stress in the pipe. The inner diameter of the pipe is 40 mm, the wall thickness is 5 mm. Est-200 GPa ast= 12x10-6/°C pe. If hot gas traveling...
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness of 0.125 in. If the fluid flowing through it changes the temperature of the pipe to 180°F, determine the thermal stress in the pipe. The pipe was fitted between the walls when the pipe was at 60°F. Also determine if Hooke's law is valid, if it is safe and the axial force the bar exerts on the walls. Assume the wall is rigid. 8...
The assembly consists of two sections of galvanized steel pipe connected together using a reducing coupling at B. The smaller pipe has an outer diameter of 18.75 mm and an inner diameter of 17 mm, whereas the larger pipe has an outer diameter of 25 mm and an inner diameter of 21.5 mm. The pipe is tightly secured to the wall at C. The couple shown is applied to the handles of the wrench. (Figure 1) Part A Determine the...
The thin-walled pipe has an inner diameter of 0.5 in and a thickness of 0.025 in. Part A If it is subjected to an internal pressure of 572 psi and the axial tension and torsional loadings shown, determine the principal stress at a point on the surface of the pipe. (Figure 1) Enter your answers numerically separated by a comma. AZO If vec 01,02 = ksi Submit Request Answer Figure < 1 of 1 Provide Feedback 200 lb 200 lb...
please solve
7 of 10 The thin walled pipe has an inner diameter of 0.5 in and a thickness of 0 025 in Review Part A If it is subjected to an internal pressure of 434 pesi and the axial tension and forsional loadings shown, determine the principal stress at a point on the surface of the pipe gure 1) Enter your answers numerically separated by a comma. Figure < 1011 > 30 AED vec RO ? 0,09= Submit Request...
Please answer the following question
clearly.
Question Part A The steel pipe is filled with ooncrete and subjected to a compressive force outer diameter of 80 mm and an inner diameter of 60 mm. E 200 GPa, Ee al stress in the concrete and the steel due to this loading. The pipe has an 24 GPa (Figure 1) Enter your answers, separated by a comma MPa Figure 1 of 1 Submit 80 kN Provide Feedback Next > 500 mm
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
(b) A 2 4 CoMo alloy steel pipe with a radius of 20 mm and a wall thickness of 4 mm contains hot fluid under constant pressure (10 MPa) and constant temperature (700°C). The stress (o) on the pipe wall is given by the equation: σ Prit, where P is pressure, r is radius and t is wall thickness. The creep constants for the alloy steel are in the following table. (i)What is the creep rate of the pipe? (ii)If...
