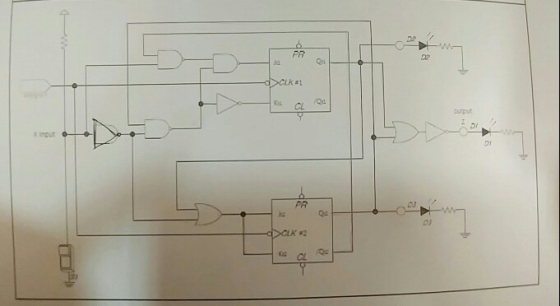

Given a sequential logic circuit
Find the two JK flip-flop's input fuction and output Z

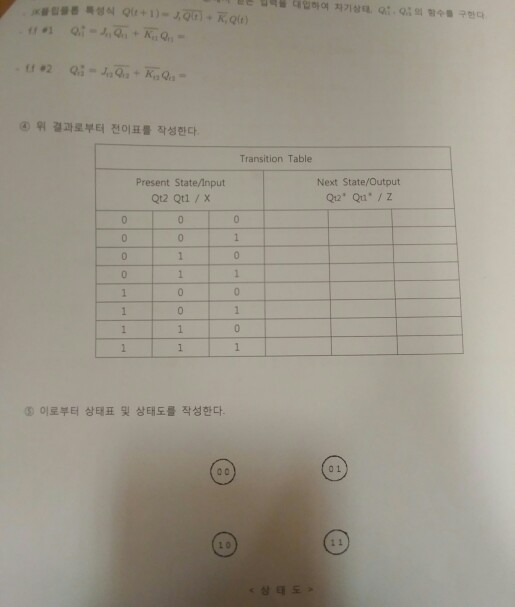

Fill the transition table

| Qt1 | Qt2 | X | J1 | K1 | J2 | K2 | Qt1n | Qt2n | Z |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 |
0 |
1 | 0 | 1 | 1 | 1 | 1 | 0 |
| 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| 0 | 1 | 0 | 0 | 1 | 1 | 1 | 0 | 1 | 1 |
| 0 | 1 | 1 | 1 | 0 | 0 | 0 | 1 | 1 | 0 |
| 1 | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1 | 0 | 1 | 0 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1 | 1 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 1 |
Given a sequential logic circuit Find the two JK flip-flop's input fuction and output Z Fill...
1. A sequential circuit has one JK flip-flop A, one input x, and one output y. The flip-flop input equation and circuit output equation are: (a) Draw the logic diagram of the circuit (b) Tabulate the state table of the circuit (P. S., Input, N. S., Output). (c) Draw the state diagram. (d) Derive the state equation A(t+ 1). (e) Starting from state A 0 in the state diagram, determine the state transitions and output sequence that will be generated...
03: 6 marks) Sequential circuit that has two flip-flops A and B and one input x and a constant 'l'. It consists of a combinatorial logic connected to the JK flip-flops, as shown in Figure below. a. (2 marks) Derive the next state and output equations. b. (2 marks) Derive the state table of the sequential circuit. c. (2 marks) Draw the corresponding state diagram. K ā
A sequential circuit which is designed using JK Flip-Flops is given below. So, analyse (resolve) the given sequential circuit and draw the corresponding state transition diagram. Also, write down required expressions and determine the sequential circuit model type. Qa should be considered MSB and Z is output. X Qb Ja Qal XI Ka Хаа- Jb Qbi -Z Qa- Kb
A sequential circuit composed of two JK Flip-Flops is read and the following input are observed for the two JK Flip-Flops: J1 = x2 K1 = x + 92 J2 = x'q1 K2 = x' +91 z = 91'92 +9192 Use these equations to fill in the following State Transition table. 91*22* 9192 x = 0 x = 1 Your answers will be given in terms as 00 for 0,01 for 1, 10 for 2, and 11 for 3. Note...
ECE 260 HW 7 NAME 1. A sequential circuit has two JK flip-flops A and B, two inputs X and Y, and one output Z. The flip-flop input equations and circuit output equation are: (a) Draw the sequential circuit (b) Derive the state equations for Q and Q (c) Construct the state/output table (d) Draw the state diagram Note, for JK flip-flop: Q1O+KQ Design a sequential circuit with two JK flip-flops A and B and two inputs E and F....
A sequential circuit has two JK flip-flops A and B and one input x. The circuit is described by the following flip-flop input equations: JA= x KA = B JB = x Kb = A' Find the state table and diagram of the circuit
A sequential circuit with 2 JK flip-flops, A and B; 2 inputs, x and y; and 1 output, z is specified by the following next-state and output equations: JA=Bx + B'y' JB = A'x Z= Ax'y' + Bx'y' KA= B’xy' KB = A + xy' Draw the logic diagram of the circuit List the state table for the sequential circuit Draw the corresponding state diagram Derive the next state equation for A and B
A sequential circuit with two flip flops, A and B; one input, x; and one output y, is specified by the following next-state and output equations. B(t+1)=Ax A(t+1)=A'B+Bx'+AB'x a) List the circuit state table and draw the corresponding state diagram. b) Draw the logic diagram of the circuit using only, one D-type and one T-type flip flops, one 2X4 decoder and one 2-input OR gate. The complement of the input variable, x is not available.
The sequential circuit shown below has two flip-flops A and B and one input x. It consists of a combinatorial logic connected to the flip-flops, as shown in the Figure 1. Below. Analyze the sequential circuit below: A J A' K Q lo B 2-to-1 MUX Y J Q 11 S B K CLK Figure 1a. Sequential Circuit a) Derive the next state equations for the sequential circuit above: find expressions for JA and KA and Jb and KB as...
A sequential circuit with two flip flops, A and B; one input, x; and one output y, is specified by the following next-state and output equations: B(t+1) = AX A(t+1) = A’B + BX’ + AB’X y = A’X’ + B’ a) List the circuit state table and draw the corresponding state diagram b) Draw the logic diagram of the circuit using only, one D-type and one T-type flip flops, one 2X4 decoder and one 2-input OR gate. The complement of the input...
