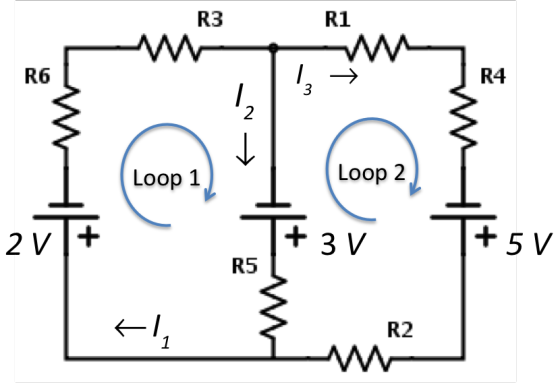

If all of the even-numbered resistors have same value 2, and all of the odd-numbered resistors have same vcalue 99, write the correct (Kirchhoff) equation for Loop 1.
Homework Answers
Add Answer to:
If all of the even-numbered resistors have same value 2, and
all of the odd-numbered resistors...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R2 R1 11 Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for a loop that...
1 Shown in the figure below is an electrical circuit containing three resistors and two batteries....
1
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R 4 12 11 R1 ♡ Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 - Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13 w R3 10 R₂ w 12 R w I Write down the Kirchhoff Junction equation and solve it for I, in terms of 12 and 13. Write the result here: 2 + 13 Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = X Write down the...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA R3 4 10 L w R2 13 Write down the Kirchhoff Junction equation and solve it for I, in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for...
A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 16 Ω, R2 = 35 Ω, R3 = 29 Ω, R4 = 73 Ω, R5 = 89 Ω, and R6 = 31 Ω.
A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 16 Ω, R2 = 35 Ω, R3 = 29 Ω, R4 = 73 Ω, R5 = 89 Ω, and R6 = 31 Ω. The total current going through the circuit is I = 11.5 A. Part (a) Express the equivalent resistance of the combination of R4, R5, and R6. Part (b) Express the equivalent resistance of the combination of R3, R4, Rs and R6. Part (c) Express...
Circuit with Two Batteries and Six Resistors 1 2 3 4 5 6 A circuit is...
Circuit with Two Batteries and Six Resistors 1 2 3 4 5 6 A circuit is constructed with six resistors and two batteries as shown. The battery voltages are V1 18 V and V2 12 V. The I,I I, R positive terminals are indicated witha+ R Sp. R5 sign, The values for the resistors are: R1 = Rs 74 Ω, R2-R6-86 Ω R3-103 Ω, and ,a. VI R4 135 Q. The positive directions for the R4 currents l1, 12 and...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I R3 + 10 R₂ 4 + I I R, L Write down the Kirchhoff Junction equation and solve it for 1, in terms of 12 and 13. Write the result here: [ = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff...
A circuit is constructed with six resistors and two batteries asshown. The battery voltages are...
A circuit is constructed with six resistors and two batteries as shown. The battery voltages are V1 = 18 V and V2 = 12 V. The positive terminals are indicated with a + sign, The values for the resistors are: R1 = R5 = 55 ?, R2 = R6 = 148 ? R3 = 84 ?, and R4 = 76 ?. The positive directions for the currents I1, I2 and I3 are indicated by the directions of the arrows.1)What is...
Unit II Additional Homework Ohm's Law Challenge-For the circuit shown below: VB-10 V, R1 = 100...
Unit II Additional Homework Ohm's Law Challenge-For the circuit shown below: VB-10 V, R1 = 100 ?, R2-200 ?, R3 300 ?, R4-400 ?, R5-500 ?, R6-600 ?. Calculate the voltage across and the current 6) through each of the resistors in the table. R, /?2 Voltage Current R1 R2 R3 R5 R6 ?s 3 /n 6
6. Six resistors R1=5.00 92, R2=8.00 92, R3=14.0 2, R4=10.0 22, R5=10.0 12, and R6=3.00 22...
6. Six resistors R1=5.00 92, R2=8.00 92, R3=14.0 2, R4=10.0 22, R5=10.0 12, and R6=3.00 22 are mounted as shown in the figure. The voltage of the battery is V= 18 Volts. What is the power dissipated in the R3 resistor? Watts 'Ro WWW R3 R,
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R2 R1 11 Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for a loop that...
1
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R 4 12 11 R1 ♡ Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 - Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13 w R3 10 R₂ w 12 R w I Write down the Kirchhoff Junction equation and solve it for I, in terms of 12 and 13. Write the result here: 2 + 13 Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = X Write down the...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA R3 4 10 L w R2 13 Write down the Kirchhoff Junction equation and solve it for I, in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for...
Circuit with Two Batteries and Six Resistors 1 2 3 4 5 6 A circuit is constructed with six resistors and two batteries as shown. The battery voltages are V1 18 V and V2 12 V. The I,I I, R positive terminals are indicated witha+ R Sp. R5 sign, The values for the resistors are: R1 = Rs 74 Ω, R2-R6-86 Ω R3-103 Ω, and ,a. VI R4 135 Q. The positive directions for the R4 currents l1, 12 and...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I R3 + 10 R₂ 4 + I I R, L Write down the Kirchhoff Junction equation and solve it for 1, in terms of 12 and 13. Write the result here: [ = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff...
Unit II Additional Homework Ohm's Law Challenge-For the circuit shown below: VB-10 V, R1 = 100 ?, R2-200 ?, R3 300 ?, R4-400 ?, R5-500 ?, R6-600 ?. Calculate the voltage across and the current 6) through each of the resistors in the table. R, /?2 Voltage Current R1 R2 R3 R5 R6 ?s 3 /n 6
6. Six resistors R1=5.00 92, R2=8.00 92, R3=14.0 2, R4=10.0 22, R5=10.0 12, and R6=3.00 22 are mounted as shown in the figure. The voltage of the battery is V= 18 Volts. What is the power dissipated in the R3 resistor? Watts 'Ro WWW R3 R,
