3-13. For the circuit of Problem 3-9 (Figure P3-9), assume that the op-amp bias and offset para m...
3-13 please

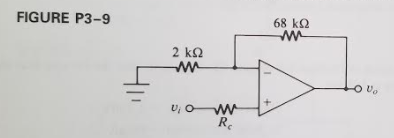

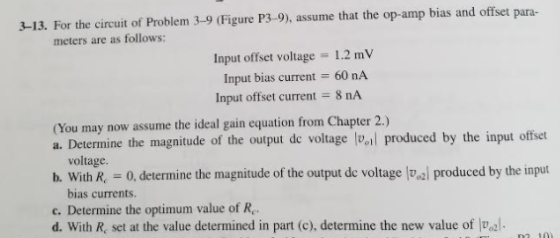

3-13. For the circuit of Problem 3-9 (Figure P3-9), assume that the op-amp bias and offset para meters are as follows: Input offset voltage 1.2 mV Input bias current-60 nA Input offset current 8 nA a. Determine the magnitude of the output de voltage al produced, by the input offiset b. With Rc 0, determine the magnitude of the output de voltage al produced by the inp (You may now assume the ideal gain equation from Chapter 2...
Figure 1: RC Circuit RL Circuit 22 kΩ Figure 2: square V in V in square 100 kHz C1 1 nF 100 mH Ta...
please help
Figure 1: RC Circuit RL Circuit 22 kΩ Figure 2: square V in V in square 100 kHz C1 1 nF 100 mH Tasks 300 Hz 1. (Pre-Lab Homework) Derive natural response voltage equation for RC circuit. 2. (Pre-Lab Homework) Derive step response voltage equation for RC circuit. 3. For V , use Arbitrary Function Generator with Square function, Frequency = 100kHz, Amplitude 1V, offset = 0.5V, Select your circuit components as R-1 kΩ and C-1nF. As Equation...
Determine Av for the following circuit. +15 V Rc C 2.2 k 22 kΩ Ci Boc 90 β-100 R2 4.7 kΩ 1.0 k12 ...
Determine Av for the following circuit. +15 V Rc C 2.2 k 22 kΩ Ci Boc 90 β-100 R2 4.7 kΩ 1.0 k12 AS Determine Ap of the emitter-follower in the figure below. Assume (beta 175) Vce +10 V 18 kn Ci 2N3904 I V rms C2 10 pF 1.0kΩ 10kn Fint eo r gure below (beta 250) Cc +10 V Rc 2.2kD Ri 2N3904 okn 100 pF R 2k010kn
Determine Av for the following circuit. +15 V Rc C...
An RC circuit consists of a 54.6 kΩ resistor and a 4.87 μF capacitor. What is...
An RC circuit consists of a 54.6 kΩ resistor and a 4.87 μF capacitor. What is the time constant for this circuit? (Assume 3 significant digits and time measured in seconds.)
For a charging capacitor in an RC circuit with R = 100 kΩ and C =...
For a charging capacitor in an RC circuit with R = 100 kΩ and C = 1 µF, and in series with a battery with emf E = 12 V, (a) how long does it take for the capacitor to charge up to 80% of its final charge? (b) What is the current in the circuit at that point in time?
An RC-Charging Circuit is composed of a two 50 kΩ resistors in series and two 200...
An RC-Charging Circuit is composed of a two 50 kΩ resistors in series and two 200 µF capacitors in series connected to a power supply capable of outputting 25 V. What is the total voltage across the capacitors after t = 20s?
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the...
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the current i in the circuit by making a succession of appropriate source transformations Express your answer to three significant figures and include the appropriate units i,Value Units Submit Request Answer Figure 1 of 1 Part B Work back through the circuit to find the magnitude of the power developed by the 120 V source Express your answer to three significant figures and include the...
In an RC series circuit, V = 24.0 V, resistance R = 10.0 KΩ, and capacitance...
In an RC series circuit, V = 24.0 V, resistance R = 10.0 KΩ, and capacitance C = 2200 μF. All the elements are in series and the capacitor charges gradually to its final charge Calculate the maximum charge stored in the capacitor g) Calculate the initial electric current in the circuit.
The 1 mA. V, ls -VE -15 15 V, in the following differential amplifier circuit, Vcc parameters are given as β, 100, VBE# 0.7 V, pr-25 mV, K.-100 V. transistor Rc-10 kΩ For: RE-150 Ω Rc Rc REE-200...
The 1 mA. V, ls -VE -15 15 V, in the following differential amplifier circuit, Vcc parameters are given as β, 100, VBE# 0.7 V, pr-25 mV, K.-100 V. transistor Rc-10 kΩ For: RE-150 Ω Rc Rc REE-200 kΩ a) What is the input differential resistance, Rid b) What is the overall voltage gain vV? You c) What is input common mode resistance, d) What is the worst case common mode gain that appear across the two input terminals? (4...
+9 V 10 kΩ 10 kΩ Rsig 50Ω 0.5 mA 7 si in For alpha - 0.99 and assuming r, is very large, find Rn ...
+9 V 10 kΩ 10 kΩ Rsig 50Ω 0.5 mA 7 si in For alpha - 0.99 and assuming r, is very large, find Rn O 101.8 ohms O 51.3 ohms ○ 5.18 kohms O 51.8 ohms
+9 V 10 kΩ 10 kΩ Rsig 50Ω 0.5 mA 7 si in For alpha - 0.99 and assuming r, is very large, find Rn O 101.8 ohms O 51.3 ohms ○ 5.18 kohms O 51.8 ohms
3-13 please
3-13. For the circuit of Problem 3-9 (Figure P3-9), assume that the op-amp bias and offset para meters are as follows: Input offset voltage 1.2 mV Input bias current-60 nA Input offset current 8 nA a. Determine the magnitude of the output de voltage al produced, by the input offiset b. With Rc 0, determine the magnitude of the output de voltage al produced by the inp (You may now assume the ideal gain equation from Chapter 2...
please help
Figure 1: RC Circuit RL Circuit 22 kΩ Figure 2: square V in V in square 100 kHz C1 1 nF 100 mH Tasks 300 Hz 1. (Pre-Lab Homework) Derive natural response voltage equation for RC circuit. 2. (Pre-Lab Homework) Derive step response voltage equation for RC circuit. 3. For V , use Arbitrary Function Generator with Square function, Frequency = 100kHz, Amplitude 1V, offset = 0.5V, Select your circuit components as R-1 kΩ and C-1nF. As Equation...
Determine Av for the following circuit. +15 V Rc C 2.2 k 22 kΩ Ci Boc 90 β-100 R2 4.7 kΩ 1.0 k12 AS Determine Ap of the emitter-follower in the figure below. Assume (beta 175) Vce +10 V 18 kn Ci 2N3904 I V rms C2 10 pF 1.0kΩ 10kn Fint eo r gure below (beta 250) Cc +10 V Rc 2.2kD Ri 2N3904 okn 100 pF R 2k010kn
Determine Av for the following circuit. +15 V Rc C...
Constants Part A Consider the circuit shown in (Figure 1). Suppose that 9 kΩ Find the current i in the circuit by making a succession of appropriate source transformations Express your answer to three significant figures and include the appropriate units i,Value Units Submit Request Answer Figure 1 of 1 Part B Work back through the circuit to find the magnitude of the power developed by the 120 V source Express your answer to three significant figures and include the...
The 1 mA. V, ls -VE -15 15 V, in the following differential amplifier circuit, Vcc parameters are given as β, 100, VBE# 0.7 V, pr-25 mV, K.-100 V. transistor Rc-10 kΩ For: RE-150 Ω Rc Rc REE-200 kΩ a) What is the input differential resistance, Rid b) What is the overall voltage gain vV? You c) What is input common mode resistance, d) What is the worst case common mode gain that appear across the two input terminals? (4...
+9 V 10 kΩ 10 kΩ Rsig 50Ω 0.5 mA 7 si in For alpha - 0.99 and assuming r, is very large, find Rn O 101.8 ohms O 51.3 ohms ○ 5.18 kohms O 51.8 ohms
+9 V 10 kΩ 10 kΩ Rsig 50Ω 0.5 mA 7 si in For alpha - 0.99 and assuming r, is very large, find Rn O 101.8 ohms O 51.3 ohms ○ 5.18 kohms O 51.8 ohms
