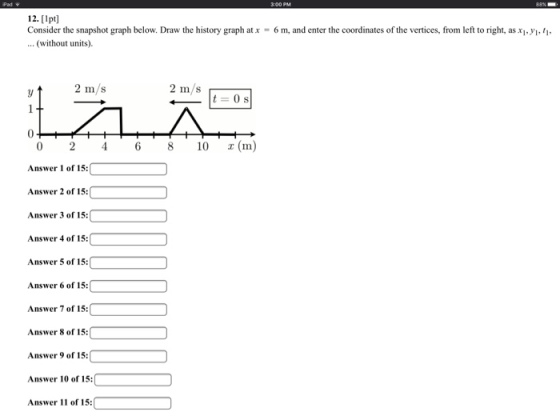

Consider the snapshot graph below. Draw the history graph at x = 6 m, and enter...

Question

Question

science physics

Answer 1

Answer #1

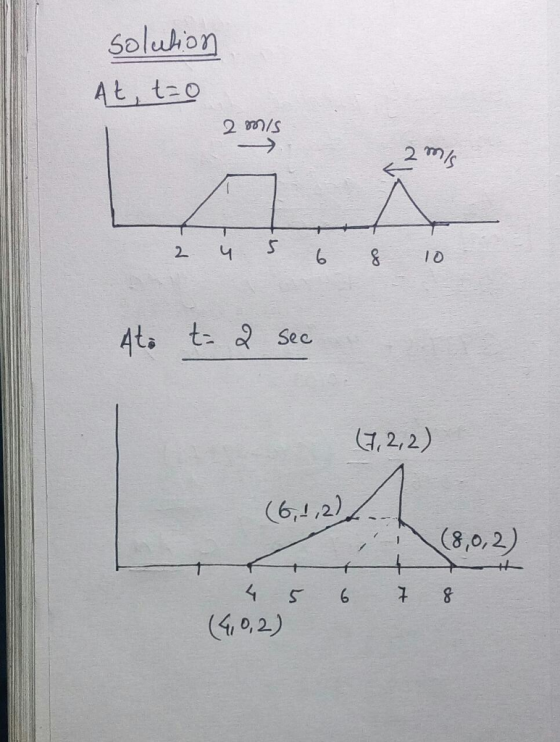

Soluhon At to 2 4 6 8 ID See (6,4 ,2) (8,0,2) S68 (4, 0,2)

Answer 2

Similar Homework Help Questions

The figure below shows a history graph at (x)-2 m of a wave moving to the...

The figure below shows a history graph at (x)-2 m of a wave moving to the right at 1 m/s Draw a snapshot graph of the wave at t-1 y (cm) -2-2 3/45 6 1- Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (A) (B)Draw a neat snapshot graph with correct units and labels
The figure below shows a history graph at x-2 m of a wave moving to the...

The figure below shows a history graph at x-2 m of a wave moving to the right at 1 m/s. Draw a snapshot graph of the wave at t-1s. y (cm) t (s) -2-12 3/4 5 6 (A) Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (B) Draw a neat snapshot graph with correct units and labels.
The figure below shows a history graph at x=2 m of a wave moving to the...

The figure below shows a history graph at x=2 m of a wave moving to the right at 1 m/s. Draw a snapshot graph of the wave at t=1 s. (A) Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (B) Draw a neat snapshot graph with correct units and labels. y (cm) . t (s) ㄒㄧ -2-2 3/4 5 6 1-

y(cm) 1) Snapshots Make History. A snapshot graph of a wave at t 2 s is...

y(cm) 1) Snapshots Make History. A snapshot graph of a wave at t 2 s is shown to the right. If the wave travels at 1 m/s to the left, draw the history graph for this wave at x 3 m from t = 0 s to t 6 s. Your solution must contain at least 3 sketches of snapshot graphs at different times. 1 m/s x (m) 1 2 3 4 5 6 7 -1
The snapshot graph at t=1 s and the history graph at x=1 cm of a wave...

The snapshot graph at t=1 s and the history graph at x=1 cm of a wave are shown below (snapshot on left, history on right). What are the amplitude, frequency, and speed of the wave? Amplitude = cm Frequency = Hz Speed = cm/s What is the equation of this wave, expressed as y=f(x,y)? Express the coefficients of the x and t terms as decimals (i.e. don’t use π in your equation, use 3.14159...), and ignore units....
(1 point) The snapshot graph at t = 3 s and the history graph at x...

(1 point) The snapshot graph at t = 3 s and the history graph at x = 3 cm of a wave are shown below (snapshot on left, history on right). y(cn) y(cn) ---- 2 --- ---2- 2 / 3 x(c ----21 a. What are the amplitude, frequency, and speed of the wave? Amplitude = cm Frequency = Speed = cm/s b. What is the equation of this wave, expressed as y = f(x,y)? Express the coefficients of the x...

(1 point) The snapshot graph at t = 1 s and the history graph at x...

(1 point) The snapshot graph at t = 1 s and the history graph at x = 2 cm of a wave are shown below (snapshot on left, history on right). y(cn) y(cn) 1-21 --21 - - - -1 1 --- --- -- 1- 1 3 x(cn I-----1 1-- - -- ---- 2 -- - a. What are the amplitude, frequency, and speed of the wave? Amplitude = 2.5 cm Frequency = 0.5 Hz Speed = cm/s b. What is...
PHYS 1201, Mastery Tasks. Ol PHYS 1201, Mastery Task 01-2 Below is a history graph for...

PHYS 1201, Mastery Tasks. Ol PHYS 1201, Mastery Task 01-2 Below is a history graph for the pointl m. The wave causing this motion is moving to the right at 2 m's. 2 D (cm) The 2 -2 1 23 4 5 7 8 t(s) -2 Draw a snapshot graph for this wave at t- 2 s PHYS 1201, Mastery Tasks, O1 PHYS 1201, Mastery Task 01-2 Below is a history graph for the point x --I m. The wave...
3. [lpt] Consider the wave pulses shown in snapshot graphs i-iv below. Each pulse has a...

3. [lpt] Consider the wave pulses shown in snapshot graphs i-iv below. Each pulse has a time, absolute phase speed, and travel direction given below it. R) -3 -2 -1 1 23 45 6 7 X (n) 2 s, 1 m/s -3-2 -1 1 23 45 6 7 x (m) t1.5 , 2 m/s- iv) -1 -32 -1 1 23 45 6 7 x Cn) 1-4s, 1 m/s → -3 -2 -1 0 12 3 4 5 6 7 x...

(Figure 1) shows a history graph at x = 0 m of a wave moving to...

(Figure 1) shows a history graph at x = 0 m of a wave moving to the right at 1 m/s. What is the snapshot graph of this wave at t = 0 s ? Item 8 What is the snapshot graph of this wave att 0 s? Constants|Periodic Table cm (Figure 1) shows a history graph at at 1 m/s. 0 m of a wave moving to the right x(m) 2-12 34 5 6 cm x(m) -6-5-4 13-2/1 y...
