A 5 kW, 230 V, d.c shunt motor is operating at rated condition with 82% efficiency. Power drawn form the supply and the total loss are respectively.

engineering Electrical-Engineering

Answer 1

✔ Recommended Answer

Answer #1

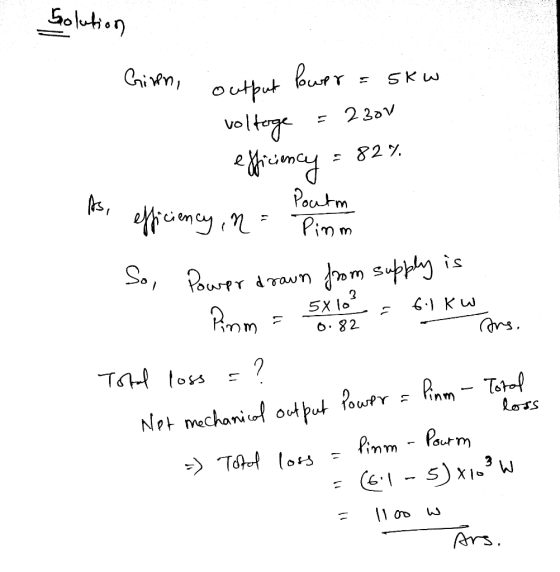

Solution Given, output Power = 5kw voltage = 220v efficiency = 82% B, efficiency in = Poum en So, Power drawn from supply is

Answer 2

Similar Homework Help Questions

3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit...

3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit resistance of 95 Ω. The motor delivers rated output power at rated voltage when its armature current is 122 A. When the motor is operating at rated voltage, the speed is observed to be 1150 r/min when the machine is loaded such that the armature current is 69.5 A a. Calculate the rated-load speed of this motor In order to protect both the motor...
Show all working 1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating...

Show all working 1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating at a speed of 320 rpm. Then the developed useful torque is 2. A 4 pole, lap wound d.c. motor drawing an armature current of 20 A has 360 conductors. If the flux per pole is 0.015 Wb then the gross torque developed by the armature of motor is 3. A 220 V, d.c. motor draws an armature current of 20 A. Its armature...
1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating at a speed...

1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating at a speed of 320 rpm. Then the developed useful torque is a.210.647 N-m b.215.547 N-m c.219.484 N-m d.None of these 2. A 4 pole, lap wound d.c. motor drawing an armature current of 20 A has 360 conductors. If the flux per pole is 0.015 Wb then the gross torque developed by the armature of motor is a.10.23 N-m b.15.56 N-m c.17.17 N-m d.19.08 N-m 3....

5 J13- The armature resistance of a 30-kW, 460-V shunt Motor is 0.12. Its shunt field...

5 J13- The armature resistance of a 30-kW, 460-V shunt Motor is 0.12. Its shunt field resistance is 12012. Find the power developed at rated load. 25 EE T (12pt) Arial TTT
A) The input current to a 220 V, short-shunt compound motor at no load is 6 A. The shunt- field c...

a) The input current to a 220 V, short-shunt compound motor at no load is 6 A. The shunt- field circuit resistance is 220 Ω; the armature resistance is 0.112, and the series-field resistance is 0.1 Ω, what is the stray power loss ? (b) Assume the input rating of the motor in Part (a) to be 66 A at 220 V with a no-load speed of 1000 rpm. If the stray power loss varies as the counter-electromotive force and...
Q3) A 20 kW compound generator works on full load with terminal voltage of 230 V....

Q3) A 20 kW compound generator works on full load with terminal voltage of 230 V. The armature, series and shunt field resistances are 0.1, 0.05 and 115 ohm respectively. Calculate: a) The generated e.m.f , if connected short shunt. b) The generated e.m.f, if connected long shunt. c) If the machine is connect short shunt, the iron and friction losses at rated power equal to 850 W. calculate the mechanical efficiency, electrical efficiency and commercial efficiency.

QUESTION 1 A) (10 marks) A 10 kW, 250 V DC self-excited shunt generator, with an...

QUESTION 1 A) (10 marks) A 10 kW, 250 V DC self-excited shunt generator, with an armature resistance of 0.1 ohm, is delivering 80 % of rated power to the mains at rated voltage when being run at 1000 r.p.m. (revolutions per minute). The field circuit resistance is 220 ohms. The brush contact drop is 0.5 V and rotational (mechanical) losses are 750 W Calculate The induced voltage The electromagnetic torque developed The shaft torque The overall efficiency B) (15...
Problem 3: DC machine A shunt DC motor rated at V,'. 300 V, with field resistance...

Problem 3: DC machine A shunt DC motor rated at V,'. 300 V, with field resistance of Rf 600 0, armature 0.2 , resistance of R, 30.5 A (total current) when rated-load at n, consumes 916.8 rpm. Armature rotational loss (consisting of fan, friction and core loss (consisting of field resistance, armature a) Find Prot (rotational load), Pshaft and efficiency at rated load. - Assume that the rotational loss is constant and P,aft is now 50% in the case of...
A 208 V shunt motor is rated at 5 HP and 1000 rpm. At rated output...

A 208 V shunt motor is rated at 5 HP and 1000 rpm. At rated output it draws 28 A of line current. The total armature circuit resistance is 0.5 12. The field resistance is 102 12. Find the armature current.

A d.c 220 V, shunt motor has an armature resistance of 1 Ω and a field...

A d.c 220 V, shunt motor has an armature resistance of 1 Ω and a field circuit resistance of 150 Ω. While running steadily from 220 V supply, its back emf is found to be 209 V. The motor is drawing a line current of:
