A collimated Gaussian light beam is focused to a spot by a lens. The diameter (2w)...

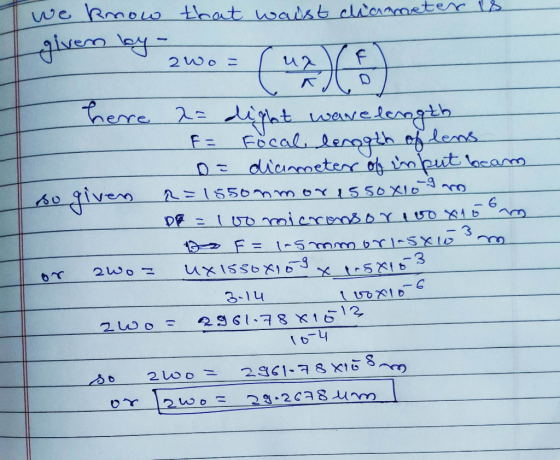

A collimated Gaussian light beam is focused to a spot by a lens. The diameter (2w) of the input beam is 100 microns. What is the diameter of the waist (2wo) of the focused spot if the wavelength of the light is 1550 nm and the focal length of the lens is 1.5 mm?
Homework Answers
Add Answer to:
A collimated
Gaussian light beam is focused to a spot by a lens. The diameter
(2w)...
13.7. The Gaussian beam of a HeNe laser ( 632.8 nm) is focused by a lens of focal length 0.35 m, ...
13.7. The Gaussian beam of a HeNe laser ( 632.8 nm) is focused by a lens of focal length 0.35 m, as shown in the figure belovw. Wou 0.5mm 02 z 0.35 m The spot size of the incident beam w 0.5mm and i lens. Determine the spot size and location of the focused beam. s located at z, 0.35 m from the
13.7. The Gaussian beam of a HeNe laser ( 632.8 nm) is focused by a lens of...
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radiu...
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radius of 5 mm, an average power of 1 Watt, and a wavelength of 1 шт. We wish to choose a lens that will focus this beam as tightly as possible, subject to the constraint that the depth of focus must be at least 1 mm. a) What focal length lens should we choose? (Assume an ideal thin lens with no aberrations.) b)What...
Help Consider a "collimated" beam, that is R(z 0)utted into a lens and focused onto a...
Help
Consider a "collimated" beam, that is R(z 0)utted into a lens and focused onto a photodetector as shown in Figure P.2. Note: Do not assume that d f |a) (5 points) What is the complex Gaussian beam parameter, qi, just before the lens in terms of diameter of the lens, D, and 2? b) (10 points) What is the ABCD law matrix that relates qu to q2 at the photodetector? c) (10 points) Using ABCD law matrix from part...
a collimated laser beam with a divergence of 4.1 milliradians is incident on a lens of...
a collimated laser beam with a divergence of 4.1 milliradians is incident on a lens of focal length 250mm. Calculate the spot size of laser light at the focal point of the lens
P3.4. The spot size is clearly extremely important in determining the power density of a focused ...
P3.4. The spot size is clearly extremely important in determining the power density of a focused laser beam, an important determi- nant of how it may be used in surgery. However, there is a basic limitation on how small a spot one can achieve with a given wavelength laser beam, ; a given diameter laser beam (D); and a lens with focal length, f. This smallest spot sizc is given by: where d is the diameter of the focused laser...

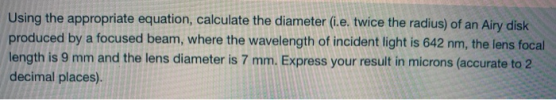

Using the appropriate equation, calculate the diameter (i.e. twice the radius) of an Airy disk produced...
Using the appropriate equation, calculate the diameter (i.e. twice the radius) of an Airy disk produced by a focused beam, where the wavelength of incident light is 642 nm, the lens focal length is 9 mm and the lens diameter is 7 mm. Express your result in microns (accurate to 2 decimal places)
3. A micro lens focuses on a laser beam of diameter D = 1 mm to...
3. A micro lens focuses on a laser beam of diameter D = 1 mm to a tiny spot of radius wF. The wavelength of the laser beam is 800 nm and f of the micro lens is 1.25 mm. Find wf. Assume the laser beam fills the micro lens. a) 637 nm b)1274 nm c)637 microns d) 1274 microns e) none of these
A collimated beam of laser light is incident on a set of three lenses in air....
A collimated beam of laser light is incident on a set of three lenses in air. The first lens is diverging (fi<0) while the second and third lenses are converging (f2>0, f;>0). The first and second lenses are separated by a distance d12, while the second and third lenses are separated by a distance d23. The system is designed to take the collimated beam of laser light expand it (lens 1), recollimate it (lens 2), and then focus it to...
(optical engr) In a Fraunhofer diffraction experiment, a collimated light beam falls normally on ...
(optical engr) In a Fraunhofer diffraction experiment, a collimated light beam falls normally on a slit 0.2 mm wide. A thin lens placed just behind the slit focuses the diffracted light on a screen located at the focal plane of the lens (f = 300 cm). The distance between the 1st and 2nd minimum of the diffraction fringe pattern is 0.885 cm. A. What is the wavelength (lambda) of the incident light beam? B. If repeating this experiment using a...
A 3 mW red ( = 670 nm) laser pointer produces a 2 mm diameter spot...
A 3 mW red ( = 670 nm) laser pointer produces a 2 mm diameter spot on a screen. a) If we place a f = 1cm lens before the screen, and the radius of curvature of the wavefront reaching the lens is 2 m, find the waist of the focused light. b) The intensity of the light at the center of the beam is given by Imax= 2P/πw2(in W/m2). Calculate the maximum intensity at the focal point. c) If...
13.7. The Gaussian beam of a HeNe laser ( 632.8 nm) is focused by a lens of focal length 0.35 m, as shown in the figure belovw. Wou 0.5mm 02 z 0.35 m The spot size of the incident beam w 0.5mm and i lens. Determine the spot size and location of the focused beam. s located at z, 0.35 m from the
13.7. The Gaussian beam of a HeNe laser ( 632.8 nm) is focused by a lens of...
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radius of 5 mm, an average power of 1 Watt, and a wavelength of 1 шт. We wish to choose a lens that will focus this beam as tightly as possible, subject to the constraint that the depth of focus must be at least 1 mm. a) What focal length lens should we choose? (Assume an ideal thin lens with no aberrations.) b)What...
Help
Consider a "collimated" beam, that is R(z 0)utted into a lens and focused onto a photodetector as shown in Figure P.2. Note: Do not assume that d f |a) (5 points) What is the complex Gaussian beam parameter, qi, just before the lens in terms of diameter of the lens, D, and 2? b) (10 points) What is the ABCD law matrix that relates qu to q2 at the photodetector? c) (10 points) Using ABCD law matrix from part...
P3.4. The spot size is clearly extremely important in determining the power density of a focused laser beam, an important determi- nant of how it may be used in surgery. However, there is a basic limitation on how small a spot one can achieve with a given wavelength laser beam, ; a given diameter laser beam (D); and a lens with focal length, f. This smallest spot sizc is given by: where d is the diameter of the focused laser...
Using the appropriate equation, calculate the diameter (i.e. twice the radius) of an Airy disk produced by a focused beam, where the wavelength of incident light is 642 nm, the lens focal length is 9 mm and the lens diameter is 7 mm. Express your result in microns (accurate to 2 decimal places)
A collimated beam of laser light is incident on a set of three lenses in air. The first lens is diverging (fi<0) while the second and third lenses are converging (f2>0, f;>0). The first and second lenses are separated by a distance d12, while the second and third lenses are separated by a distance d23. The system is designed to take the collimated beam of laser light expand it (lens 1), recollimate it (lens 2), and then focus it to...
