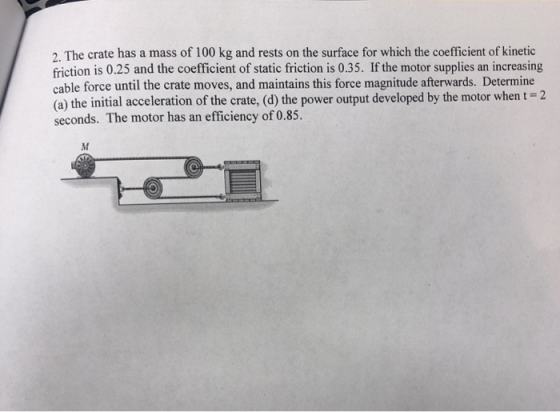

2. The crate has a mass of 100 kg and rests on the surface for which...

Question

Question

engineering Mechanical-Engineering

Answer 1

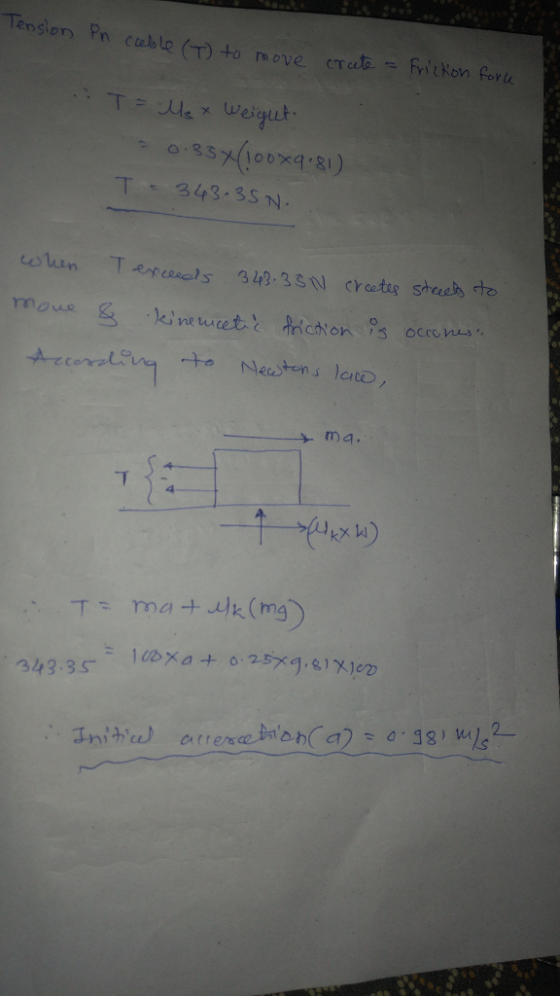

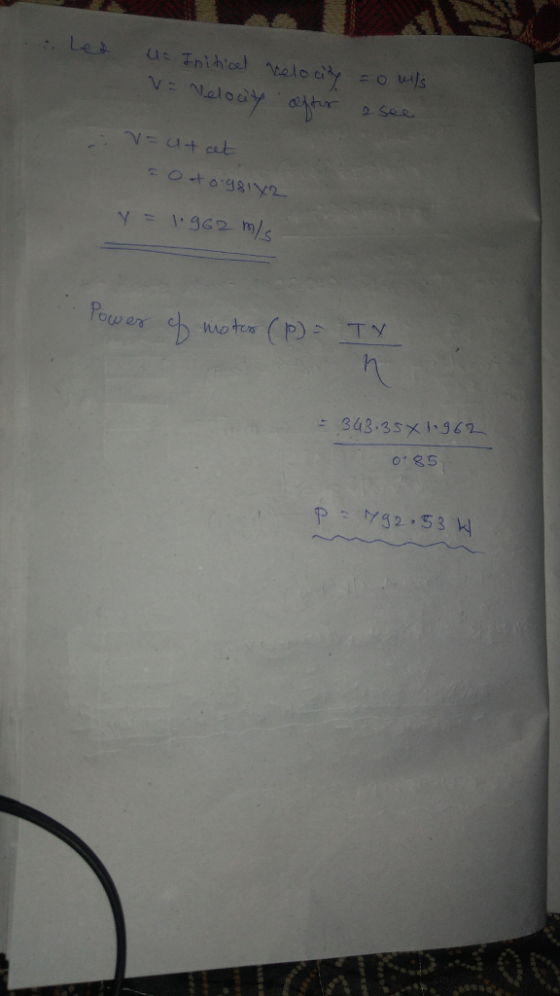

Answer #1

0.85%(!00x9 , 81) Oue ma, 343.3s 1csxa

Answer 2

Similar Homework Help Questions

The block has a mass of 144 kg and rests on a surface for which the...

The block has a mass of 144 kg and rests on a surface for which the coefficients of static and kinetic friction are Mg = 0.5 and uk = 0.4, respectively. (Figure 1) Part A If a force F = (602) N, where t is in seconds, is applied to the cable, determine the power developed by the force when t = 5 s. Hint: First determine the time needed for the force to cause motion. Figure (< 1 of...
The uniform crate has a mass of 50 kg and rests on the cart having an...

The uniform crate has a mass of 50 kg and rests on the cart having an inclined surface. Determine the smallest acceleration that will cause the crate either tip or slip relative to the cart. What is the magnitude of this acceleration? The coefficient of static friction between the crate and the cart is mu_s = 0.5.
The motor winds the cable with a constant acceleration, such that the 30 kg crate moves...

The motor winds the cable with a constant acceleration, such that the 30 kg crate moves a distance s8.5 m in 2.1s, starting from rest. c. Determine the tensionevelod in the cable. The coefficient of kinetic friction between the crate and the plane Mg = 0.25. 30°

1. A crate of mass 67.3 kg rests on a level surface, with a coefficient of...

1. A crate of mass 67.3 kg rests on a level surface, with a coefficient of kinetic friction 1.49. You push on the crate with an applied force of 1,469. What is the magnitude of the crate’s acceleration as it slide (b) Take the same crate of mass M 1306 kg, and the same coefficient of kinetic friction 0.3 but now place the crate on an inclined surface, slanted at some angle θ above the horizontal. Now instead of pushing...
A 313-kg crate rests on a surface that is inclined above the horizontal at an angle...

A 313-kg crate rests on a surface that is inclined above the horizontal at an angle of 17.0°. A horizontal force (magnitude = 414 N and parallel to the ground, not the incline) is required to start the crate moving down the incline. What is the coefficient of static friction between the crate and the incline?
The 50-kg crate shown in Fig. 13-6a rests on a horizontal surface for which the coefficient...

The 50-kg crate shown in Fig. 13-6a rests on a horizontal surface for which the coefficient of kinetic friction is Mik = 0.3. If the crate is subjected to a 400-N towing force as shown, determine the velocity of the crate in 3 s starting from rest. P= 400 N 30° Rolles in Portfolio

15. A 12-kg crate rests on a horizontal surface and a boy pulls on it with...

15. A 12-kg crate rests on a horizontal surface and a boy pulls on it with a force that is 30° below the horizontal. If the coefficient of static friction is 0.40, the minimum magnitude force he needs to start the crate moving is: A) 44 N B) 47 N C) 54 N D) 56 N E) 71 N
roblems lk at the end of the period Problem A 20-kg crate is pulled along a...

roblems lk at the end of the period Problem A 20-kg crate is pulled along a horizontal surface by a rope of tension 92 N at an angle of 60 to the 92N surface. The coefficient of kinetic friction between the crate and the surface is 0.25.Calculate (a) the magnitude of the normal force acting on the crate. 116N b) the magnitude of the kinetic friction force acting on the crate. 29 N c) the magnitude of the crate's acceleration...
A crate of mass 26.0 kg rests on a level floor. The coefficients of static friction...

A crate of mass 26.0 kg rests on a level floor. The coefficients of static friction and kinetic friction between the crate and the floor are μs = 0.50 and μk = 0.21, respectively. 1. If a horizontal force of magnitude 89.2 N is applied to the crate, what is the magnitude of the force due to friction?

A crate of 37.2-kg tools rests on a horizontal floor. You exert a gradually increasing horizontal...

A crate of 37.2-kg tools rests on a horizontal floor. You exert a gradually increasing horizontal push on it and observe that the crate just begins to move when your force exceeds 322 N . After that you must reduce your push to 240 N to keep it moving at a steady 29.1 cm/s . A.What is the coefficient of static friction between the crate and the floor? B.What push must you exert to give it an acceleration of 1.11...
