Homework Answers
Add Answer to:

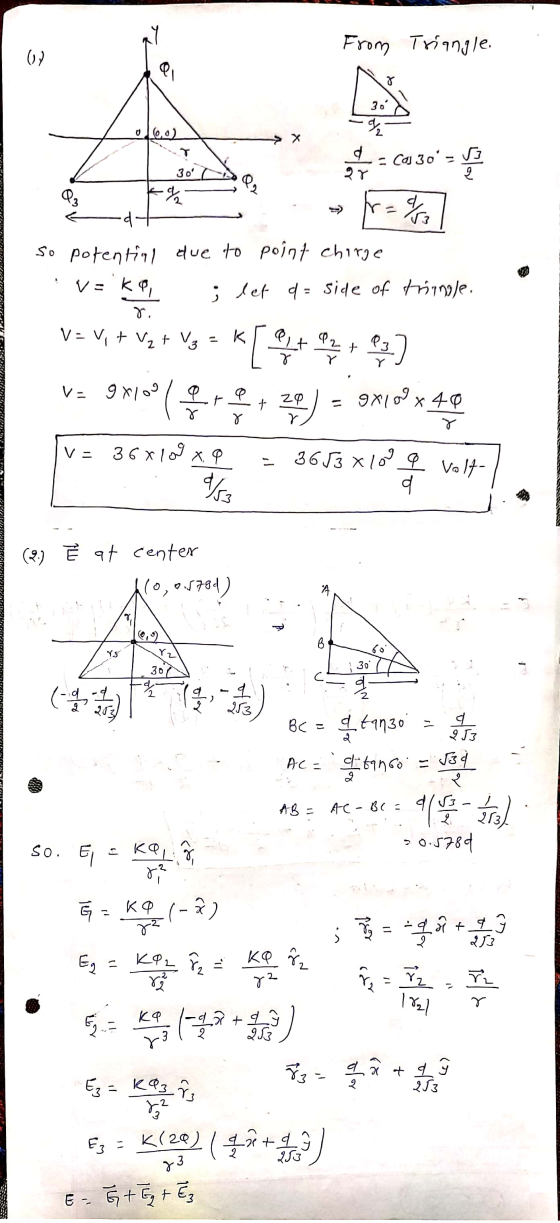

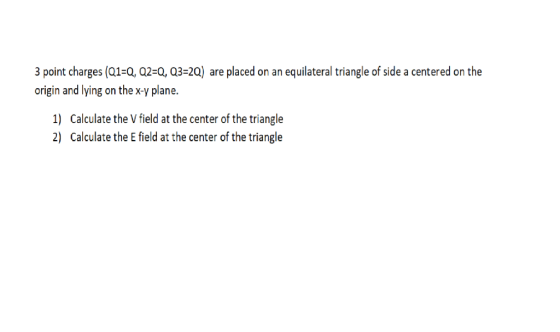

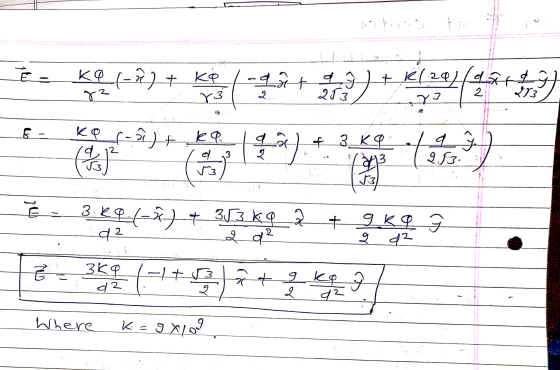

3 point charges (Q1=Q, Q2=Q, Q3=20) are placed on an equilateral triangle of side a centered...
Three point charges q1, q2, and q3 are distributed at the corners of an equilateral triangle...
Three point charges q1, q2, and q3 are distributed at the corners of an equilateral triangle of side 0.5 mm. q1 = q2 =2 μC and q3= -2 μC. The magnitude of the electric field at the position of the charge q2 due to the other two charges is
#2) Two charges, q,-2.5 μC and q2-3.0με, are placed at two corners of an equilateral triangle...
#2) Two charges, q,-2.5 μC and q2-3.0με, are placed at two corners of an equilateral triangle of side 1.1 m. Calculate the magnitude of the net electric field at the origin O due to the two charges qi and q. Coulomb's constant is 9.0 x 10° Nm2/c2 q-2.5 uC 1.1 m 42-3.0 uC 1.1 m 0
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle...
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle...
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
1) three point charges are arranged as follows Q1=+q is located at (-a,0);Q2=+q is at (a,0)...
1) three point charges are arranged as follows Q1=+q is located at (-a,0);Q2=+q is at (a,0) Q3=-q (0,a) a)Calculate the electric field at the origin and the point (0,-a) b)there are two points in the field around the charges where the field around the charges where the field strength is zero.Approximately where will they be located?Sketch a vector diagram of the three field vectors at these points and show they add to zero. 2) q1=+q is located at the origin...
Two point charges q1 and q2 are on a circle in the xy plane, centered at...
Two point charges q1 and q2 are on a circle in the xy plane, centered at the origin of the coordinates. q1 is also on the +x axis and q2 is 25.0° above the x axis in the first quadrant. Find q1/q2 if the electric field at the center of the circle has a zero x component. The answer is not 0.9063
The three point charges shown are on the corners of a triangle. Q1 and Q2 are...
The three point charges shown are on the corners of a triangle. Q1 and Q2 are on the y-axis, both a distance L from the origin. Q3 is on the x-axis a distance 2L from the origin. The charges and L have values: Q1 = 2.5 ?C, Q2 = 1.0 ?C, Q3 = - 9.5 ?C, L = 0.5 m What is the electrostatic potential at the origin? Please detail all work clearly and explain process. Give your results in Volts (J/C) to...
Q 1) Three point charges, Q1 = Qz, and Q3, are on the corners of an...
Q 1) Three point charges, Q1 = Qz, and Q3, are on the corners of an equilateral triangle with sides of length 1 as shown. What is the magnitude of the total electric force on charge Q3? 01_60° Q2 x = 1/2 x= -1/2
Three point-like charges are placed at the corners of an equilateral triangle as shown in the...
Three point-like charges are placed at the corners of an
equilateral triangle as shown in the figure, a = 42.0 cm. Find the
magnitude of the electric force exerted on the charge q3 . Let q1 =
−1.50 µC, q2 = −4.00 µC, and q3 = +2.70 µC.
2 1
Three charges, q1=+q, q2=-q, and q3=+q, are at the vertices of an equilateral triangle, as shown...
Three charges, q1=+q, q2=-q, and q3=+q, are at the
vertices of an equilateral triangle, as shown in the figure.
***Part A***
Rank the three charges in order of decreasing magnitude of the
electric force they experience. Rank charges from largest to
smallest magnitude of the electric force they experience. To rank
items as equivalent, overlap them.
***Part B***
Give the direction angle, theta, or the net force experienced by
charge 1. Note that theta is measured counterclockwise from the
positive...
#2) Two charges, q,-2.5 μC and q2-3.0με, are placed at two corners of an equilateral triangle of side 1.1 m. Calculate the magnitude of the net electric field at the origin O due to the two charges qi and q. Coulomb's constant is 9.0 x 10° Nm2/c2 q-2.5 uC 1.1 m 42-3.0 uC 1.1 m 0
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
Q 1) Three point charges, Q1 = Qz, and Q3, are on the corners of an equilateral triangle with sides of length 1 as shown. What is the magnitude of the total electric force on charge Q3? 01_60° Q2 x = 1/2 x= -1/2
Three point-like charges are placed at the corners of an
equilateral triangle as shown in the figure, a = 42.0 cm. Find the
magnitude of the electric force exerted on the charge q3 . Let q1 =
−1.50 µC, q2 = −4.00 µC, and q3 = +2.70 µC.
2 1
Three charges, q1=+q, q2=-q, and q3=+q, are at the
vertices of an equilateral triangle, as shown in the figure.
***Part A***
Rank the three charges in order of decreasing magnitude of the
electric force they experience. Rank charges from largest to
smallest magnitude of the electric force they experience. To rank
items as equivalent, overlap them.
***Part B***
Give the direction angle, theta, or the net force experienced by
charge 1. Note that theta is measured counterclockwise from the
positive...
