Question

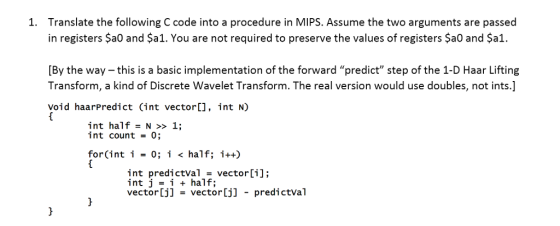

Translate the following C code into a procedure in MIPS. Assume the two arguments are passed in registers $a0 and $a1. You are not required to preserve the values of registers $a0 and Şa1 1. [By the way-this is a basic implementation of the forward "predict" step of the 1-D Haar Lifting Transform, a kind of Discrete Wavelet Transform. The real version would use doubles, not ints.] void haarpredict (int vector[], int N) int half = N >> 1; int count-0 for(int i -0; i < half; i++) int predictVal -vector[i] int j i half; vector[j] vector[j] predictval

Answer 1

Please find the code below:::

.data
vector :.space 100

.text
la $a0,vector #load vector address
li $a1,10 #loadd N in a1

jal haarPredict
li $v0,10 #terminate program
syscall

haarPredict:
srl $s0,$a1,1 #int half = N >>1 ;
li $t0,0 #count = 0
li $t7,0 #i=0
loop :

mul $s1,$t7,4 #multiply i by integer size 4
add $s1,$s1,$a0 #get base address of vector[i]
lw $s1,($s1) #load vector[i] to s1

add $s2,$t7,$s0 # j = i+half
mul $s2,$s2,4 #multiply j by integer size 4
add $s2,$s2,$a0 #get base address of vector[j]
lw $s3,($s2) #load vector[j] to s3
sub $s3,$s3,$s1 #get vector[j] - predictVal
sw $s3,($s2) #save value to vector[j]

addi $t7,$t7,1 #i++
blt $t7,$s0,loop #loop if i < half
jr $ra #jmp to calling function
