Question

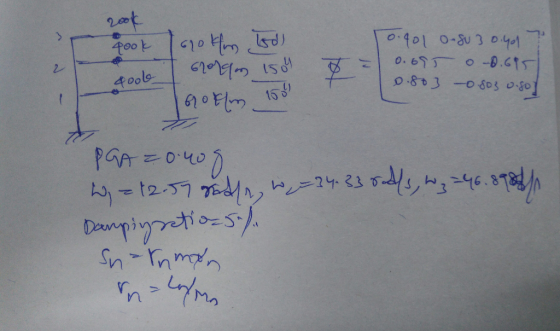

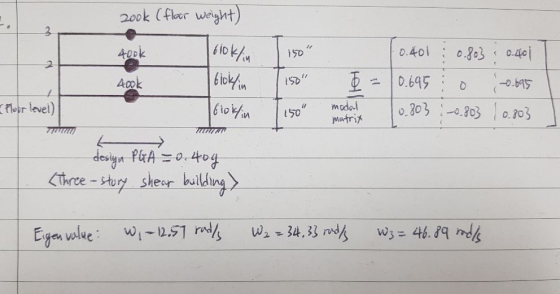

2ook (fuer welyyt) 4ook Aok 3 floir level) Thrce-tury shear building en value S W

Answer the dynamic response question below for the three-story shear building above for Design PGA = 0.4g. The damping ratio for all modes is assumed to be 5%. (Use the attached 84.1th percentile spectrum.)

$\underline{S}_{n}=\Gamma _{n}\underline{m}\underline{\phi}_{n}$

$\Gamma _{n}= \frac{L_{n}}{M_{n}}$

Find lateral displacement vector $\underline{u}$ (3x1 matrix) by applying lateral force vector P=[160k; 280k; 160k]

Answer 1
