Homework Answers
Add Answer to:

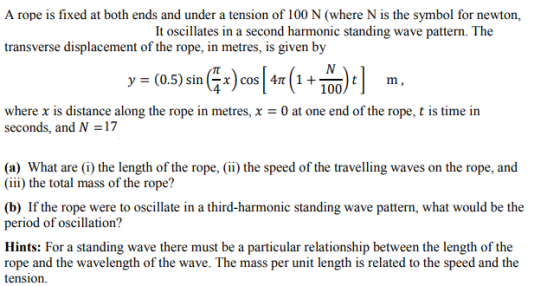

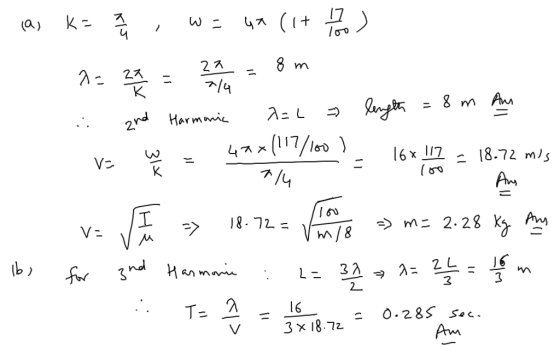

A rope is fixed at both ends and under a tension of 100 N (where N...
The tension in a nylon monofilament fixed at both ends is 17.0 N. The mass per...
The tension in a nylon monofilament fixed at both ends is 17.0 N. The mass per unit length is 5.00 ✕ 10−3 kg/m, and its length is 41.0 cm. (a) What is the fundamental frequency (in Hz)? (b) What are the next three frequencies (in Hz) that could result in standing wave patterns? List them smallest to largest. second harmonic (Hz)= third harmonic (Hz)= fourth harmonic (Hz)=
Assuming that a tension of 1.0 N is applied to a rope that has a length...
Assuming that a tension of 1.0 N is applied to a rope that has a length of 0.900m and whose linear mass density is 4.325 * 10 ^ -3 kg / m; determines the propagation speed of the transverse waves produced in the string if it is observed that three segments are formed when the oscillation frequency is 25.3 HZ
A string 3.30 m long and fixed at both ends is vibrating in its third harmonic....
A string 3.30 m long and fixed at both ends is vibrating in its third harmonic. The maximum displacement of any point on the string is 4.00 mm. The speed of transverse waves on this string is 59.5 m/s. (a) What are the wavelength and frequency of this standing wave? wavelength m frequency Hz (b) Write the wave function for this standing wave.
Asimple harmonic oscillator at the point generates a wave on a rope. The oscillator operates at...
Asimple harmonic oscillator at the point generates a wave on a rope. The oscillator operates at a frequency of 40.0 Hz and with an amplitude of 3.00 cm. The rope has a linear mass density of and is stretched with a tension of 5.00 N. (a) Determine the speed of the wave. (b) Find the wavelength. (c) Write the wave function for the wave. Assume that the oscillator has its maximum upward displacement at time t=0. (d) Find the maximum...
1. Travelling Waves A transverse wave travels along the length of a rope. The vertical displacement...
1. Travelling Waves A transverse wave travels along the length of a rope. The vertical displacement of any mass element of the rope is given by the function y(x.t) - 2sin(x+t+) in units of centimeters. Answer the following: () What is the velocity of the wave itself (indicate direction of motion as well)? (ii) Find the maximum transverse acceleration of the rope.
6. Transverse waves are propagating along a stretched rope. The tension in the rope is doubled....
6. Transverse waves are propagating along a stretched rope. The tension in the rope is doubled. (a) If the wavelength is to remain unaffected, by what factor should the frequency change? (b) Does this change the speed of the wave? If so, by what factor? 7. A wave described by the function below propagates in a string under a tension of 0.18 N. y(x,t) = 2.4 x 10-3 sin (36x – 270t) m where x is in meters, and t...
20. A string (length 1 m, tension 100 N) is clamped at both ends. The string...
20. A string (length 1 m, tension 100 N) is clamped at both ends. The string resonates with transverse waves at the fundamental frequency of 250 Hz. What is the mass of the string? 21. A speaker generates sound waves isotropically. The total sonic power produced by the speaker is 1 W. What is the sound intensity level (in decibels) at a distance of 100 m from the speaker?
A 20.9 m long string is clamped at both ends and under 9.3 N of tension....
A 20.9 m long string is clamped at both ends and under 9.3 N of tension. It supports standing waves at 40 Hz and 50 Hz. a. What is the string's mass density in g/m? b. How many nodes are on the string when the 40 Hz standing wave occurs? 0,1,2,3,4, or 5. Please explain.
A string fixed at both ends is 11 m long and has a mass of 0.20...
A string fixed at both ends is 11 m long and has a mass of 0.20 kg. It is subjected to a tension of 100 N and set oscillating. (a) What is the speed of the waves on the string? (b) What is the longest possible wavelength for a standing wave? (c) Give the frequency of that wave.
A transverse harmonic wave travels on a rope according to the following expression y(x,t) = 0.13sin(2.4x...
A transverse harmonic wave travels on a rope according to the following expression y(x,t) = 0.13sin(2.4x + 17.3t) The mass density of the rope is μ = 0.141 kg/m. x and y are measured in meters and t in seconds. What is the tension in the rope? At x = 3.9 m and t = 0.4 s, what is the acceleration of the rope? (watch your sign) What is the average speed of the rope during one complete oscillation of...
1. Travelling Waves A transverse wave travels along the length of a rope. The vertical displacement of any mass element of the rope is given by the function y(x.t) - 2sin(x+t+) in units of centimeters. Answer the following: () What is the velocity of the wave itself (indicate direction of motion as well)? (ii) Find the maximum transverse acceleration of the rope.
6. Transverse waves are propagating along a stretched rope. The tension in the rope is doubled. (a) If the wavelength is to remain unaffected, by what factor should the frequency change? (b) Does this change the speed of the wave? If so, by what factor? 7. A wave described by the function below propagates in a string under a tension of 0.18 N. y(x,t) = 2.4 x 10-3 sin (36x – 270t) m where x is in meters, and t...
20. A string (length 1 m, tension 100 N) is clamped at both ends. The string resonates with transverse waves at the fundamental frequency of 250 Hz. What is the mass of the string? 21. A speaker generates sound waves isotropically. The total sonic power produced by the speaker is 1 W. What is the sound intensity level (in decibels) at a distance of 100 m from the speaker?
