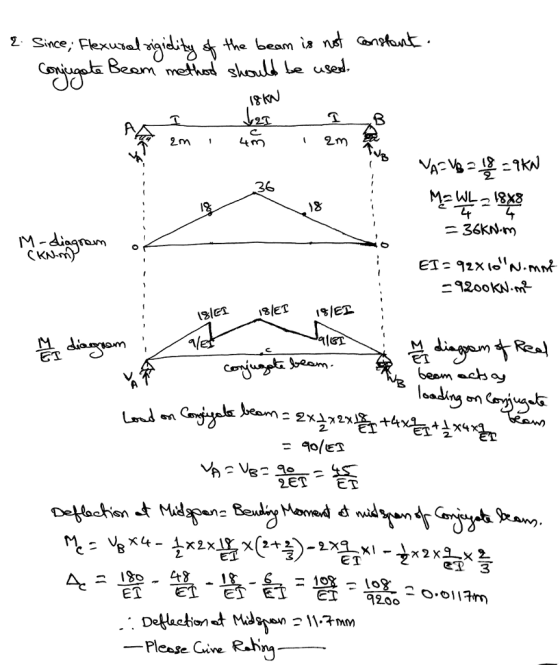

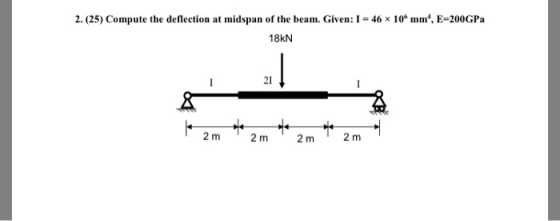

2. (25) Compute the deflection at midspan of the beam. Given: 1 = 46 x 106...
P8.24. Compute the deflection at midspan of the beam in Figure P8.24. Given: 146 x 106 mm, E 200 ...
Solve using Virtual work method
P8.24. Compute the deflection at midspan of the beam in Figure P8.24. Given: 146 x 106 mm, E 200 GPa. Treat rocker at E as a roller P 18 kN 21 P8.24
P8.24. Compute the deflection at midspan of the beam in Figure P8.24. Given: 146 x 106 mm, E 200 GPa. Treat rocker at E as a roller P 18 kN 21 P8.24
The simply supported beam consists of a w530 x 66 structural steel wide-flange shape [E-200 GPa; I -351 x 106 mm]. Determine (a) the beam deflection at point C. (b) the beam deflection at point E. As...
The simply supported beam consists of a w530 x 66 structural steel wide-flange shape [E-200 GPa; I -351 x 106 mm]. Determine (a) the beam deflection at point C. (b) the beam deflection at point E. Assume P = 35 kN, w = 80 kN/m, LAB = LBC = LCD = 4 m, LDE = 2 m LAB BC Answers: (a) vc=T-190.693 (b) VE178.156
The simply supported beam consists of a w530 x 66 structural steel wide-flange shape [E-200 GPa;...
Use Unit Load Method in determining the maximum deflection at midspan. E and I are constant
What is the reaction at A of the real beam?in constructing the virtual beam and determining the maximum deflection, where must be the 1-unit load be placed?what is the reaction at the support of the virtual beam?in solving the maximum deflection at midspan, how many segments must the beam be divided so that the real and virtual loadings are continius in each segment?consider segment AB of the real beam, with x measured from A, what is the moment equation Mab?In...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q =...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan....
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan. The maximum deflection of the beam at the midspan can be calculated as: mar- 384 EI 48 E A beam with El 63.51 x 106 kip-in.2 Is selected to carry the load. Both w and P are statistically independent RVs with mean values estimated to be...
For the cantilever steel beam [E 190 GPa; deflection VA at A 110 x 106 mm*],...
For the cantilever steel beam [E 190 GPa; deflection VA at A 110 x 106 mm*], use the double-integration method to determine the Assume L = 1.6 m, P = 59 kN, and wo = 106 kN/m. Answer: VA = the tolerance is +/-296
Use the virtual work method to find the deflection of the cantlever beam A. E-200GPa, I - 500x106 mm" 2/3 12 kN/m 1...
Use the virtual work method to find the deflection of the
cantlever beam A.
E-200GPa, I - 500x106 mm" 2/3 12 kN/m 10 m
E-200GPa, I - 500x106 mm" 2/3 12 kN/m 10 m
1. The maximum deflection for the beam given below is 3.5 mm. E = 125 x...
1. The maximum deflection for the beam given below is 3.5 mm. E = 125 x 10' MPa and I = 85,000 mm". Calculate the load (W). A B RA 2m
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at...
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at midspan due to prestress and the beam's own weight. – cgc F ee = 12.62" e = 22.02% I---------- = 12.62" cgs (with two points depressed) 20'-0" - 20'-0" – 20'-0" Given: A = 978 in. f'= 3,750 psi I = 86,075 in. P = 462,672 lb Beam weight = 0.15 kips/ft?
Solve using Virtual work method
P8.24. Compute the deflection at midspan of the beam in Figure P8.24. Given: 146 x 106 mm, E 200 GPa. Treat rocker at E as a roller P 18 kN 21 P8.24
P8.24. Compute the deflection at midspan of the beam in Figure P8.24. Given: 146 x 106 mm, E 200 GPa. Treat rocker at E as a roller P 18 kN 21 P8.24
The simply supported beam consists of a w530 x 66 structural steel wide-flange shape [E-200 GPa; I -351 x 106 mm]. Determine (a) the beam deflection at point C. (b) the beam deflection at point E. Assume P = 35 kN, w = 80 kN/m, LAB = LBC = LCD = 4 m, LDE = 2 m LAB BC Answers: (a) vc=T-190.693 (b) VE178.156
The simply supported beam consists of a w530 x 66 structural steel wide-flange shape [E-200 GPa;...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan. The maximum deflection of the beam at the midspan can be calculated as: mar- 384 EI 48 E A beam with El 63.51 x 106 kip-in.2 Is selected to carry the load. Both w and P are statistically independent RVs with mean values estimated to be...
For the cantilever steel beam [E 190 GPa; deflection VA at A 110 x 106 mm*], use the double-integration method to determine the Assume L = 1.6 m, P = 59 kN, and wo = 106 kN/m. Answer: VA = the tolerance is +/-296
Use the virtual work method to find the deflection of the
cantlever beam A.
E-200GPa, I - 500x106 mm" 2/3 12 kN/m 10 m
E-200GPa, I - 500x106 mm" 2/3 12 kN/m 10 m
1. The maximum deflection for the beam given below is 3.5 mm. E = 125 x 10' MPa and I = 85,000 mm". Calculate the load (W). A B RA 2m
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at midspan due to prestress and the beam's own weight. – cgc F ee = 12.62" e = 22.02% I---------- = 12.62" cgs (with two points depressed) 20'-0" - 20'-0" – 20'-0" Given: A = 978 in. f'= 3,750 psi I = 86,075 in. P = 462,672 lb Beam weight = 0.15 kips/ft?
