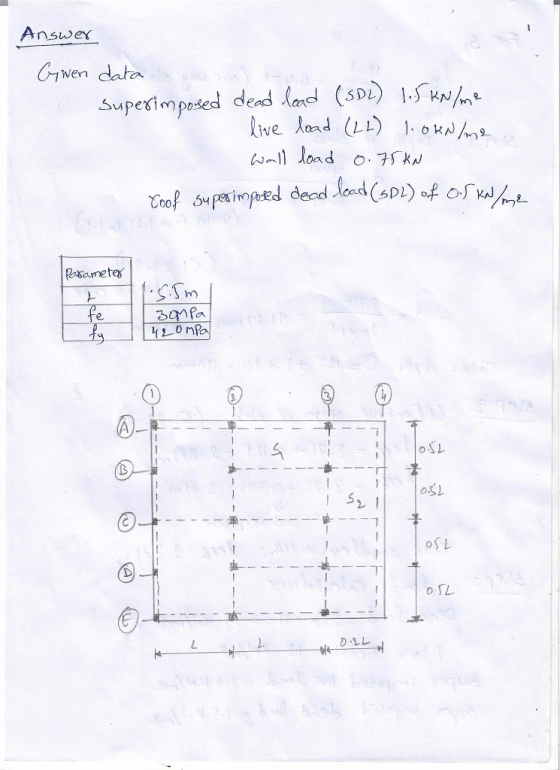

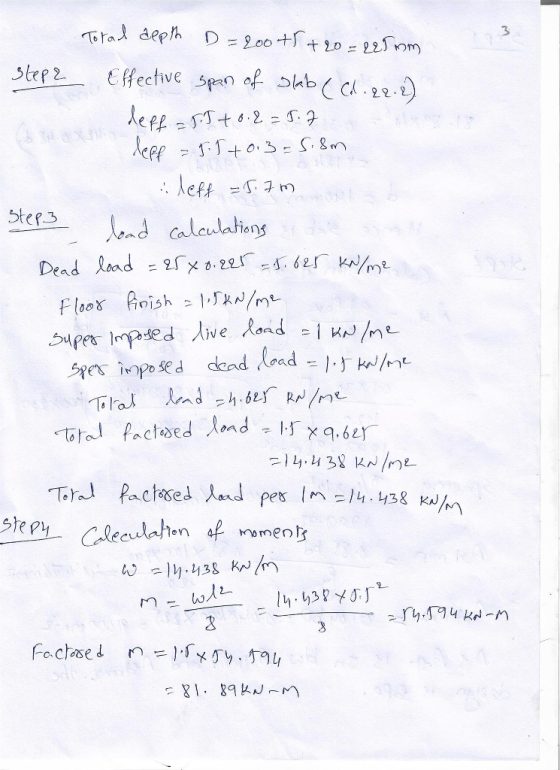

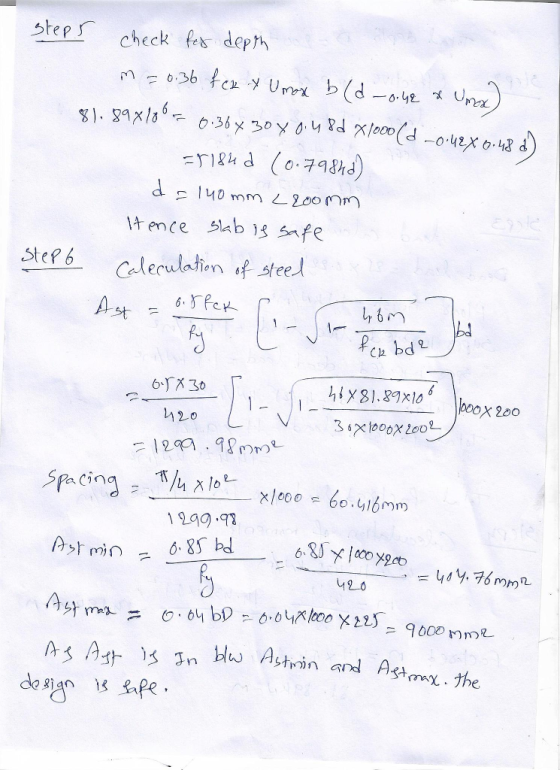

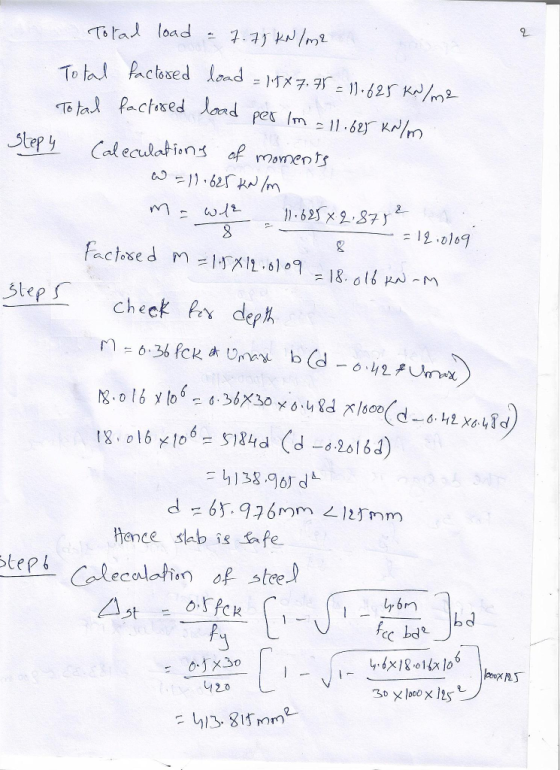

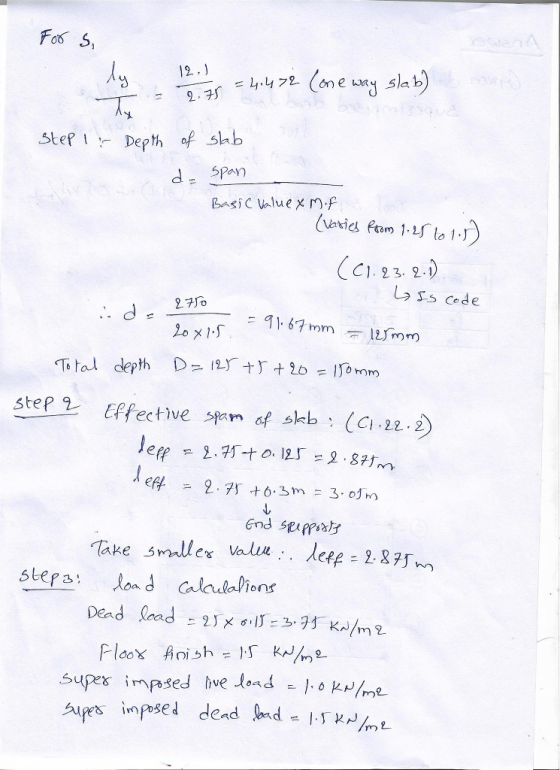

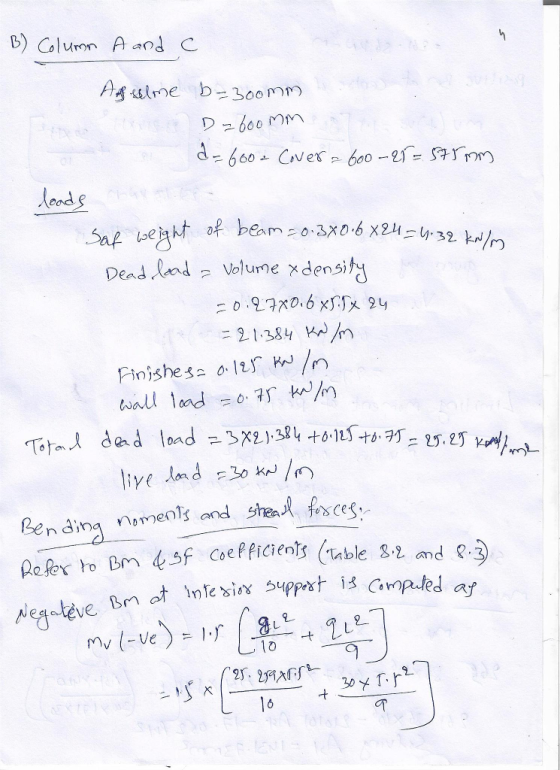

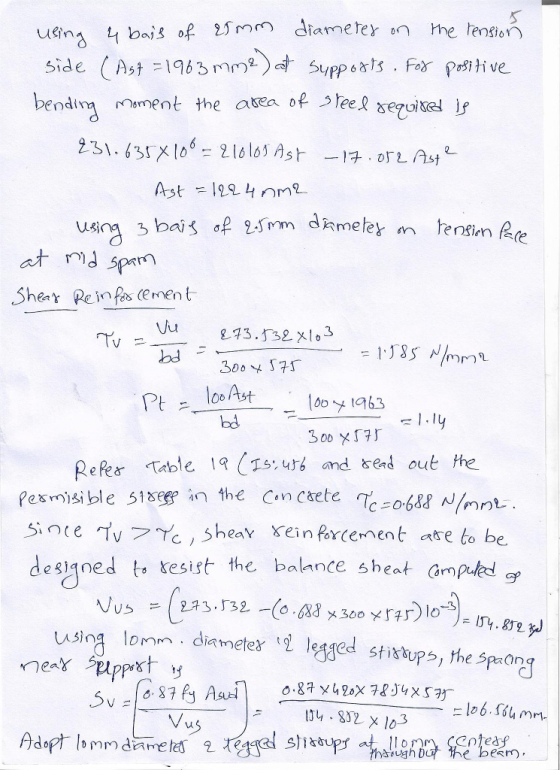

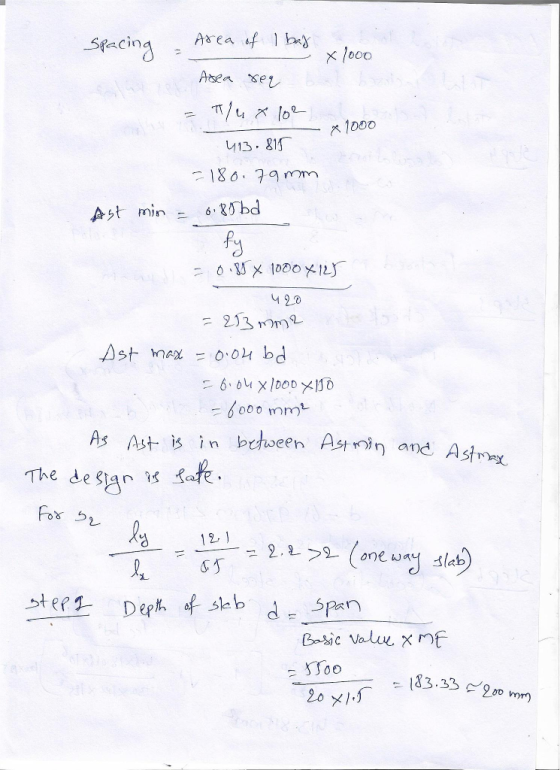

REINFORCED CONCRETE DESIGN CLASS PROJECT The structural floor plan of a three-story (ground floor, two suspended...
is the second floor of a four-story building. a flat Consider the floor framing plan shown...
is the second floor of a four-story building. a flat Consider the floor framing plan shown below. Thi The design floor live load is 90 psf. The design roof live load is 20 psf. The structure has roof G1 G4 /2 G2 GS 2o G3 FLOOR FRAMING PLAN Assume that the floor between Beams B7 and B8 is supported directly by these two beams only (not by Girders G2 and G3). Beam B7 has a self-weight of 30 plf. The...
PROBLEM 3: (40points) Figure shows te clevation and main floor plan for five-story bailding. The building...
PROBLEM 3: (40points) Figure shows te clevation and main floor plan for five-story bailding. The building is clad with nonstructural precest pansl There are no sructural walls or other bracing. The floor besms in the north-south direction are all 450mm wide with an overa depth of 750mm. The floor slabs are 150mm thick Assume all the floors are to be designed for a superimposed dead load of S KPa plus alive load of 12KPa, which includes a 3.5KPa partition loading....
The floor plan of a residential building is shown in Figure Q4. Assume the characteristic dead...
The floor plan of a residential building is shown in Figure Q4. Assume the characteristic dead load is 4.0 kN/m2 and imposed load is 5.0 kN/m2 for all floor area. All floor slabs are of one-way slab. Determine the design loads carried by beam CD and AB Sketch the shear force diagram for beam AB indicating all salient values Total (15) marks One-way slab 3 m One-way slab с 1 1 E One-way slab 3 m Opening A 2 m...
RENFORCEMENT CONCRETE DESIGN (ACI-Code 2019). Reinforced Concrete Design Example 1: Using the ACI-Code approximate structural analysis,...
RENFORCEMENT CONCRETE DESIGN (ACI-Code 2019).
Reinforced Concrete Design Example 1: Using the ACI-Code approximate structural analysis, design for a warehouse, a continuous one-way solid slab supported on beams 4.0 m apart as shown in Figure. Assume that the beam webs are 30 cm wide. The dead load is 3 kN/m² in addition to the own weight of the slab, and the live load is 3 kN/m². Use fcº=28MPa, fy= 420MPa 8.0 m 4.0 m 4.0 m 4.0 m
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the de...
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3. Assume that: Live loads; LL-3 kN/m2, Thickness of the slab-0.12 m, flooring cover 1.5 kN/m2 fc 35 MPa, fy 420 MPa. 2.50 B2 2
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3....
6. The figure below shows the floor framing plan for an office building. The roof has the same fr...
6. The figure below shows the floor framing plan for an office building. The roof has the same framing plan as the floor. Select a W12 section for Column C1 in the first floor and assume the same column will be used for Column C2 in the second floor. Floor loads (applied on the 2 floor; dead load of 200 psf and live load of 300 psf Roof loads (applied on the roof: dead load of 100 psf and roof...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is 250 psf, and the dead load on all foors and the roof consists of the structure self-weight plus 10 psf for utilities. W 12:96 beams are spaced at 12 ft; w 18x106 reinforced one-way concrete floor/roof slab is 8" thick, each story is 12' high, and the reinforced concrete columns have a 14" x 14" cross-section girders...
1. T-Beams are used to support a floor in an industrial building. The floor is used...
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
A six-storey office building consists of a basement, ground floor (1t floor), five upper floor levels...
A six-storey office building consists of a basement, ground floor (1t floor), five upper floor levels (levels 2 through 6), and a roof. The typical layout of the floor system is shown below, in which each floor girder spans 6 m and floor joists span 4 m. The total plan area of the building is therefore 12 m x 8 m. The roofsystem is similar to the floor system. All of the floors support a uniformly distributed dead load of...
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3. Assume that Live loads; LL-3 kN...
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3. Assume that Live loads; LL-3 kN/m2, Thickness of the slab=0.12 m, flooring cover = 1.5 kN/m2. fc 35 MPa, f 420 MPa 8 8 2 250B2 8 8 5 5 5 2
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads...
is the second floor of a four-story building. a flat Consider the floor framing plan shown below. Thi The design floor live load is 90 psf. The design roof live load is 20 psf. The structure has roof G1 G4 /2 G2 GS 2o G3 FLOOR FRAMING PLAN Assume that the floor between Beams B7 and B8 is supported directly by these two beams only (not by Girders G2 and G3). Beam B7 has a self-weight of 30 plf. The...
PROBLEM 3: (40points) Figure shows te clevation and main floor plan for five-story bailding. The building is clad with nonstructural precest pansl There are no sructural walls or other bracing. The floor besms in the north-south direction are all 450mm wide with an overa depth of 750mm. The floor slabs are 150mm thick Assume all the floors are to be designed for a superimposed dead load of S KPa plus alive load of 12KPa, which includes a 3.5KPa partition loading....
The floor plan of a residential building is shown in Figure Q4. Assume the characteristic dead load is 4.0 kN/m2 and imposed load is 5.0 kN/m2 for all floor area. All floor slabs are of one-way slab. Determine the design loads carried by beam CD and AB Sketch the shear force diagram for beam AB indicating all salient values Total (15) marks One-way slab 3 m One-way slab с 1 1 E One-way slab 3 m Opening A 2 m...
RENFORCEMENT CONCRETE DESIGN (ACI-Code 2019).
Reinforced Concrete Design Example 1: Using the ACI-Code approximate structural analysis, design for a warehouse, a continuous one-way solid slab supported on beams 4.0 m apart as shown in Figure. Assume that the beam webs are 30 cm wide. The dead load is 3 kN/m² in addition to the own weight of the slab, and the live load is 3 kN/m². Use fcº=28MPa, fy= 420MPa 8.0 m 4.0 m 4.0 m 4.0 m
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3. Assume that: Live loads; LL-3 kN/m2, Thickness of the slab-0.12 m, flooring cover 1.5 kN/m2 fc 35 MPa, fy 420 MPa. 2.50 B2 2
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3....
6. The figure below shows the floor framing plan for an office building. The roof has the same framing plan as the floor. Select a W12 section for Column C1 in the first floor and assume the same column will be used for Column C2 in the second floor. Floor loads (applied on the 2 floor; dead load of 200 psf and live load of 300 psf Roof loads (applied on the roof: dead load of 100 psf and roof...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is 250 psf, and the dead load on all foors and the roof consists of the structure self-weight plus 10 psf for utilities. W 12:96 beams are spaced at 12 ft; w 18x106 reinforced one-way concrete floor/roof slab is 8" thick, each story is 12' high, and the reinforced concrete columns have a 14" x 14" cross-section girders...
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
A six-storey office building consists of a basement, ground floor (1t floor), five upper floor levels (levels 2 through 6), and a roof. The typical layout of the floor system is shown below, in which each floor girder spans 6 m and floor joists span 4 m. The total plan area of the building is therefore 12 m x 8 m. The roofsystem is similar to the floor system. All of the floors support a uniformly distributed dead load of...
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads for the marked beams B1, B2 and B3. Assume that Live loads; LL-3 kN/m2, Thickness of the slab=0.12 m, flooring cover = 1.5 kN/m2. fc 35 MPa, f 420 MPa 8 8 2 250B2 8 8 5 5 5 2
Question 2: For the reinforced concrete structural plan shown. It is required to calculate the design working and ultimate loads...
