Question

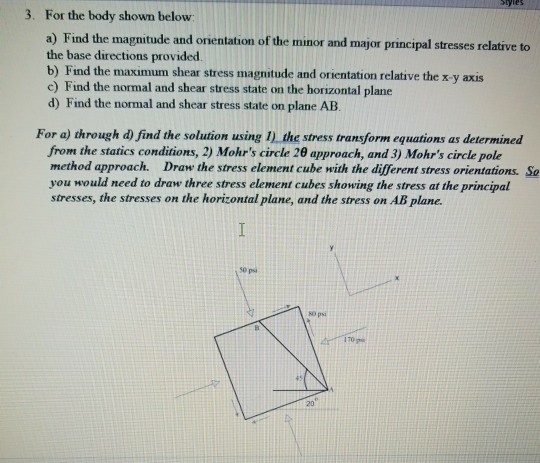

tyles 3. For the body shown below a) Find the magnitude and orientation of the minor and major principal stresses relative to the base directions provided b) Find the maximum shear stress magnitude and orientation relative the x y axis c) Find the normal and shear stress state on the horizontal plane d) Find the normal and shear stress state on plane AB For a) through d) find the solution using I) the stress transform equations as determined from the statics conditions, 2) Mohrs circle 2θ approach, and 3) Mohrs circle pole method approack. Draw the stress element cube with the different stress orientations. So you would need to draw three stress element cubes showing the stress at the principal stresses, the stresses on the horizontal plane, and the stress on AB plane. 0 psi O ps 170 p 20

0 0
Add a comment Improve this question Transcribed image text
Answer #1

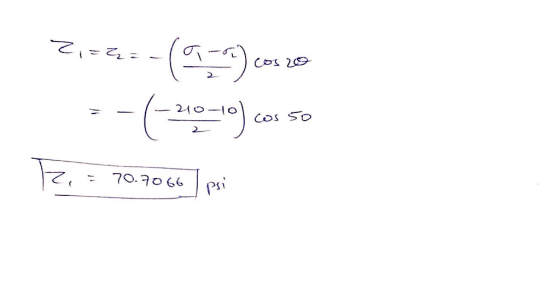

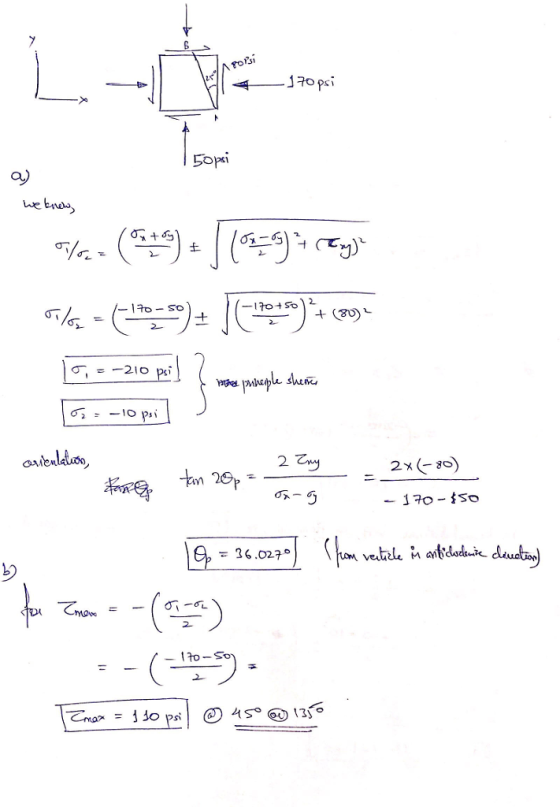

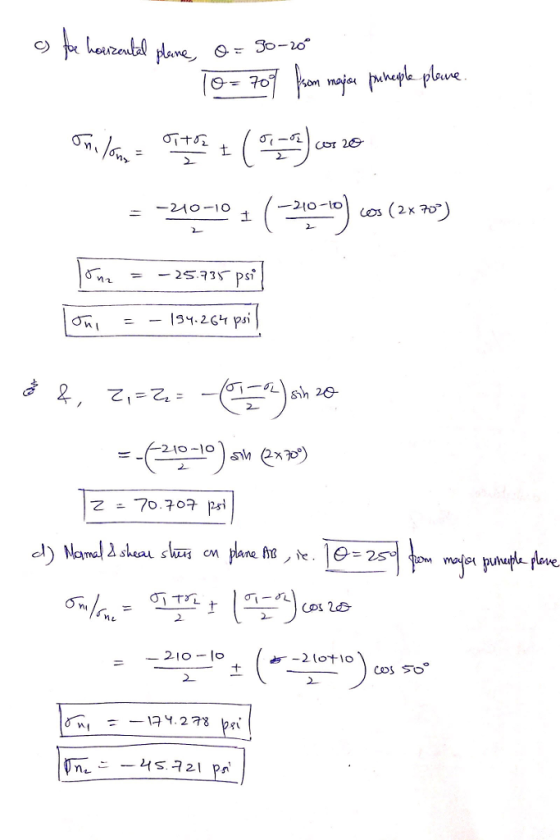

to s1 」70psi 2 170-so20 psi 叮ーん 叮ナ兀 (DL 2心 扩ー2 (oto CDS SD乙,-4:- のーん 0 Cos So 乙-707066 | psiNote: Due to limited time, solved by only one method. You need to ask seperatly for different methods.

Let me know if there is anything i can help you with.

Have a nice day!

Add a comment
