2.b. The 12-lb lever OA with 10-in radius of gyration about O is initially at rest...
k 10 lb/ft The disk weighs 40 lb and has a radius of gyration of 0.6...
k 10 lb/ft The disk weighs 40 lb and has a radius of gyration of 0.6 ft. A 15 ftlb moment is applied and the spring has a spring constant of 10 lb/ft. The wheel starts from rest and rolls without slipping. The spring is not initially stretched. Find the angular velocity of the wheel when point G moves 0.5 ft. 0.8 ft 15 lb ft
r(m) = 0.36 k(N/m) = 414 m(kg) = 23 x1(m)= 0.350 x2(m)=0.350 x3(m) = 0.700 Q0(deg)=50...
r(m) = 0.36 k(N/m) = 414 m(kg) = 23 x1(m)= 0.350
x2(m)=0.350 x3(m) = 0.700
Q0(deg)=50 Q1(deg)=7 ()0 (rad/s)=2
() (rad/s)=7

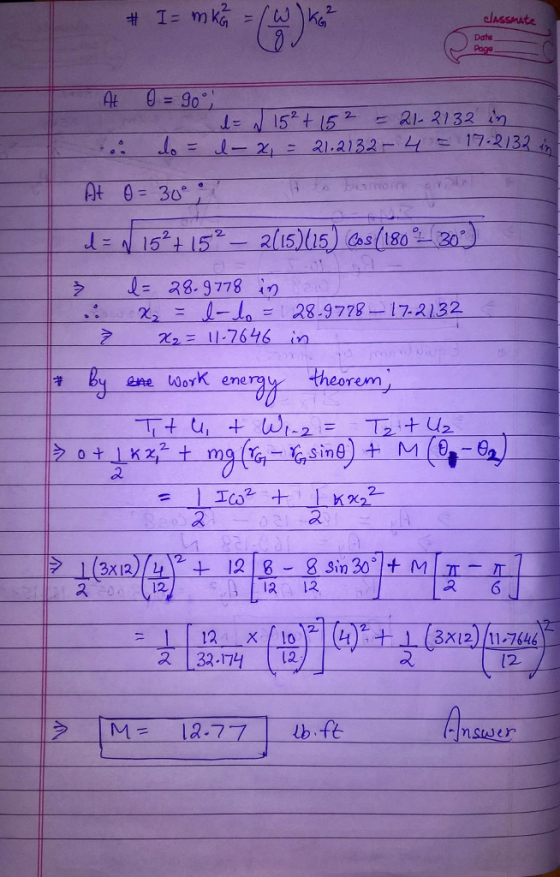

4. (25 points) The lever OĂ, which has mass m and radius of gyration r about O, has an angular velocity w = w, when 0 = 0. The attached spring has a stiffness k and it is unstretched when 0 =(when the lever is vertical). Calculate the constant moment M applied to the lever which will give the...
PROBLEM 4 The 30-Kg pendulum has its mass center at G and a radius of gyration about point G of -...
PROBLEM 4 The 30-Kg pendulum has its mass center at G and a radius of gyration about point G of - ,#300 mm . It is initially at rest in the horizontal position(6-0") , where the attached <M spring is unstretched. After applying a constant moment ofM " 10 N.m . determine angular 300 N 2nlositz ω" ? at the instant (-90° ) . Note that: -m ko,, where m is the mass or the pendulum
PROBLEM 4 The 30-Kg...
Please help with centroidal radius of gyration! An automobile wheel-and-tire assembly with a total weight 47...
Please help with centroidal radius of gyration!
An automobile wheel-and-tire assembly with a total weight 47 lbs is attached to a mounting plate of negligible weight which is suspended from a steel wire. The torsional spring constant of the wire is known to be K = 0.40 lb-in./rad. The wheel is rotated through 90° about the vertical and then released. Knowing that the period of oscillation is observed to be 66 s, determine the centroidal mass moment of Inertia and...
PLANE KINETICS OF RIGID BODIES 512 16/191 The uniform circular disk D weighs 8 lb and is free to turn about the bear...
PLANE KINETICS OF RIGID BODIES 512 16/191 The uniform circular disk D weighs 8 lb and is free to turn about the bearing axis C-C. The arm B weighs 5 lb and is fastened to the vertical shaft O-O. The arm may be approximated bar 12 in. long, and the moment of inertia of the vertical shaft O-O may be neglected. The rod A weighs 6 lb and is fastened securely to the arm. If the initial angular velocity of...
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6...
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6 ft. The spring has a stiffness of 2 lb/ft and an unstretched length of 1 ft. Find the velocity of the center G at the instant G moves 3 ft to the left. Assume that the disk is released from rest in the position shown and rolls without slipping. k=2 lb/ft
The 15-kg slender bar OA is released from rest in the vertical position and compresses the...
The 15-kg slender bar OA is released from rest in the vertical position and compresses thespring of stiffness k = 20 kN/m as the horizontal position is passed. Determine the propersetting of the spring, by specifying the distance h, that will result in the bar having an angularvelocity ω = 4 rad/s as it crosses the horizontal position. What is the effect of x on thedynamics of the problem?
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
an 8kg flywheel of radius r is initially at rest. assume the radius of the gyration kG= 0.12m and the radius of the flywheel r = 0.125m. an object B also of mass 8 kg is attached to a cord that is wra...
an 8kg flywheel of radius r is
initially at rest. assume the radius of the gyration kG= 0.12m and
the radius of the flywheel r = 0.125m. an object B also of mass 8
kg is attached to a cord that is wrapped around a periphery of the
flywheel. the fly wheel starts to rotate clockwise with angular
velocity. the rotation is resisted by a constant frictional torque
mf in the bearing 1Nm. use the work energy principle to determine...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the uniform 20-kg bars OA and AB are in the vertical position and overlap. If the system is released from rest with 0 = 67°, determine the magnitude of the angular velocity of wheel B when 0 = 25º. The 13-kg wheel at B has a centroidal radius of gyration of 50 mm and is observed to roll without slipping on the horizontal surface. kr...
k 10 lb/ft The disk weighs 40 lb and has a radius of gyration of 0.6 ft. A 15 ftlb moment is applied and the spring has a spring constant of 10 lb/ft. The wheel starts from rest and rolls without slipping. The spring is not initially stretched. Find the angular velocity of the wheel when point G moves 0.5 ft. 0.8 ft 15 lb ft
r(m) = 0.36 k(N/m) = 414 m(kg) = 23 x1(m)= 0.350
x2(m)=0.350 x3(m) = 0.700
Q0(deg)=50 Q1(deg)=7 ()0 (rad/s)=2
() (rad/s)=7
4. (25 points) The lever OĂ, which has mass m and radius of gyration r about O, has an angular velocity w = w, when 0 = 0. The attached spring has a stiffness k and it is unstretched when 0 =(when the lever is vertical). Calculate the constant moment M applied to the lever which will give the...
PROBLEM 4 The 30-Kg pendulum has its mass center at G and a radius of gyration about point G of - ,#300 mm . It is initially at rest in the horizontal position(6-0") , where the attached <M spring is unstretched. After applying a constant moment ofM " 10 N.m . determine angular 300 N 2nlositz ω" ? at the instant (-90° ) . Note that: -m ko,, where m is the mass or the pendulum
PROBLEM 4 The 30-Kg...
Please help with centroidal radius of gyration!
An automobile wheel-and-tire assembly with a total weight 47 lbs is attached to a mounting plate of negligible weight which is suspended from a steel wire. The torsional spring constant of the wire is known to be K = 0.40 lb-in./rad. The wheel is rotated through 90° about the vertical and then released. Knowing that the period of oscillation is observed to be 66 s, determine the centroidal mass moment of Inertia and...
PLANE KINETICS OF RIGID BODIES 512 16/191 The uniform circular disk D weighs 8 lb and is free to turn about the bearing axis C-C. The arm B weighs 5 lb and is fastened to the vertical shaft O-O. The arm may be approximated bar 12 in. long, and the moment of inertia of the vertical shaft O-O may be neglected. The rod A weighs 6 lb and is fastened securely to the arm. If the initial angular velocity of...
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6 ft. The spring has a stiffness of 2 lb/ft and an unstretched length of 1 ft. Find the velocity of the center G at the instant G moves 3 ft to the left. Assume that the disk is released from rest in the position shown and rolls without slipping. k=2 lb/ft
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
an 8kg flywheel of radius r is
initially at rest. assume the radius of the gyration kG= 0.12m and
the radius of the flywheel r = 0.125m. an object B also of mass 8
kg is attached to a cord that is wrapped around a periphery of the
flywheel. the fly wheel starts to rotate clockwise with angular
velocity. the rotation is resisted by a constant frictional torque
mf in the bearing 1Nm. use the work energy principle to determine...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the uniform 20-kg bars OA and AB are in the vertical position and overlap. If the system is released from rest with 0 = 67°, determine the magnitude of the angular velocity of wheel B when 0 = 25º. The 13-kg wheel at B has a centroidal radius of gyration of 50 mm and is observed to roll without slipping on the horizontal surface. kr...
