I need help with part D-HHomework Answers
Add Answer to:
I need help with part D-H

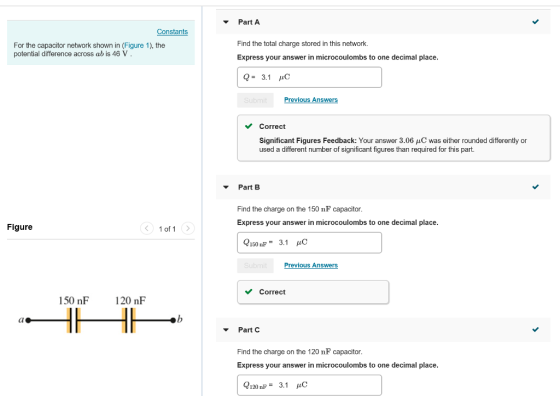

Part A nstants For the capacitor network shown in (Figure...
For the capacitor network shown in (Figure 1) , the potential difference across ab is 48...
For the capacitor network shown in (Figure 1) , the potential
difference across ab is 48 V .Find the charge on the 150 nFcapacitor.Find the charge on the 120 nFcapacitor.Find the total energy stored in the network.Find the energy stored in the 150nF capacitor.Find the energy stored in the 120nF capacitor.Find the potential difference across the 150 nF capacitor.Find the potential difference across the 120 nF capacitor.
(Figure 1)ln the figure are shown three capacitors with What is the charge Qi on capacitor...
(Figure 1)ln the figure are shown three capacitors with What is the charge Qi on capacitor Cr? View Available Hint(s) c, 6.00 ??, C-3.00 ??, C3 5.00 ?F. The network is connected to an applied potential Vab. After the charges on the capacitors have reached their final values, the charge Q2 on the second capacitor is 40.0 uC AC Submit PartB Figure 1 of 1 What is the charge on capacitor C3? Express your answer in microcoulombs to three significant...
CChapter 18-Homework Problem 18.46 Part C Constants In (Figure 1), each capacitor has C 4.00 F...
CChapter 18-Homework Problem 18.46 Part C Constants In (Figure 1), each capacitor has C 4.00 F and V-24.5V Calculate the charge on Ca Express your answer in microcoulombs to three significant figures. uC Figure 1of1 Submit Part D Calculate the charge on Ca Express your answer in microcoulombs to three significant figures Submit
Part A Constants In (Figure 1), each capacitor has C-4.10 μF and Vab 25.0V Calculate the...
Part A Constants In (Figure 1), each capacitor has C-4.10 μF and Vab 25.0V Calculate the charge on C Express your answer in microcoulombs to three significant figures. AC Submit Figure of 1 Incorrect, Try Again; One attempt remaining | C. Part B c, Calculale the charge on C2 Express your answer in microcoulombs to three significant figures. AC Submit Request Answer Constants Part C In (Figure 1), each capacitor has C-4.10 μF and Va-25.0V Calculate the charge on Cs...
Part A Constants In Figure 1), each capacitor has d-4.10 μF and ab 25.0V Calculate the...
Part A Constants In Figure 1), each capacitor has d-4.10 μF and ab 25.0V Calculate the charge on Ci Express your answer in microcoulombs to three significant figures. Previous Answers Request Answer Figure 1 of 1 incorrect; Try Again; 5 attempts remaining -Η Part B C, Calculate the charge on C Express your answer in microcoulombs to three significant figures. Q2 AC Submit Part C Calculate the charge on Ca Express your answer in microcoulombs to three significant figures. Constants...
Part A Constants In (Figure 1), each capacitor has C-375 μF and Vab 32.5V Calculate the...
Part A Constants In (Figure 1), each capacitor has C-375 μF and Vab 32.5V Calculate the charge on C1 Express your answer in microcoulombs to three significant figures. Figure 1 of 1 Submit uest Answer Part B Calculate the charge on C2 Cl Express your answer in microcoulombs to three significant figures. Q2 Submit uest Answer Part C Calculate the charge on C3 Express your answer in microcoulombs to three significant figures. Q3 HC Submit Request Answer Part D Calculate...
roblem 18.46 Part A Calculate the charge on C Express your answer in microcoulombs to three...
roblem 18.46 Part A Calculate the charge on C Express your answer in microcoulombs to three significant figures. In (Figure 1) each capacitor has C-3 80 μF and Vab 28.5V Figure 1 of 1 uC C. C2 Submit Request Answer Part B Calculate the charge on C Express your answer in microcoulombs to three significant figures. Problem 18.46 Part C Constants In (Figure 1). each capacitor has C- 380 b28.5V Calculate the charge on Cs Express your answer in microcoulombs...
I need help with part D The rectangular-shaped current pulse shown in the following figure is...
I need help with part D
The rectangular-shaped current pulse shown in the following figure is applied to a 0Capacitor. The initial voltage on the capacitor is a sv drop in the reference direction of the current i(mA) 160 100 20 30 40 S0 Part A Derive the expression for the capacitor voltage for the time interval o s i s 10ps. Express your answer in terms of , where is in seconds. u-500000t +15V Previous Answers Correct PartB Derive...
The current shown in (Figure 1) is applied to a 600 nF capacitor. The initial voltage...
The current shown in (Figure 1) is applied to a 600 nF capacitor. The initial voltage on the capacitor is zero. Part A Find the charge on the capacitor at t = 30 us. Express your answer to three significant figures and include the appropriate units. 4 = 4.50 C Submit Previous Answers Correct Part B Find the voltage on the capacitor at t = 50 js. Express your answer to three significant figures and include the appropriate units. HA...
Part A: If V = 16V is applied across the whole network(Figure 1) , calculate the...
Part A: If V
= 16V
is applied across the whole network(Figure
1)
, calculate the voltage across each capacitor.
Express your answers using three significant figures separated by
commas. (**Answer should be: v1, v2, v3)
Part B:
Calculate the charge on each capacitor.
Express your answers using three significant figures separated by
commas.
If V = 16V is applied across the whole network(Figure 1) , calculate the voltage across each capacitor. Express your answers using three significant figures separated...

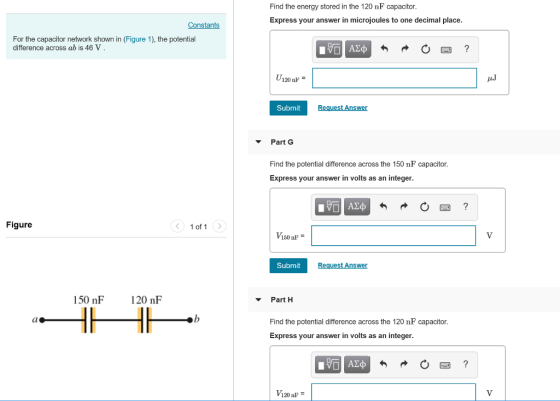

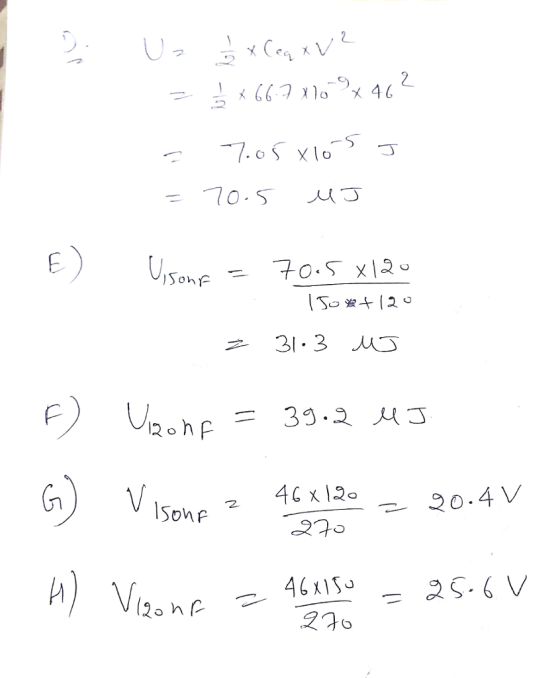

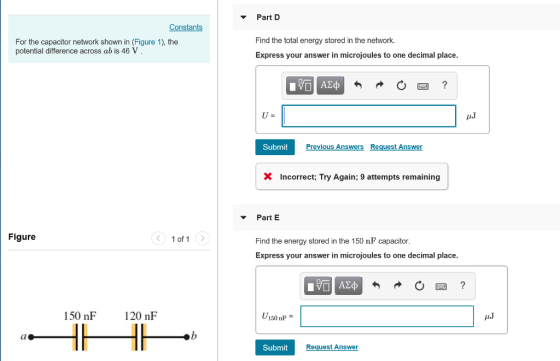

For the capacitor network shown in (Figure 1) , the potential
difference across ab is 48 V .Find the charge on the 150 nFcapacitor.Find the charge on the 120 nFcapacitor.Find the total energy stored in the network.Find the energy stored in the 150nF capacitor.Find the energy stored in the 120nF capacitor.Find the potential difference across the 150 nF capacitor.Find the potential difference across the 120 nF capacitor.
(Figure 1)ln the figure are shown three capacitors with What is the charge Qi on capacitor Cr? View Available Hint(s) c, 6.00 ??, C-3.00 ??, C3 5.00 ?F. The network is connected to an applied potential Vab. After the charges on the capacitors have reached their final values, the charge Q2 on the second capacitor is 40.0 uC AC Submit PartB Figure 1 of 1 What is the charge on capacitor C3? Express your answer in microcoulombs to three significant...
CChapter 18-Homework Problem 18.46 Part C Constants In (Figure 1), each capacitor has C 4.00 F and V-24.5V Calculate the charge on Ca Express your answer in microcoulombs to three significant figures. uC Figure 1of1 Submit Part D Calculate the charge on Ca Express your answer in microcoulombs to three significant figures Submit
Part A Constants In (Figure 1), each capacitor has C-4.10 μF and Vab 25.0V Calculate the charge on C Express your answer in microcoulombs to three significant figures. AC Submit Figure of 1 Incorrect, Try Again; One attempt remaining | C. Part B c, Calculale the charge on C2 Express your answer in microcoulombs to three significant figures. AC Submit Request Answer Constants Part C In (Figure 1), each capacitor has C-4.10 μF and Va-25.0V Calculate the charge on Cs...
Part A Constants In Figure 1), each capacitor has d-4.10 μF and ab 25.0V Calculate the charge on Ci Express your answer in microcoulombs to three significant figures. Previous Answers Request Answer Figure 1 of 1 incorrect; Try Again; 5 attempts remaining -Η Part B C, Calculate the charge on C Express your answer in microcoulombs to three significant figures. Q2 AC Submit Part C Calculate the charge on Ca Express your answer in microcoulombs to three significant figures. Constants...
Part A Constants In (Figure 1), each capacitor has C-375 μF and Vab 32.5V Calculate the charge on C1 Express your answer in microcoulombs to three significant figures. Figure 1 of 1 Submit uest Answer Part B Calculate the charge on C2 Cl Express your answer in microcoulombs to three significant figures. Q2 Submit uest Answer Part C Calculate the charge on C3 Express your answer in microcoulombs to three significant figures. Q3 HC Submit Request Answer Part D Calculate...
roblem 18.46 Part A Calculate the charge on C Express your answer in microcoulombs to three significant figures. In (Figure 1) each capacitor has C-3 80 μF and Vab 28.5V Figure 1 of 1 uC C. C2 Submit Request Answer Part B Calculate the charge on C Express your answer in microcoulombs to three significant figures. Problem 18.46 Part C Constants In (Figure 1). each capacitor has C- 380 b28.5V Calculate the charge on Cs Express your answer in microcoulombs...
I need help with part D
The rectangular-shaped current pulse shown in the following figure is applied to a 0Capacitor. The initial voltage on the capacitor is a sv drop in the reference direction of the current i(mA) 160 100 20 30 40 S0 Part A Derive the expression for the capacitor voltage for the time interval o s i s 10ps. Express your answer in terms of , where is in seconds. u-500000t +15V Previous Answers Correct PartB Derive...
The current shown in (Figure 1) is applied to a 600 nF capacitor. The initial voltage on the capacitor is zero. Part A Find the charge on the capacitor at t = 30 us. Express your answer to three significant figures and include the appropriate units. 4 = 4.50 C Submit Previous Answers Correct Part B Find the voltage on the capacitor at t = 50 js. Express your answer to three significant figures and include the appropriate units. HA...
Part A: If V
= 16V
is applied across the whole network(Figure
1)
, calculate the voltage across each capacitor.
Express your answers using three significant figures separated by
commas. (**Answer should be: v1, v2, v3)
Part B:
Calculate the charge on each capacitor.
Express your answers using three significant figures separated by
commas.
If V = 16V is applied across the whole network(Figure 1) , calculate the voltage across each capacitor. Express your answers using three significant figures separated...
