If the applied force P = 250 N, determine (a) the required minimum compression in the...

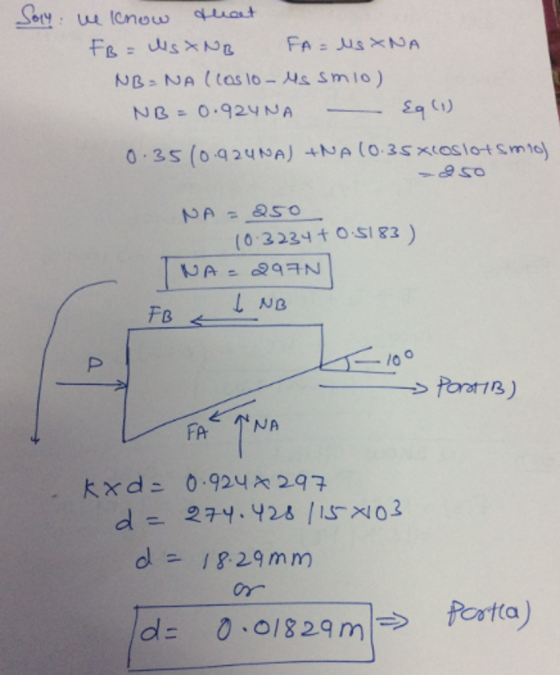

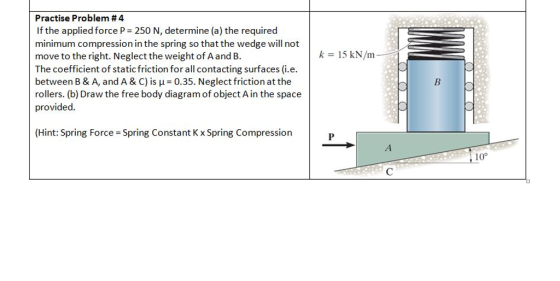

If the applied force P = 250 N, determine (a) the required minimum compression in the spring so that the wedge will not move to the right. Neglect the weight of A and B. The coefficient of static friction for all contacting surfaces (i.e. between B & A, and A & C) is ? = 0.35. Neglect friction at the rollers. (b) Draw the free body diagram of object A. (Final Answer = 0.0183 m)
Homework Answers
Add Answer to:
If the applied force P = 250 N, determine (a) the required
minimum compression in the...
REVIEW (Figure 1) Part A Determine the minimum applied force P required to move wedge A...
REVIEW (Figure 1) Part A Determine the minimum applied force P required to move wedge A to the right. The spring is compressed a distance of 180 mm. Neglect the weight of A and B. The coefficient of static friction for all contacting surfaces is His = 0.35. Neglect friction at the rollers. Express your answer to three significant figures and include the appropriate units. Figure ? НА 1 of 1 P= Value Units k - 15 kN/m Submit Request...
Figure Q1(b) shows a beam AD which is loaded with the force F. The coefficient of...
Figure Q1(b) shows a beam AD which is loaded with the force F.
The coefficient of static friction at the top and bottom surfaces
of the wedge are ???=0.25 and ???=0.35, respectively. Neglect the
weight, size of the wedge and the thickness of the beam.
Considering the value of F from the Table Q1(b) attached, answer
the following;
(i) Draw the free body diagram of the given problem with all forces
and support reactions.
(2 marks)
(ii) Determine the horizontal...
9. Friction & Wedges Determine the minimum force, P, required to lift the 200 lb crate....
9. Friction & Wedges Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20°
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are...
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° Р
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are...
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers, both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20" Р
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are...
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° P-
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are...
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° Р
Given: A 375 lb block and wedge system (two configurations, see below) Determine the minimum force...
Given: A 375 lb block and wedge system (two configurations, see below) Determine the minimum force to lift the block for each configuration. The coefficient of static friction is 0.28 for all contact surfaces. Neglect the weight of the wedges. Retain three significant digits in your final answer. Find: For your diagram, carefully and neatly sketch required FBDs. 375 lb 375 lb 10° 10°
3. Friction (Total: 30 marks) a) Draw the free body diagram of the two boxes A and B (10 marks) b) If the coefficient o...
3. Friction (Total: 30 marks) a) Draw the free body diagram of the two boxes A and B (10 marks) b) If the coefficient of static friction at all contacting surfaces is u, determine the inclination e at which the identical blocks, each of weight W, begin to slide. (20 marks) A B
3. Friction (Total: 30 marks) a) Draw the free body diagram of the two boxes A and B (10 marks) b) If the coefficient of static friction...
Determine the minimum force P required to move the 50-kg block to the right. The coefficient...
Determine the minimum force P required to move the 50-kg block to the right. The coefficient of static friction between the block and the surface is ui = 0.6 and the coefficient of static friction between the peg and the rope is p2 = 0.3. M2 50 kg
REVIEW (Figure 1) Part A Determine the minimum applied force P required to move wedge A to the right. The spring is compressed a distance of 180 mm. Neglect the weight of A and B. The coefficient of static friction for all contacting surfaces is His = 0.35. Neglect friction at the rollers. Express your answer to three significant figures and include the appropriate units. Figure ? НА 1 of 1 P= Value Units k - 15 kN/m Submit Request...
Figure Q1(b) shows a beam AD which is loaded with the force F.
The coefficient of static friction at the top and bottom surfaces
of the wedge are ???=0.25 and ???=0.35, respectively. Neglect the
weight, size of the wedge and the thickness of the beam.
Considering the value of F from the Table Q1(b) attached, answer
the following;
(i) Draw the free body diagram of the given problem with all forces
and support reactions.
(2 marks)
(ii) Determine the horizontal...
9. Friction & Wedges Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20°
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° Р
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers, both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20" Р
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° P-
Determine the minimum force, P, required to lift the 200 lb crate. The two wedges are separated by smooth rollers; both wedge surface from 20° angles from a horizontal surface. The coefficient of friction between the wedges and all other surfaces is 0.4. 20° Р
Given: A 375 lb block and wedge system (two configurations, see below) Determine the minimum force to lift the block for each configuration. The coefficient of static friction is 0.28 for all contact surfaces. Neglect the weight of the wedges. Retain three significant digits in your final answer. Find: For your diagram, carefully and neatly sketch required FBDs. 375 lb 375 lb 10° 10°
3. Friction (Total: 30 marks) a) Draw the free body diagram of the two boxes A and B (10 marks) b) If the coefficient of static friction at all contacting surfaces is u, determine the inclination e at which the identical blocks, each of weight W, begin to slide. (20 marks) A B
3. Friction (Total: 30 marks) a) Draw the free body diagram of the two boxes A and B (10 marks) b) If the coefficient of static friction...
Determine the minimum force P required to move the 50-kg block to the right. The coefficient of static friction between the block and the surface is ui = 0.6 and the coefficient of static friction between the peg and the rope is p2 = 0.3. M2 50 kg
