Question

In Matlab:

You have been tasked with expanding the steam tables. The tables are used to calculate the amount of energy, work in an engine cycle. To do this the following data is given to you.

T=[100, 150, 200, 250, 300, 400, 500];

Cv=[1.6958, 1.9364, 2.172, 2.46, 2.639, 3.103, 3.565];

U=[2506.7, 2582.8, 2658.1,2733.7, 2810.4, 2967.9, 3131.6];

T is the temperature in degrees C, Cv is the specific volume in m³/kg and U is the Internal energy in kJ/kg.

a. Plot the Specific volume and the Internal Energy against Temperature on horizontal subplots use both a symbol and a line for plotting (different symbols for each)

b. Verify that both are linear.

c. Calculate the slope for all the points given of Specific volume and internal energy with respect to Temperature.

d. Average each of the slopes

e. Use that value to calculate the Cv and U at temperatures of 700, 800, 900 degrees C

f. Plot them together with the previous data, making sure they have different symbols than used before

Answer 1

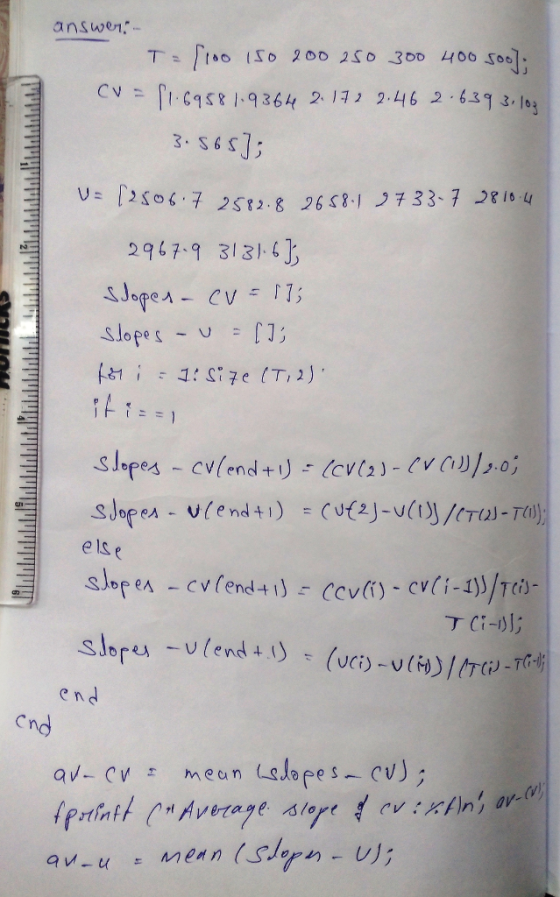

answen tso So 200 2S0 300 400 so] る. SASJ: 2947q 313 els e e nd e n d Cnd

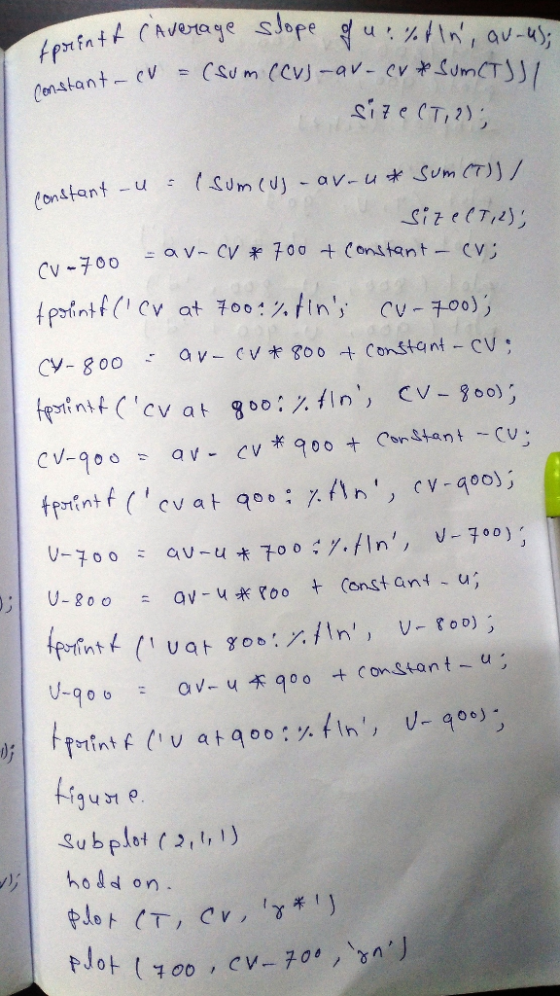

Cv V-700 av ← u木70:7.fln", V-ヌ。DY, ミ o O 94 31 P 3ubplet 3,,)

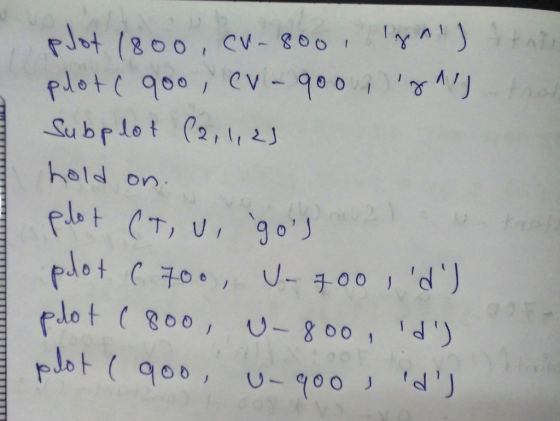

,on plot( 900 / CV- 900 Subp lot 02, hold on J-チ。 plot goo Ug 00) V-900 'd 서イ チロロ
