Find the equivalent resistance of the combination of resistors shown in the figure.

Question

Question

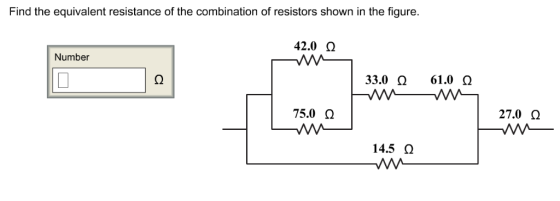

Find the equivalent resistance of the combination of resistors shown in the figure 42.0 Ω Number 33.0 Ω 61.0 Ω 27.0 Ω 75.0 Ω

science Advanced-Physics

Answer 1

✔ Recommended Answer

Answer #1

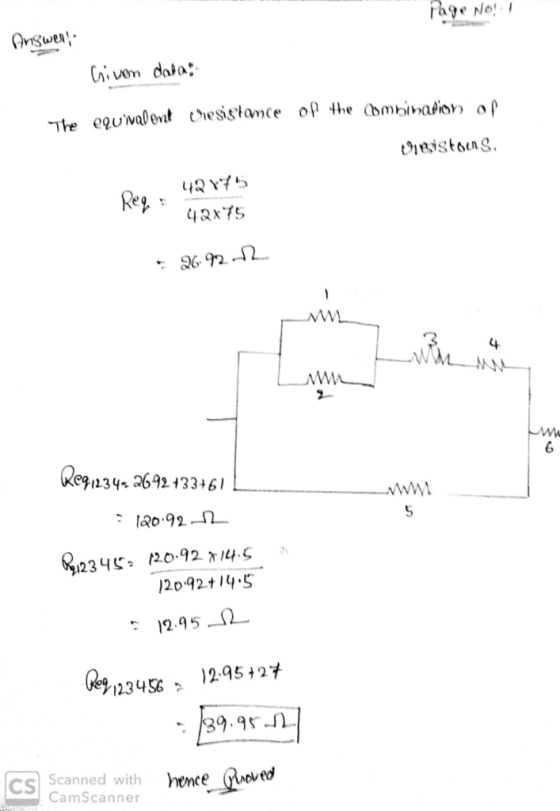

Page Ne 42KYS 나 6 Key,134 3692133461 20924.S 12.95 n12-95 7 399Sn Cs Scanned with CamScanner hence (Roved

Answer 2

Similar Homework Help Questions

Find the equivalent resistance of the combination of resistors shown in the figure below. (R, =...

Find the equivalent resistance of the combination of resistors shown in the figure below. (R, = 1.42 μΩ, R, = 22.6 μ.Ω.) μΩ ξ1.50 μ2 8.00 μ. 3.50 μαξ
Find the equivalent resistance of the combination of resistors shown in the figure below. (R =...

Find the equivalent resistance of the combination of resistors shown in the figure below. (R = 1.82 A, R2 = 13.6 765 x Did you break the circuit into simpler combinations of series and parallel resistors? Did you draw a reduced diagram a 31.50 p.12 8.00 un 3.50 p
Find the equivalent resistance of the combination of resistors shown in the figure below. (R1 =...

Find the equivalent resistance of the combination of resistors shown in the figure below. (R1 = 1.82 μ., R2 = 23.6 μ.) μΩ R1 ξ MW 1.50 μ2 8.00 μ. 3.50 μ2 0.75 μ2 & 8 R2

Find the equivalent resistance of the combination of resistors shown above.

Find the equivalent resistance of the combination of resistors shown above.R 1+R 2+R3(1 / R1+1 / R2+1 / R3)^{-1}R1+(1 / R2+1 / R3)^{-1}Find the equivalent resistance of the resistors shown above.(1 / R1+1 / R2)^{-1}+R3+R4R1+R2+(1 / R3+1 / R4)^{-1}R1+R2+R3+R4Assume the equivalent resistance in question 1 was 10 Ω and the equivalent resistance in question 2 was 40 Ω, and the same resistors were used for this new system. Determine the equivalent resistance of this system.
1) for the combination of resistors shown, find the equivalent resistance between points A and B....

1) for the combination of resistors shown, find the equivalent resistance between points A and B. Req= __ ohms see figure 3 (attached) 2) for the set up shown, find the equivalent resistance between points A and B. (See figure 4 attached) Req= ___ ohms
Find the equivalent resistance of the combination of resistors R1 = 42.0 , R2 = 75.0...

Find the equivalent resistance of the combination of resistors R1 = 42.0 , R2 = 75.0 N, RS = 33.0 12, R = 61.00, Rs - 15.5 12, and R = 27.0 2, as shown in the figure. equivalent resistance:

Find the equivalent resistance of the combination of resistors R1 = 42.0 12, R2 = 75.0...

Find the equivalent resistance of the combination of resistors R1 = 42.0 12, R2 = 75.0 N2, R2 = 33.0 N2, R4 = 61.0 12, R5 = 13.5 12, and Ro = 35.0 N, as shown in the figure. unui Ø equivalent resistance: | 48.144
For the combination of resistors shown, findthe equivalent resistance between points A and B. Express your...

For the combination of resistors shown, findthe equivalent resistance between points A and B. Express your answer in Ohms. If the circuit is, as shown below find the equivalent resistance between points Aand B.
What is the equivalent resistance of group (a) of resistors shown in the figure? (Figure 1)...

What is the equivalent resistance of group (a) of resistors shown in the figure? (Figure 1) Express your answer using two significant figures. Req = ? Part B What is the equivalent resistance of group (b) of resistors shown in the figure? Express your answer using two significant figures.
