Add Answer to:

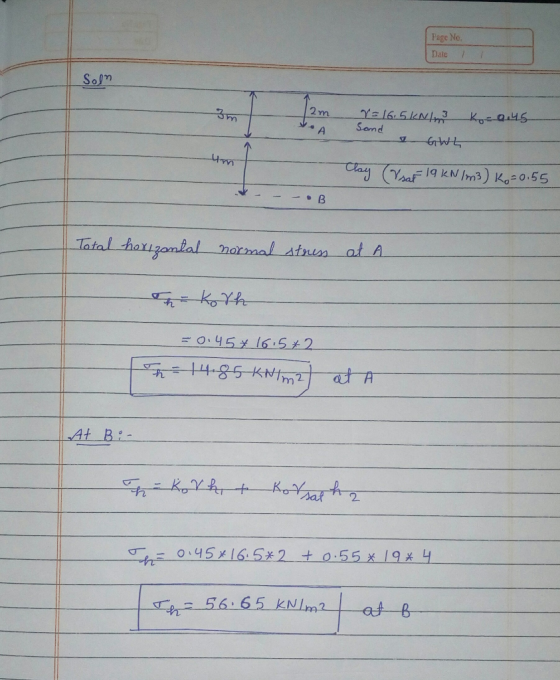

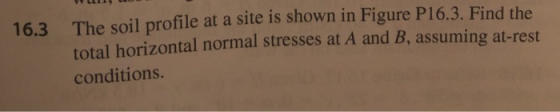

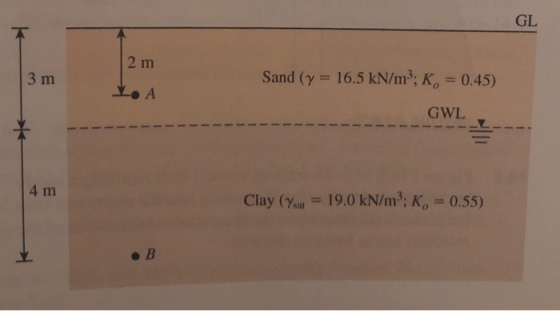

YUUID 16.3 The soil profile at a site is shown in Figure P16.3. Find the total...
Q2. A borehole at a site reveals the soil profile shown in Figure 2. Plot the...
Q2. A borehole at a site reveals the soil profile shown in Figure 2. Plot the distribution of vertical total and effective stresses with depth. Assume pore air pressure is zero and the pore-water pressure due to capillarity is negative as shown in Figure 3 Elevation (m) Very fine wet sand with silt w=596, S = 40% Fine sand saturated by capillary action Fine sand, 12% 2.0 5.4 Soft blue clay, w= 28% 20.6 Figure 2 Soil Porewater pressure distribution
soil Q4) From the figure and soil profile as below find the following: 1) the final...
soil
Q4) From the figure and soil profile as below find the following: 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (mv) of clay layer. mass=2x106 kg footing=10m x 8m y=16.62kN/m3 3m 2m 7m 10m Sand and graver Ysat.=19.8kN/m Clay Cc=0.33,w=30%, Gs=2.7, Ysat.=19.8kN/m3 sand and gravel 4m
soil mechanics Q4) From the figure and soil profile as below find the following: 1) the...
soil mechanics
Q4) From the figure and soil profile as below find the following: 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (mv) of clay layer. mass= 2*106 kg footing =10m x 8m 3m y=16.62kN/m3 2m They WT 7m 10m Sand and graver Ysat=19.8kN/m3 Clay Cc=0.33,w=30%,Gs=2.7, Ysat=19.8kN/m3 sand and gravel 4m
Q1/ From the figure and soil profile as below find the following : 1) the final...
Q1/ From the figure and soil profile as below find the following : 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (my) of clay layer mass=2x106 kg footing =10m x 8m y=16.62kN/m3 Зm 2m Ty WT 7m 10m Sand and gravel Ysat=19.8kN/m3 Clay Cc=0.33,w=30%,Gs=2.7, Ysat.=19.8kN/m3 sand and gravel 4m
Question 3: The following figure shows the soil profile at a site for a proposed building....
Question 3: The following figure shows the soil profile at a site for a proposed building. The soil is a homogeneous, poorly graded sand. At the soil element A (as shown in the figure), if the increase in lateral effective stress is 20% of the increase in vertical effective stress, the soil element will failure. The coefficient of lateral earth pressure at rest. Ko is 0.5. Assume all stresses are principal stresses. The upper 4 m soil shares the same...
A soil profile is shown below. The soil sample is taken from depth of 11m, a)...
A soil profile is shown below. The soil sample is taken from depth of 11m, a) Is it OC or NC soil? b) If it is loaded with A6= 28 t/m2 calculate the settlement of clay layer. For sand Ydry = 1.75 t/m and Ysat = 2.0 t/m3 For clay Xsat = 1.9 t/m3 6'o+A6 SC 6'o+A6 CsH Сен -log 1+ Sc log 087645) 610 1+eo 610 Sc CH 1+0 -log 6) + CCH 1+ -log (9729) 610 Sand 5m...
Example 2:3 The soil profile at a site consists of a 3 m thick sand layer...
Example 2:3 The soil profile at a site consists of a 3 m thick sand layer (Ybulk -16.5 kN/m3 sat18.5 kN/m3) underlain by a 6 m thick clay layer (w-27%, Gs-270, m,-0.31 MPa", cv-2.6 m2/year), which is underlain by a gravel layer. A 3 m compacted fill with a unit weight of 20 kN/m3 is to be placed at ground level. a. What would be the final consolidation settlement? b. How long will it take for 50 mm of consolidation...
For the soil profile shown below, calculate the final settlement due to the placement of the...
For the soil profile shown below, calculate the final settlement due to the placement of the sand fill. Estimate the excess pore pressure at a depth of 1.5 m into the third clay layer 1.5 years after the fill is placed. Assume the coefficient of consolidation is Cv = 1.8 m2/yr. Fill y = 16.0 kN/m² (3m thick) Clay 1 (3m thick) Sand (0.5m thick) Clay 2 (2m thick) Sand (0.5m thick) Clay 3 (4m thick) Sand (0.5m thick) eo...
In the figure below, the natural soil profile consists of sand overlying clay overlying sand overlying bedrock. A water...
In the figure below, the natural soil profile consists of sand
overlying clay overlying sand overlying bedrock. A
water table is present 1 m beneath the surface of the natural
ground. If 4 m of consistent fill material (γfill = 15
kN/m3) was placed on top of this soil profile that covered a
large area, determine:
(a) The consolidation settlement of the clay layer (using 4
equal layers in your calculation), and
(b) The time (in days) for this consolidation...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site....
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
Q2. A borehole at a site reveals the soil profile shown in Figure 2. Plot the distribution of vertical total and effective stresses with depth. Assume pore air pressure is zero and the pore-water pressure due to capillarity is negative as shown in Figure 3 Elevation (m) Very fine wet sand with silt w=596, S = 40% Fine sand saturated by capillary action Fine sand, 12% 2.0 5.4 Soft blue clay, w= 28% 20.6 Figure 2 Soil Porewater pressure distribution
soil
Q4) From the figure and soil profile as below find the following: 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (mv) of clay layer. mass=2x106 kg footing=10m x 8m y=16.62kN/m3 3m 2m 7m 10m Sand and graver Ysat.=19.8kN/m Clay Cc=0.33,w=30%, Gs=2.7, Ysat.=19.8kN/m3 sand and gravel 4m
soil mechanics
Q4) From the figure and soil profile as below find the following: 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (mv) of clay layer. mass= 2*106 kg footing =10m x 8m 3m y=16.62kN/m3 2m They WT 7m 10m Sand and graver Ysat=19.8kN/m3 Clay Cc=0.33,w=30%,Gs=2.7, Ysat=19.8kN/m3 sand and gravel 4m
Q1/ From the figure and soil profile as below find the following : 1) the final consolidation for clay layer under the center of bridge pier as shown below. use the approximate method to calculate the increasing stress in soil. 2) the coefficient of volume compressibility (my) of clay layer mass=2x106 kg footing =10m x 8m y=16.62kN/m3 Зm 2m Ty WT 7m 10m Sand and gravel Ysat=19.8kN/m3 Clay Cc=0.33,w=30%,Gs=2.7, Ysat.=19.8kN/m3 sand and gravel 4m
Question 3: The following figure shows the soil profile at a site for a proposed building. The soil is a homogeneous, poorly graded sand. At the soil element A (as shown in the figure), if the increase in lateral effective stress is 20% of the increase in vertical effective stress, the soil element will failure. The coefficient of lateral earth pressure at rest. Ko is 0.5. Assume all stresses are principal stresses. The upper 4 m soil shares the same...
A soil profile is shown below. The soil sample is taken from depth of 11m, a) Is it OC or NC soil? b) If it is loaded with A6= 28 t/m2 calculate the settlement of clay layer. For sand Ydry = 1.75 t/m and Ysat = 2.0 t/m3 For clay Xsat = 1.9 t/m3 6'o+A6 SC 6'o+A6 CsH Сен -log 1+ Sc log 087645) 610 1+eo 610 Sc CH 1+0 -log 6) + CCH 1+ -log (9729) 610 Sand 5m...
Example 2:3 The soil profile at a site consists of a 3 m thick sand layer (Ybulk -16.5 kN/m3 sat18.5 kN/m3) underlain by a 6 m thick clay layer (w-27%, Gs-270, m,-0.31 MPa", cv-2.6 m2/year), which is underlain by a gravel layer. A 3 m compacted fill with a unit weight of 20 kN/m3 is to be placed at ground level. a. What would be the final consolidation settlement? b. How long will it take for 50 mm of consolidation...
For the soil profile shown below, calculate the final settlement due to the placement of the sand fill. Estimate the excess pore pressure at a depth of 1.5 m into the third clay layer 1.5 years after the fill is placed. Assume the coefficient of consolidation is Cv = 1.8 m2/yr. Fill y = 16.0 kN/m² (3m thick) Clay 1 (3m thick) Sand (0.5m thick) Clay 2 (2m thick) Sand (0.5m thick) Clay 3 (4m thick) Sand (0.5m thick) eo...
In the figure below, the natural soil profile consists of sand
overlying clay overlying sand overlying bedrock. A
water table is present 1 m beneath the surface of the natural
ground. If 4 m of consistent fill material (γfill = 15
kN/m3) was placed on top of this soil profile that covered a
large area, determine:
(a) The consolidation settlement of the clay layer (using 4
equal layers in your calculation), and
(b) The time (in days) for this consolidation...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
