Please solve clearly and understandably.
Homework Answers
Add Answer to:
Please solve clearly and understandably.

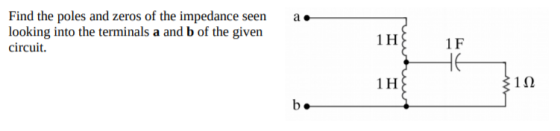

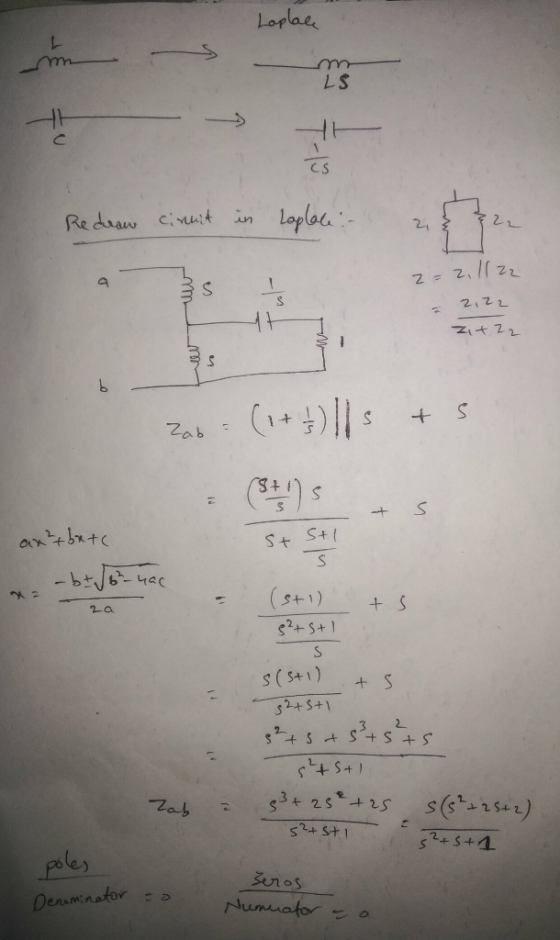

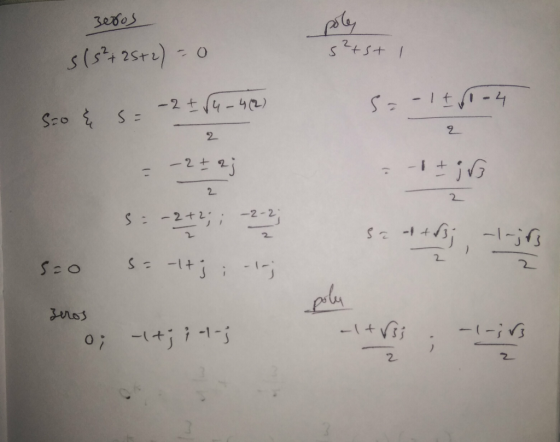

a. Find the poles and zeros of the impedance seen looking...
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a...
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a and b, where I. 9 A and R-4 Ω 6Ω RTh VTh
Poles and Zeros For the transfer function given: 0.85 8-44.64 G(s) = 긁+0.83 12.00 Part A-Poles Find the system pole 8 Submit Part B-Poles Find the system pole s2 Submit Part C-Zeros Find the system...
Poles and Zeros For the transfer function given: 0.85 8-44.64 G(s) = 긁+0.83 12.00 Part A-Poles Find the system pole 8 Submit Part B-Poles Find the system pole s2 Submit Part C-Zeros Find the system zero Submit Part D-Type of Response Based on the locations af the poles and zeros, what will be the response to a unit step inpue? O Harmonic Oscillations (Marginally stable) Oscillatory motion with exponential decay tending to zero (stable O Critically damped exponential decay (stable)...
please write neatly Find Poles and zeros, sketch the magnitude (dB) and phase angle plot for...
please write neatly
Find Poles and zeros, sketch the magnitude (dB) and phase angle plot for the following transfer function with proper scales 400m s(s + 2n) A(S)s (s + 0.2n)2(s + 20m) (s + 200r) (convert to frequency, Hz, from radian frequency) Poles: Zeros: Draw the bode plots in scale, and mark all slopes and dB value for slope 0 (convert to frequency, Hz, from radian frequency) Freq(Hz) Freq(Hz) 80
please help to solve this. Thank you A3. What is the poles of the transfer function...
please help to solve this. Thank you
A3. What is the poles of the transfer function G(s) = 1/(5+6)(+9)(8+10)? (5 marks) A4. What is the poles and zeros of the transfer function G(s) = (s-5)(s-7)? (5 marks) A5. Find the Transfer function C/R of the block diagram given below (5 marks) G. ROG. G oc Н. A6. What are the characteristics of negative feedback? (around 50 words) (5 marks)
10.5 For the circuit shown, find a. The equivalent impedance seen by the source. b. The...
10.5 For the circuit shown, find a. The equivalent impedance seen by the source. b. The steady-state response of the voltage across the resistor, vR(). DIGILENT 2012 Digilent, Inc. Real Analog 0.1H 0 20cos(100 30
Question 1 For the circuit shown in figure 1; i. Find the transfer impedance function, H(s)...
Question 1 For the circuit shown in figure 1; i. Find the transfer impedance function, H(s) = Vds(s) Find the poles and zeros for this transfer function and plot them on the s - Find the magnitude of the transfer function in decibels. [10] s-plane [8] ii [3] 2H 20 20 2 H Figure Question 2 The hybrid parameters (h-parameters) for the two -port network circuit in figure 2 are; 5 h=2 0.05 Find the equivalent impedance parameters (z-parameters) Find...
18. Find the impedance of the circuit shown. Show full work to solve, thanks 18. Find...
18. Find the impedance of the circuit shown.
Show full work to solve, thanks
18. Find the impedance of the circuit shown. Show full work to solve, thanks
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your...
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees 10Ω /10 Ω ! Norton's equivalent current IN Norton's equivalent impedance Zeq
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range...
Given ℎ(t) = (e-t + e-2t) u(t) find: a) H(s) transfer function b) Poles and Zeros...
Given ℎ(t) = (e-t + e-2t) u(t) find: a) H(s) transfer function b) Poles and Zeros location c) System stable or unstable? d) Differential Equation associated with the system
alpha = 5.0 beta = 7.1 zeta = 6.9 PROBLEM 1 (20 points). Given the filter with transfer function +28-1+-2 11(2) = 1-(α/10)2-4 (a2/100):-2 Use MATLAB to Find the zeros and poles of H() Plot the pole...
alpha = 5.0
beta = 7.1
zeta = 6.9
PROBLEM 1 (20 points). Given the filter with transfer function +28-1+-2 11(2) = 1-(α/10)2-4 (a2/100):-2 Use MATLAB to Find the zeros and poles of H() Plot the poles and zeros on the -plane. The pot should include the uit circle. Plot the magnitude response (in dB) Plot the phase response. Deliverables: Your MATLAB code used to solve Problem 1 and all the generated plots.
PROBLEM 1 (20 points). Given the filter...
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a and b, where I. 9 A and R-4 Ω 6Ω RTh VTh
Poles and Zeros For the transfer function given: 0.85 8-44.64 G(s) = 긁+0.83 12.00 Part A-Poles Find the system pole 8 Submit Part B-Poles Find the system pole s2 Submit Part C-Zeros Find the system zero Submit Part D-Type of Response Based on the locations af the poles and zeros, what will be the response to a unit step inpue? O Harmonic Oscillations (Marginally stable) Oscillatory motion with exponential decay tending to zero (stable O Critically damped exponential decay (stable)...
please write neatly
Find Poles and zeros, sketch the magnitude (dB) and phase angle plot for the following transfer function with proper scales 400m s(s + 2n) A(S)s (s + 0.2n)2(s + 20m) (s + 200r) (convert to frequency, Hz, from radian frequency) Poles: Zeros: Draw the bode plots in scale, and mark all slopes and dB value for slope 0 (convert to frequency, Hz, from radian frequency) Freq(Hz) Freq(Hz) 80
please help to solve this. Thank you
A3. What is the poles of the transfer function G(s) = 1/(5+6)(+9)(8+10)? (5 marks) A4. What is the poles and zeros of the transfer function G(s) = (s-5)(s-7)? (5 marks) A5. Find the Transfer function C/R of the block diagram given below (5 marks) G. ROG. G oc Н. A6. What are the characteristics of negative feedback? (around 50 words) (5 marks)
10.5 For the circuit shown, find a. The equivalent impedance seen by the source. b. The steady-state response of the voltage across the resistor, vR(). DIGILENT 2012 Digilent, Inc. Real Analog 0.1H 0 20cos(100 30
Question 1 For the circuit shown in figure 1; i. Find the transfer impedance function, H(s) = Vds(s) Find the poles and zeros for this transfer function and plot them on the s - Find the magnitude of the transfer function in decibels. [10] s-plane [8] ii [3] 2H 20 20 2 H Figure Question 2 The hybrid parameters (h-parameters) for the two -port network circuit in figure 2 are; 5 h=2 0.05 Find the equivalent impedance parameters (z-parameters) Find...
18. Find the impedance of the circuit shown.
Show full work to solve, thanks
18. Find the impedance of the circuit shown. Show full work to solve, thanks
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees 10Ω /10 Ω ! Norton's equivalent current IN Norton's equivalent impedance Zeq
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range...
alpha = 5.0
beta = 7.1
zeta = 6.9
PROBLEM 1 (20 points). Given the filter with transfer function +28-1+-2 11(2) = 1-(α/10)2-4 (a2/100):-2 Use MATLAB to Find the zeros and poles of H() Plot the poles and zeros on the -plane. The pot should include the uit circle. Plot the magnitude response (in dB) Plot the phase response. Deliverables: Your MATLAB code used to solve Problem 1 and all the generated plots.
PROBLEM 1 (20 points). Given the filter...
