Question

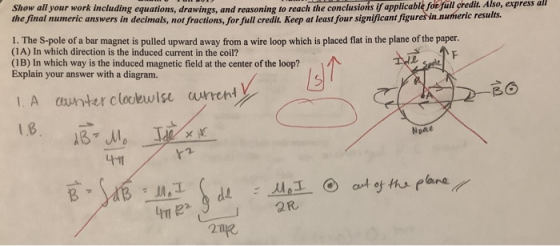

Show all your work including equations, drawings, and reasoning to reach the conclusions if applicable for full crean. 130, express the final numerle answers in decimals, not fractions. for full credit. Keep at least four significant figures in meric results. 1. The S-pole of a bar magnet is pulled upward away from a wire loop which is placed flat in the plane of the paper. (1A) In which direction is the induced current in the coil? (1B) In which way is the induced magnetic field at the center of the loop? Explain your answer with a diagram. 1.A counter clockwise wrrent, 57 1.B. 3= Mo Idexx 44 / 72 B - Sah = l. I de Mo I out of the planer 4M R2 & de AR 20

Answer 1

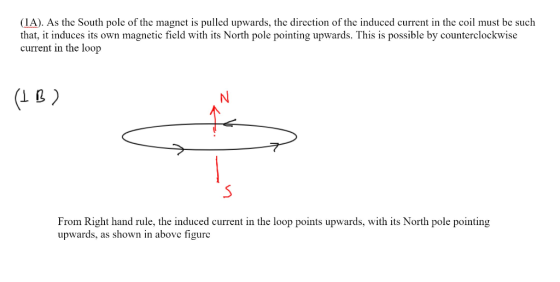

(1A). As the South pole of the magnet is pulled upwards, the direction of the induced current in the coil must be such that, it induces its own magnetic field with its North pole pointing upwards. This is possible by counterclockwise current in the loop (13) From Right hand rule, the induced current in the loop points upwards, with its North pole pointing upwards, as shown in above figure
