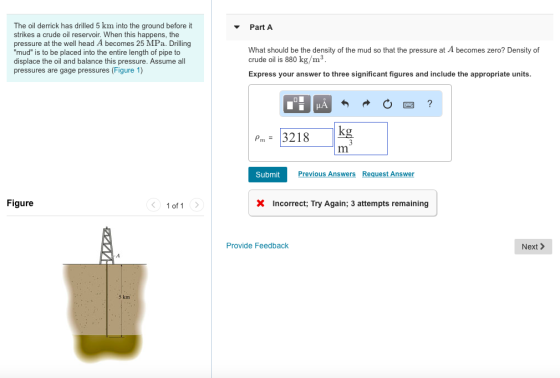

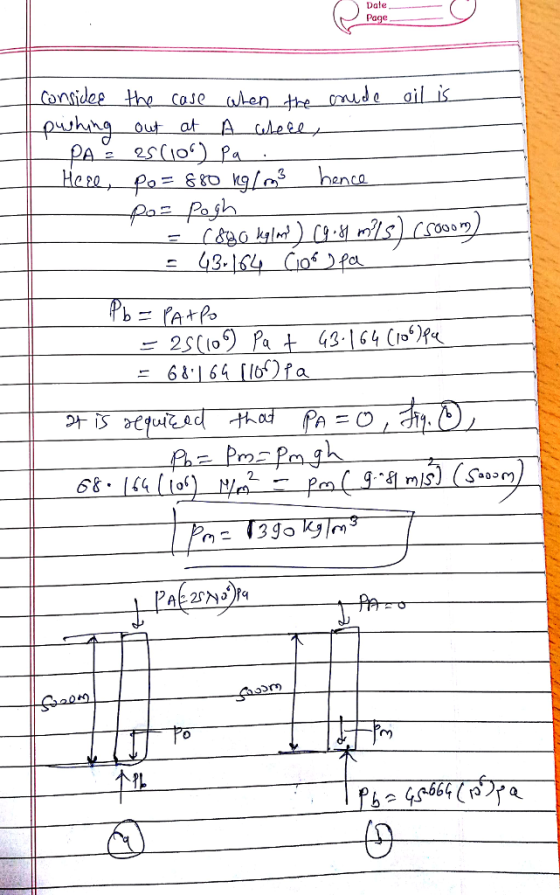

The oil derrick has drilled 5 km into the ground before it strikes a crude oil...
(a) A horizontal pipe of diameter 10 cm carries crude oil from A
to C as shown in Figure 4. At a point B, midway between A and C,
oil leaks at a volume flow rate of QL . The pressure
drop per unit length along AB is 640 Pa/m and along BC is 600 Pa/m.
Determine the leakage flow rate QL . The density of oil
is 800 kg/m3 and its dynamic viscosity is 0.1 N.s/
m2 . You...
