Question

PLZ DO NOT ACCEPT THIS QUESTION IF IT CANNOT BE ANSWERED IN A REASONABLE AMOUNT OF...

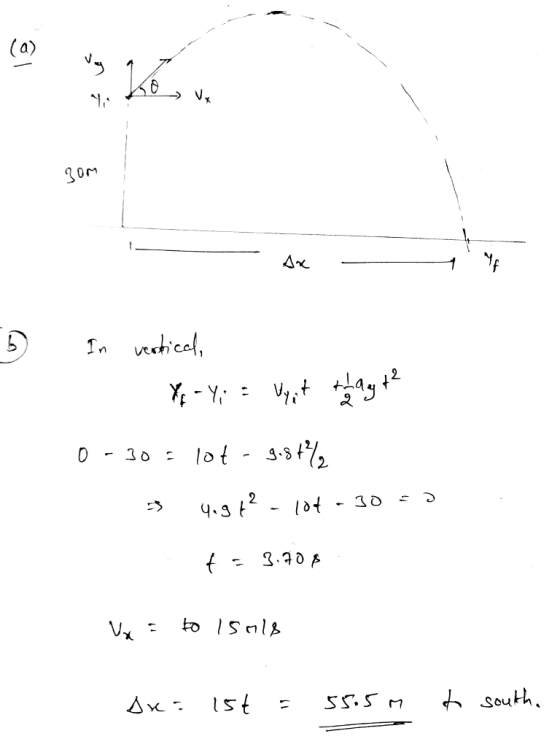

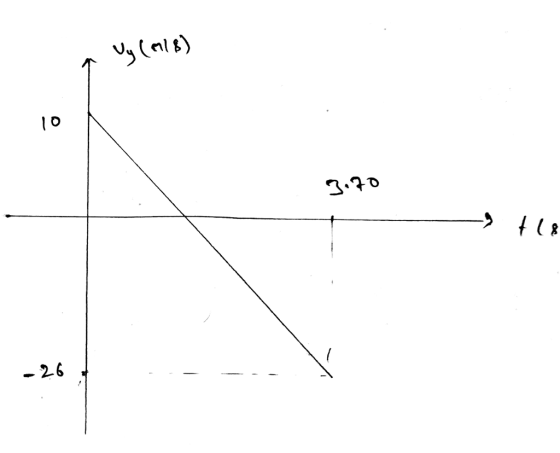

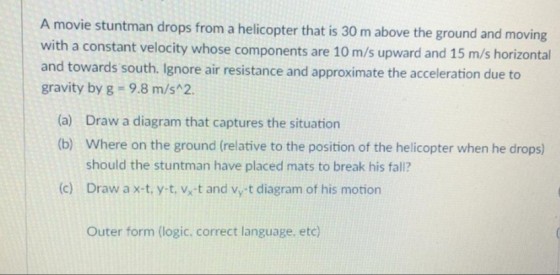

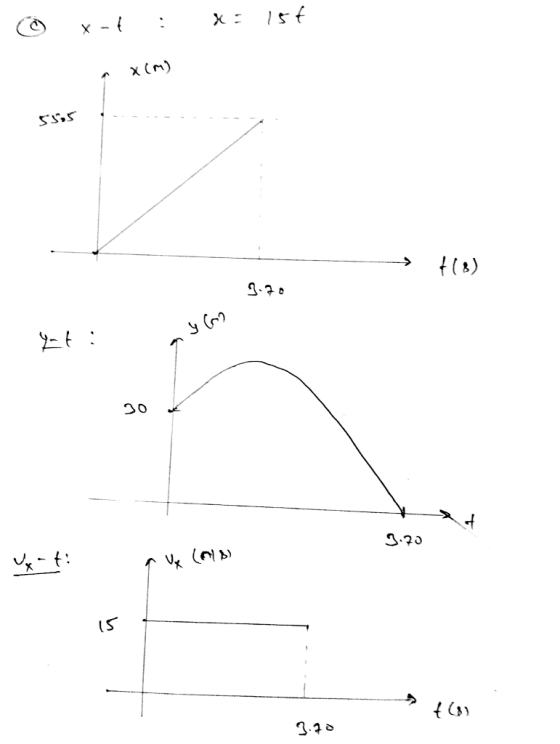

A movie stuntman drops from a helicopter that is 30 m above the ground and with a constant velocity whose components are 10 m/s upward and 15 m/s horizontal and towards south. Ignore air resistance and approximate the acceleration due to gravity by g-9.8 m/s 2. moving (a) (b) Draw a diagram that captures the situation Where on the ground (relative to the position of the helicopter when he drops) should the stuntman have placed mats to break his fall? (c) Draw ax-t, y-t, vxt and vy t diagram of his motion Outer form (logic. correct language, etc)

PLZ DO NOT ACCEPT THIS QUESTION IF IT CANNOT BE ANSWERED IN A REASONABLE AMOUNT OF TIME (1 hour).
Can you please HIGHLIGHT/BOLD letters A, B, and C that needs to be answered.
please box in any answers.
thank you!!!

0 0
Add a comment Improve this question Transcribed image text
