Question

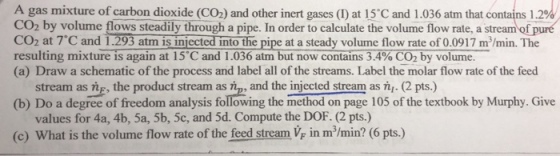

A gas mixture of carbon dioxide (CO2) and other inert gases (1) at 15°C and 1.036 atm that contains 1.2% CO2 by volume flows steadily through a pipe. In order to calculate the volume flow rate, a stream of pure CO2 at 7。C and 1.29 atma is injected intothe pipe at a steady volume flow rate of 0.0917 m3/min The resulting mixtures again at 5 Cand1.036atmbutnow contains3.4%C02byvolume. (a) Draw a schematic of the process and label all of the streams. Label the molar flow rate of the feed stream as ng, the product stream as fip, and the injected stream as n. (2 pts.) values for 4a, 4b, 5a, 5b, 5c, and 5d. Compute the DOF. (2 pts.) (b) Do a degree of freedom analysis following the method on page 105 of the textbook by Murphy. Give (c) What is the volume flow rate of the feed stream V in m'/min? (6 pts.)

Can someone please explain the part c of this problem completely thank you so much for help .

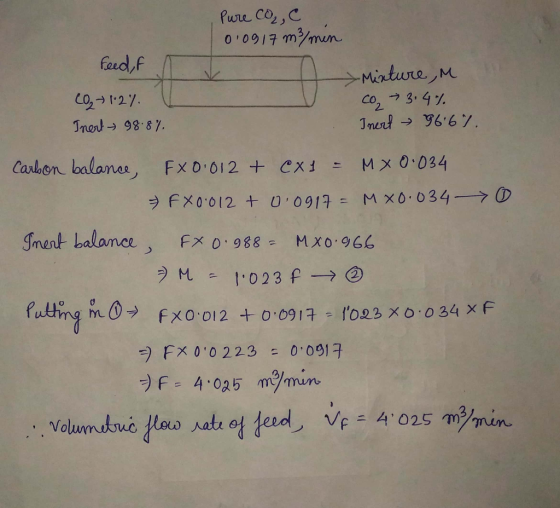

Answer 1
