The three-input MAJORITY circuit is a simple combinational circuit that outputs a logical 1 value whenever at least two of its inputs are equal to 1.

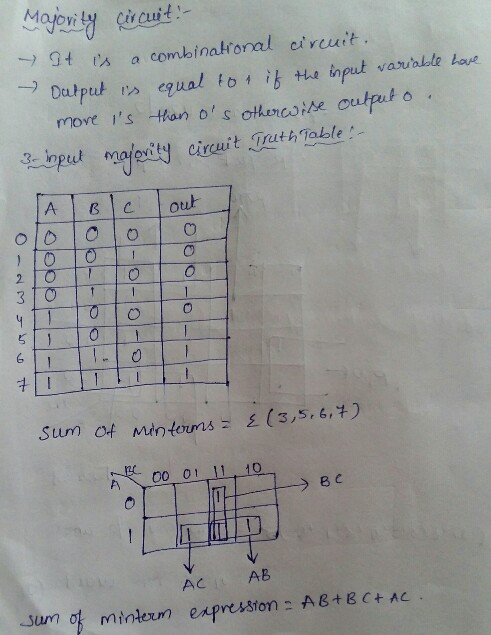

Construct a truth table illustrating the behavior of the three-input MAJORITY circuit

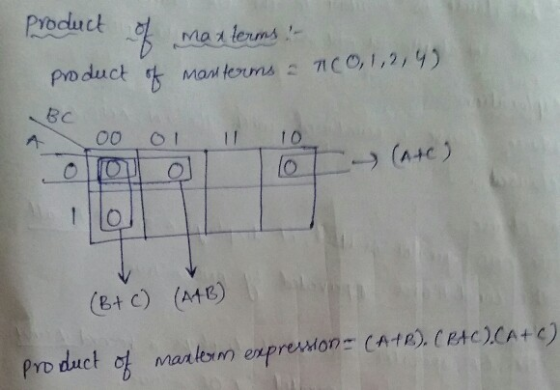

Determine the sum-of-minterms and product-of-maxterms expressions corresponding to the truth table from part A.
The three-input MAJORITY circuit is a simple combinational circuit that outputs a logical 1 value whenever...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
Design a combinational circuit which inputs a three-bit binary number, and outputs the input number PLUS two if the input is less then or equal to 3, and outputs the minus two if the input is greater than 3. This should include the truth table for the operation, the karnaugh map(s), and the resulting circuit.
2) Construct a circuit that takes a 3-bit signed integer n as input and if 1 if and only if Use the combinational circuit design process a) Draw a black box for the circuit that specifies its inputs and output b) Formalize the informal semantics of this circuit with a truth table c) Construct the boolean formula corresponding to the truth table. d) Draw the circuit corresponding to the boolean formula
2) Construct a circuit that takes a 3-bit signed...
For this problem, you are to design a simple combinational logic circuit The circuit is a 2- bit priority encoder with inputs I2 and I1 and outputs Z1 and Z0. The circuit behaves as follows: • If I2I1 = 00, then Z1Z0 = 00 (no active input) • If I2I1 = 01, then Z1Z0 = 01 (low-priority input, X1, is active) • If I2I1 = 1-, then Z1Z0 = 10 (high-priority input, X2, is active) Note that...
8. For this problem, you are to design a simple combinational logic circuit and then use Logisim to simulate and test the circuit. The circuit is a 2- bit priority encoder with inputs X2 and X1 and outputs Y1 and Yo. The circuit behaves as follows: oIf X2X1 00, then Y1Yo 00 (no active input) If X2X1 01, then Y1Yo = 01 (low-priority input, X1, is active) If X2X1 1-, then Y1Y0 10 (high-priority input, X2, is active) Note that...
Q2 (20pts) Design a combinational ct that accepts an input 3-bit binary number (XYZ) and generates an output 4-bit binary number (ABCD) where output equal to the double of the input number. (a) Construct the truth table (b) State each output-bit as a function in sum of minterms (SOM) form: (c) State each output-bit as a function in product of maxterms (POM) form: ΠΜ(.) (d) Optimize the circuit using K-maps and find the simplified functions Show your work full-credit. Q3...
Part I Consider the combinational circuit shown in the figure. (25pts) 1. T2 Ts A.) Derive the Boolean expression for T1 through T4. And evaluate the outputs as a function of the inputs. B.) List the table with 16 binary combinations of the four input variables. Then list the binary values for T1 through T4 and outputs F1 and F2 in the table C.) Plot the Boolean output functions obtained in part (B) on maps, and show that the simplified...
Design using VHDL a 5 input majority voter circuit that outputs a 1 when majority of inputs are 1. inputs can be named A, B , C , D, E. Design using if and else wherever possible.
Design a Digital combinational logic circuit using logic gates that has 4 inputs and 2 outputs. The circuit: i. Turns on a Red LED if its input is a multiple of 2. (i.e., 0, 2, 4, 6, 8 …..) ii. Turns on a Green LED if its input is a multiple of 3. (i.e. 0, 3, 6, 9) - Draw the truth table for the circuit, bearing in mind that this circuit has 4 inputs and 2 outputs, meaning your...
A full-adder is a combinational circuit (memory-less) that forms the arithmetic sum of two input bits (say a and b) and a carry in (Cin, so three input bits total). The full-adder provides two outputs in the form of the (S)um and the carry out (Cout). The input bits a and b represent the terms to be added, but the full-adder needs to also consider the carry in bit, too. Construct a truth table for the Full-Adder Construct a K-Map...
