can be represented by a uniform rod 38.0 cm in length and 2.10 cm in radius....

Question

Question

science physics

Answer 1

Answer #1

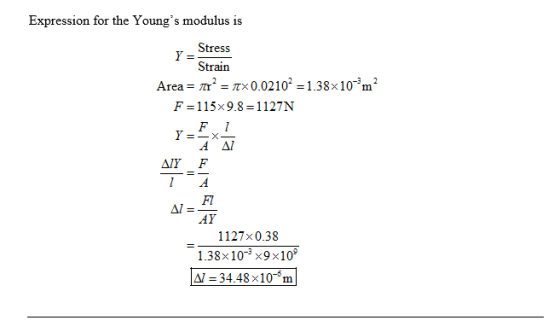

Expression for the Youngs modulus is Stress Strain Area = Tr-TX 0.02 10-1.38 x 10-3m 2 F= 1 1 5x9.8=1127N F 1 FI 1127×0.38 1

Answer 2

Similar Homework Help Questions

During a wrestling match, a 140 kg wrestler briefly stands on one hand during a maneuver...

During a wrestling match, a 140 kg wrestler briefly stands on one hand during a maneuver designed to perplex his adversary. By how much (in m) does the upper arm bone shorten in length? The bone can be represented by a uniform rod 38.0 cm in length and 2.10 cm in radius. Assume Young's modulus for bone under compression is 9 ✕ 109 N/m2. m
A graphene rod and a brass rod have the same length and diameter and are subjected...

A graphene rod and a brass rod have the same length and diameter and are subjected to the same force. If the graphene rod stretches by 2.60X 10^-6 m, by what amount will the brass rod stretch? Young's modulus for graphene = 1.00x 10^12 N/m2; for brass = 9.00X 10^10 N/m2.
When subjected to a force of compression, the length of a bone (compression Young's modulus 9.4...

When subjected to a force of compression, the length of a bone (compression Young's modulus 9.4 x 109 N/m2, tensile Young's modulus 1.6 x 1010 N/m2) decreases by 1.8 x 10-5 m. When this same bone is subjected to a tensile force of the same magnitude, by how much does it stretch?

A diamond rod and a tungsten rod have the same length and diameter and are subjected...

A diamond rod and a tungsten rod have the same length and diameter and are subjected to the same force. If the diamond rod stretches by 2.30 times 10^-6 m, by what amount will the tungsten rod stretch? Young's modulus for diamond = 1.22 times 10^12 N/m^2; for tungsten = 3.60 times 10^11 N/m^2. A spider of mass 7.0 times 10^-4 kg hangs from a 75.4-cm-long thread whose diameter is 2.0 times 10^-3 mm. Young's modulus of thread is 3....
During a wrestling match, a 135 kg wrestler briefly stands on one hand during a maneuver...

During a wrestling match, a 135 kg wrestler briefly stands on one hand during a maneuver designed to confuse his opponent. By how much does the upper arm bone shorten in length? The bone can be represented by a uniform rod 41 cm in length and 1.9 cm in radius. Young's Modulus is 1.6 x 1010 N/m2. Give your answer in microns.
Steel Young's Modulus (Y) 20 X 1010 N/m2 Shear Modulus (S) 8.1 X 1010 N/m2 Bulk...

Steel Young's Modulus (Y) 20 X 1010 N/m2 Shear Modulus (S) 8.1 X 1010 N/m2 Bulk Modulus (B) 16 X 1010 N/m2 The table to the above represents various properties of steel. You have steel wire 4.4 meters in length that stretches 0.12 cm when subjected to a force of 300 N. 1)What is the diameter of the wire? d1 =__________ cm 3)What would the diameter of the wire be if you wanted the wire to stretch 0.06 cm less...

A steel rod has a radius R of 9.5 mm and a length L or 81...

A steel rod has a radius R of 9.5 mm and a length L or 81 cm. A force F of 6.2 X 104 N stretches it axially. ( Y = 2.0 X 1011 N/m2). a) What is the stress in the rod? b) What is the elongation of the rod under the force. What is the strain?
A steel wire of length 1.99 m with circular cross section must stretch no more than...

A steel wire of length 1.99 m with circular cross section must stretch no more than 0.260 cm when a tensile (stretching) force of 380 N is applied to each end of the wire. What minimum diameter is required for the wire? Express your answer in millimeters. Take Young's modulus for steel to be Y = 2.00×1011 Pa .
During a circus act, one performer swings upside down hanging from a trapeze holding another, also...

During a circus act, one performer swings upside down hanging from a trapeze holding another, also upside down, performer by the legs. If the upward force on the lower performer is three times her weight, how much does each of the bones (the femurs) in her upper legs stretch (in m)? You may assume each is equivalent to a uniform rod 35.0 cm long and 1.80 cm in radius. Her mass is 51.5 kg. Assume Young's modulus for bone under...

A steel wire of length 2.01 m with circular cross section must stretch no more than...

A steel wire of length 2.01 m with circular cross section must stretch no more than 0.240 cm when a tensile (stretching) force of 450 N is applied to each end of the wire. What minimum diameter dmin is required for the wire? Express your answer in millimeters. Take Young's modulus for steel to be Y = 2.00×1011 Pa .
