Homework Answers
Add Answer to:

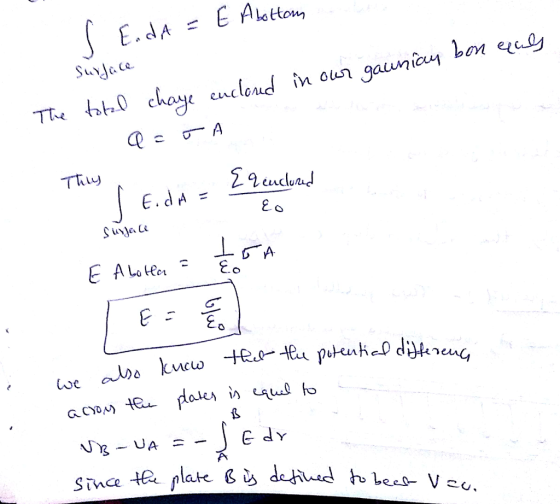

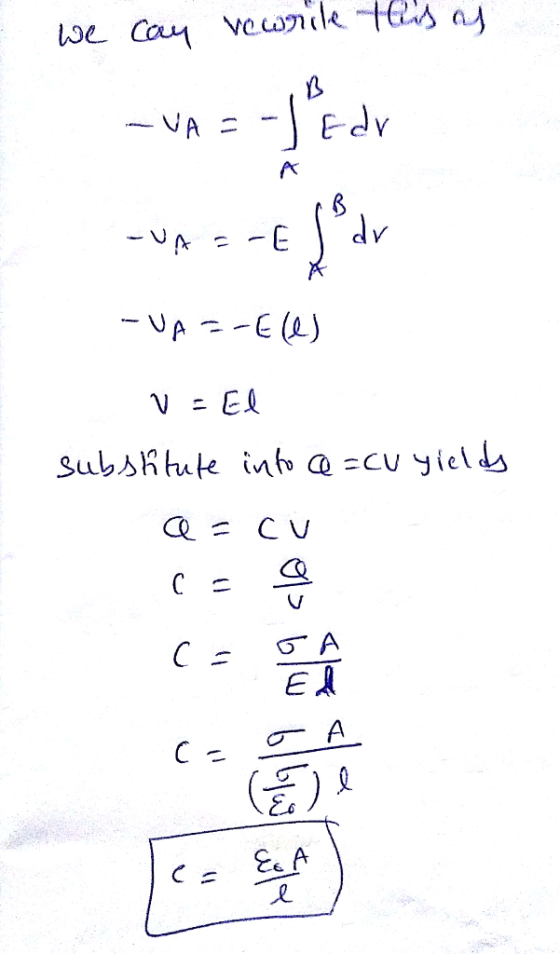

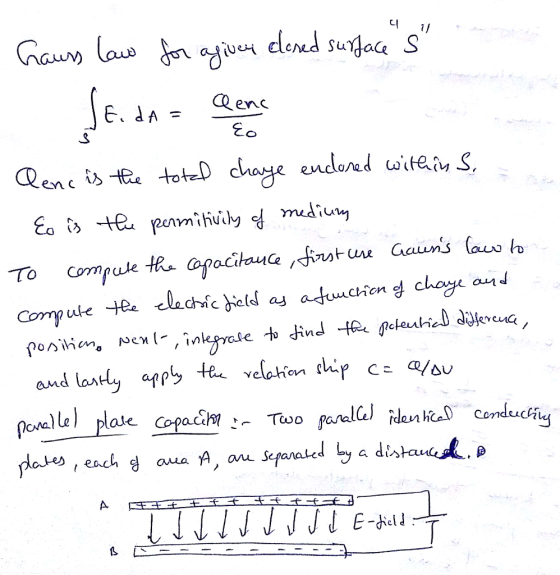

Using Gauss's Law show that the capacitance of a parallel plate capacitor is given by: Where...
derive the capacitance of a parallel plate capacitor where each plate has area A and the...
derive the capacitance of a parallel plate capacitor where each plate has area A and the plates are separated by a distance d. pleas show work step by step
A parallel plate capacitor has a capacitance of 400uF. If the distance between the parallel plates...
A parallel plate capacitor has a capacitance of 400uF. If the distance between the parallel plates is 15mm and the dielectric between the plates is air (k=1), what is the area of each parallel plate.
Question An air-filled parallel-plate capacitor is to have a capacitance of 0.6 F If the distance...
Question An air-filled parallel-plate capacitor is to have a capacitance of 0.6 F If the distance between the plates is 0.8 mm, calculate the required surface area of each plate. The permittivity of free space is 8.8542 x 10-12 C2/N m2. Answer in units of km2
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose...
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose permittivity varies linearly from e1 at one plate (y 0) to s2 at the other plate ( y=d). The plates have equal and opposite charge densities of magnitude o Write the equation for the permittivity as a function of position, i.e. s(y)= ? 3. AV Show the potential difference between the plates is 4. In Ae2-1 1 Determine the capacitance of the parallel plate...
A parallel plate capacitor has capacitance (Co). C, where 'd' is the separation distance between the...
A parallel plate capacitor has capacitance (Co). C, where 'd' is the separation distance between the plates. There exists a minimum plate separation (s) to keep the capacitor from discharging. Thus, Cp the electrometer is connected to the capacitor, the system capacitance becomes (Co+CP) Adding charge to the system produces an electrometer reading VE- ,-E07-_ where 'x' represents any additional plate separation. When QIf Cris changed Co+CP) to Cp' by changing the plate separation, the electrometer changes: V- Co+Cp Q3:...
A parallel-plate capacitor has the volume between its plates filled with plastic with dielectric constant K....
A parallel-plate capacitor has the volume between its plates filled with plastic with dielectric constant K. The magnitude of the charge on each plate is Q. Each plate has area A, and the distance between the plates is d. Use Gauss's law to calculate the magnitude of the electric field in the dielectric. Express your answer in terms of the given quantities and appropriate constants. Use the electric field determined in part A to calculate the potential difference between the...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and stays connected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: O stays the same O increases twice O decreases twice O decreases 4 times O increases 4 times
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137...
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137 mu C on each plate. The plates have a separation of 0.265 mm. What is the potential difference between the plates? What is the area of each plate? Use 8.85 times 10^-12 F/m for the permittivity of free space. What is the electric field magnitude between the plates? What is the surface-charge density on each plate?
1. An ideal parallel- plate capacitor has a capacitance of C. If the area of the...
1. An ideal parallel- plate capacitor has a capacitance of C. If the area of the plates is halved and the distance between the plates is doubled, what is the new capacitance? 2. a proton has a. speed of 5.0x10^5 m/s at a point where the electrical potential is 500 V. It moves through a point where the electrical potential is 1000V. What is the speed at this second point? (e=1.60x10^-10C)
Capacitor calculation a) Calculate the capacitance of a parallel-plate capacitor whose plates are made of two...
Capacitor calculation a) Calculate the capacitance of a parallel-plate capacitor whose plates are made of two different sizes. One plate has a radius of 10 cm and the other plate has 12 cm and is separated by 0.75 mm air gap. b) What is the charge on each plate if a 12-V battery is connected across the two plates? c) What is the electric field between the plates? d) Estimate the area of the plates needed to achieve a capacitance...
Question An air-filled parallel-plate capacitor is to have a capacitance of 0.6 F If the distance between the plates is 0.8 mm, calculate the required surface area of each plate. The permittivity of free space is 8.8542 x 10-12 C2/N m2. Answer in units of km2
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose permittivity varies linearly from e1 at one plate (y 0) to s2 at the other plate ( y=d). The plates have equal and opposite charge densities of magnitude o Write the equation for the permittivity as a function of position, i.e. s(y)= ? 3. AV Show the potential difference between the plates is 4. In Ae2-1 1 Determine the capacitance of the parallel plate...
A parallel plate capacitor has capacitance (Co). C, where 'd' is the separation distance between the plates. There exists a minimum plate separation (s) to keep the capacitor from discharging. Thus, Cp the electrometer is connected to the capacitor, the system capacitance becomes (Co+CP) Adding charge to the system produces an electrometer reading VE- ,-E07-_ where 'x' represents any additional plate separation. When QIf Cris changed Co+CP) to Cp' by changing the plate separation, the electrometer changes: V- Co+Cp Q3:...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and stays connected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: O stays the same O increases twice O decreases twice O decreases 4 times O increases 4 times
A parallel-plate air capacitor with a capacitance of 244 pF has a charge of magnitude 0.137 mu C on each plate. The plates have a separation of 0.265 mm. What is the potential difference between the plates? What is the area of each plate? Use 8.85 times 10^-12 F/m for the permittivity of free space. What is the electric field magnitude between the plates? What is the surface-charge density on each plate?
Capacitor calculation a) Calculate the capacitance of a parallel-plate capacitor whose plates are made of two different sizes. One plate has a radius of 10 cm and the other plate has 12 cm and is separated by 0.75 mm air gap. b) What is the charge on each plate if a 12-V battery is connected across the two plates? c) What is the electric field between the plates? d) Estimate the area of the plates needed to achieve a capacitance...
