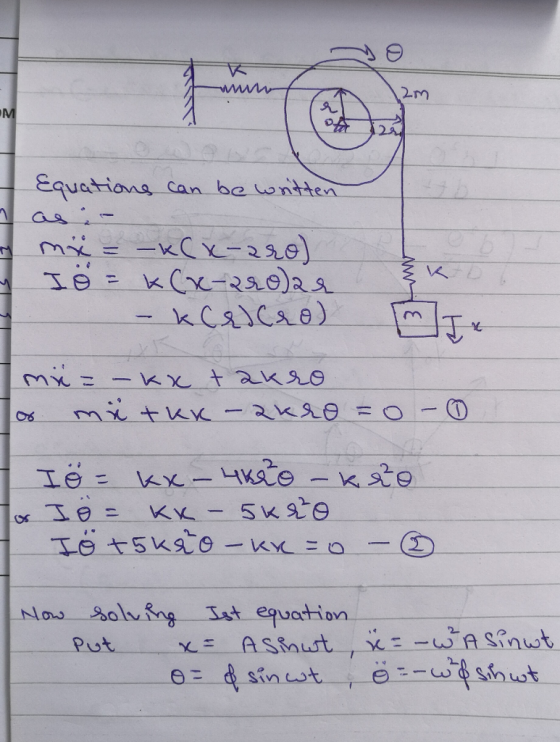

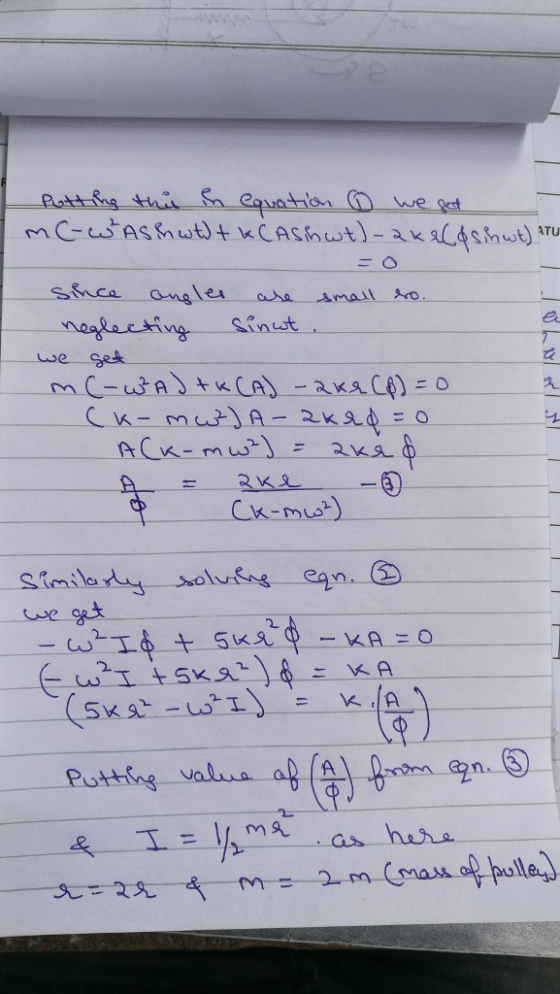

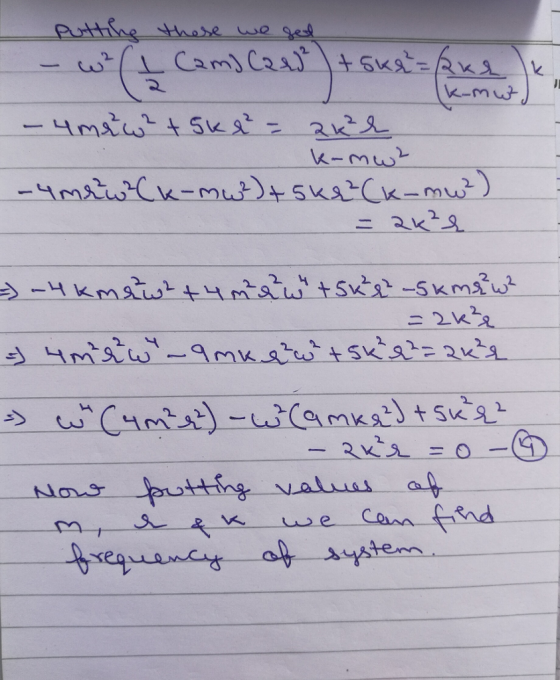

only need part 2
For the systems llustrated below, find the natural frequencies, mode shapes and...
PLEASE SOLVE JUST QUESTION 1. THANKS For the systems illustrated below, find the natural frequencies, mode...
PLEASE SOLVE JUST QUESTION 1. THANKS

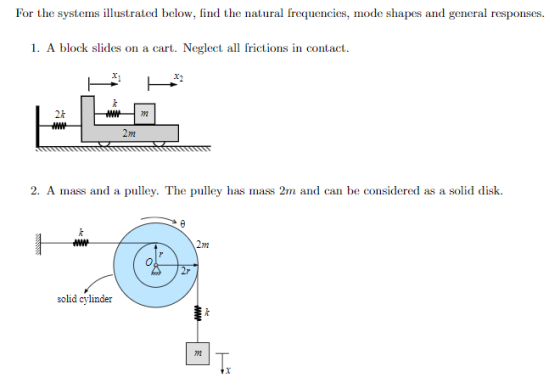

For the systems illustrated below, find the natural frequencies, mode shapes and general responses. 1. A block slides on a cart. Neglect all frictions in contact. X2 2k 2m 2. A mass and a pulley. The pulley has mass 2m and can be considered as a solid disk. 2m 2r solid cylinder
1. Consider the two degree of freedom system shown. (a) Find the natural frequencies for the system (b) Determine the modal fraction for each mode. (c) Draw the mode shapes for each mode and iden...
1. Consider the two degree of freedom system shown. (a) Find the natural frequencies for the system (b) Determine the modal fraction for each mode. (c) Draw the mode shapes for each mode and identify any nodes for each mode. (d) Demonstrate mode shape orthogonality. (e) If F- and the motion is initiated by giving the mass whose displacement is a velocity of 0.2 m/s when in equilibrium, determine 0) and ,0 (f) Determine the steady-state solution for both *)...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0 kg me = 1.5 kg 914 Given: Four degree of freedom spring-mass system with given masses an stiffnesses. Find: Natural frequencies and mode shapes. Approach: Find the eigenvalues and eigenvectors of the dynamical matrix. 1. Determine [m] and [k] matrices of the vibrating system with all details 2. Determine [DI matrix. 3. Determine Natural frequencies and mode shapes analytically 3....
4. (35 pts) Consider the system defined by: xit 5x1-2x2-R (1) #2-2x, +2x2 F) a) Compute the natural frequencies and the mode shapes. /dland -JS -2N5 b) Calculate the response for F(t)-F(t)-0 and...
4. (35 pts) Consider the system defined by: xit 5x1-2x2-R (1) #2-2x, +2x2 F) a) Compute the natural frequencies and the mode shapes. /dland -JS -2N5 b) Calculate the response for F(t)-F(t)-0 and initial conditions xo- e) Calculate the response for F-cosr, F,(o)-0 and initial conditions and -0. 0 d) Calculate Bi and B2 such that the system: -2x1 + 2x2-B2cos/6t does not experience resonance.
4. (35 pts) Consider the system defined by: xit 5x1-2x2-R (1) #2-2x, +2x2 F) a)...
PLEASE SOLVE JUST QUESTION 1. THANKS
For the systems illustrated below, find the natural frequencies, mode shapes and general responses. 1. A block slides on a cart. Neglect all frictions in contact. X2 2k 2m 2. A mass and a pulley. The pulley has mass 2m and can be considered as a solid disk. 2m 2r solid cylinder
1. Consider the two degree of freedom system shown. (a) Find the natural frequencies for the system (b) Determine the modal fraction for each mode. (c) Draw the mode shapes for each mode and identify any nodes for each mode. (d) Demonstrate mode shape orthogonality. (e) If F- and the motion is initiated by giving the mass whose displacement is a velocity of 0.2 m/s when in equilibrium, determine 0) and ,0 (f) Determine the steady-state solution for both *)...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0 kg me = 1.5 kg 914 Given: Four degree of freedom spring-mass system with given masses an stiffnesses. Find: Natural frequencies and mode shapes. Approach: Find the eigenvalues and eigenvectors of the dynamical matrix. 1. Determine [m] and [k] matrices of the vibrating system with all details 2. Determine [DI matrix. 3. Determine Natural frequencies and mode shapes analytically 3....
4. (35 pts) Consider the system defined by: xit 5x1-2x2-R (1) #2-2x, +2x2 F) a) Compute the natural frequencies and the mode shapes. /dland -JS -2N5 b) Calculate the response for F(t)-F(t)-0 and initial conditions xo- e) Calculate the response for F-cosr, F,(o)-0 and initial conditions and -0. 0 d) Calculate Bi and B2 such that the system: -2x1 + 2x2-B2cos/6t does not experience resonance.
4. (35 pts) Consider the system defined by: xit 5x1-2x2-R (1) #2-2x, +2x2 F) a)...
