Question

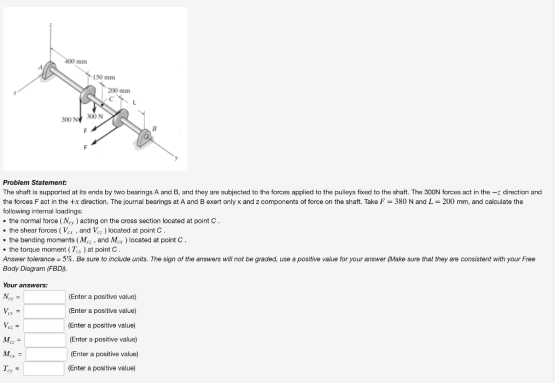

400 mm 150 mm 300N 300 N Problem Statement: The shaft is supported at its ends by two bearings A and B, and they are subjected to the forces applied to the pulleys fixed to the shaft. The 300N forces act in the-z direction and the forces F act in the +x direction. The journal bearings at A and B exert only x and z components of force on the shaft. Take F-380 N and L = 200 mm, and calculate the following internal loadings: the normal force (Ncy acting on the cross section located at point C the shear forces ( Vcr , and Vez ) located at point C . the bending moments (Mcz , and Mcx) located at point C the torque moment ey at point C Answer tolerance = 5%. Be sure to include units. The sign of the answers will not be graded, use a positive value for your answer (Make sure that they are consistent with your Free Body Diagram (FBD)) Your answers: (Enter a positive value) (Enter a positive value) (Enter a positive value) (Enter a positive value) (Enter a positive value) (Enter a positive value) су Cz ey

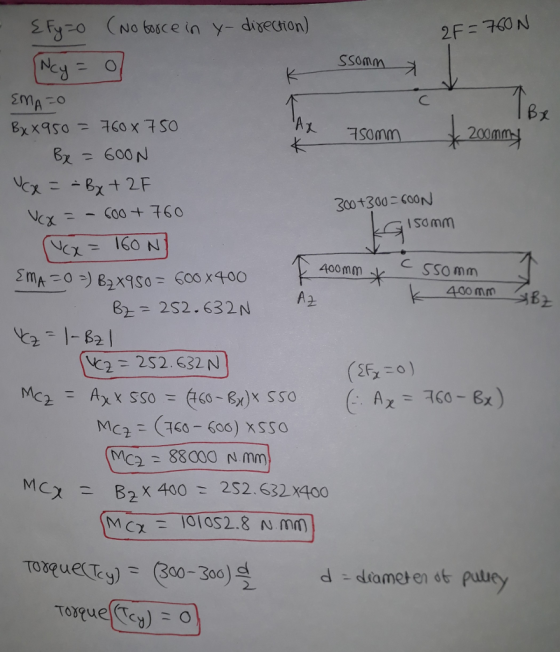

Answer 1
