A 3.0cm diameter circular coil with 31 turns of wire has resistance 1.4? . This coil...

A 3.0cm diameter circular coil with 31 turns of wire has resistance 1.4? . This coil is placed inside a solenoid, with coil and solenoid axes aligned. The solenoid has 3100 turns and is 26cm long.
At what rate must the current in the solenoid be increased to induce a 1.3mA current in the coil?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

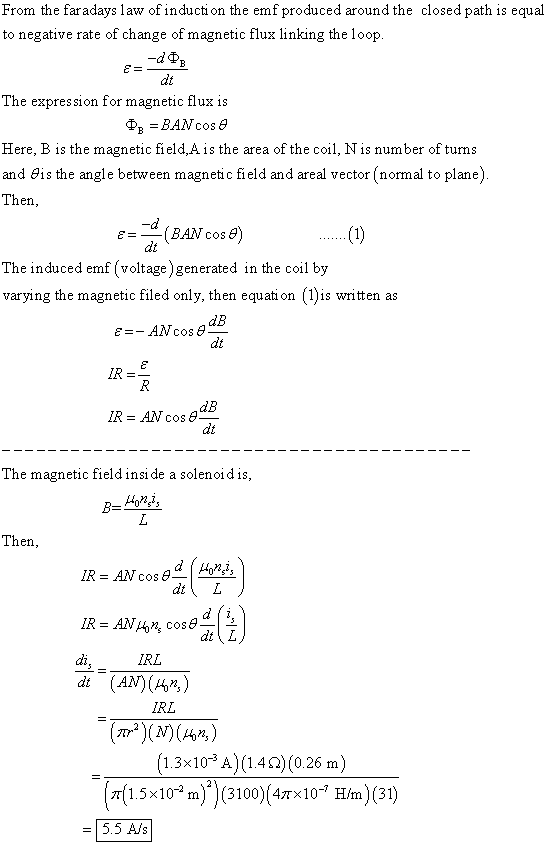

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 3.0cm diameter circular coil with 31 turns of wire has resistance 1.4? . This coil...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • PLEASE ANSWER ALL PARTS a. A circular coil of wire with 7 loops and a radius...

    PLEASE ANSWER ALL PARTS a. A circular coil of wire with 7 loops and a radius of 0.041 m is placed inside a solenoid. The coil is aligned so that the normal to the coil is parallel to the magnetic field in the solenoid. The solenoid consists of 40000 loops of wire and is 0.18 m long. Initially a current of 0.5 A runs through the solenoid. The current is increased to 4.5 A over a period of 4.1 s....

  • a. A coil of wire with 209 circular turns of radius 3.10 cm is in a...

    a. A coil of wire with 209 circular turns of radius 3.10 cm is in a uniform magnetic field along the axis of the coil. The coil has R = 41.5 Ω . At what rate, in teslas per second, must the magnetic field be changing to induce a current of 0.149 A in the coil? b. A closely wound rectangular coil of 90.0 turns has dimensions of 30.0 cm by 47.0 cm . The plane of the coil is...

  • A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of...

    A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of 5.0 A. It is placed in a magnetic field of 0.9T with the plane of the coil making an angle of 30° with the magnetic field. What is the magnetic torque on the coil? A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of 5.0 A. It is placed in a magnetic field of with the plane of...

  • A square, single-turn wire coil L = 1.52 cm on a side is placedinside a...

    A square, single-turn wire coil L = 1.52 cm on a side is placed inside a solenoid that has a circular cross-section of radius r = 2.79 cm, as shown in the figure below.The solenoid is 18.0 cm long and wound with 107 turns of wire. If the current in the solenoid is 3.38 A, find the flux through the coil.If the current in the solenoid is reduced to zero in 3.37 s, calculate the magnitude of the average induced...

  • A long solenoid has 470 turns per meter. A coil of radius 1.1 cm with 30...

    A long solenoid has 470 turns per meter. A coil of radius 1.1 cm with 30 turns of insulated wire is placed inside the solenoid, its axis parallel to the axis of the solenoid. (a) What is the mutual inductance? H (b) What emf will be induced around the coil if the current in the solenoid winding changes at the rate of 180 A/s? V

  • A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each...

    A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each circular turn is 2cm. When the current travels through the solenoid, a .35 Tesla field is created inside. A. How much current is traveling through this solenoid? B. The diameter of this solenoid is decreased to 1cm. Using the current in Part A, what is the magnetic field magnitude now? C. If this solenoid is created by a fixed length of wire, so that...

  • A solenoidal coil with 23 turns of wire is wound tightly around another coil with 320...

    A solenoidal coil with 23 turns of wire is wound tightly around another coil with 320 turns. The inner solenoid is 25.0 cm long and has a diameter of 2.30 cm . At a certain time, the current in the inner solenoid is 0.100 A and is increasing at a rate of 1700 A/s Calculate the emf induced in the outer solenoid by the changing current in the inner solenoid

  • A copper wire makes up a 139 turns, 5.60 cm diameter coil. The resistance of the...

    A copper wire makes up a 139 turns, 5.60 cm diameter coil. The resistance of the coil is 3.40 Ω. There is a magnetic field parallel to the axis of the coil. If the induced current in the coil is 2.20 A, what is the rate of change of the magnetic field?

  • 1. A circular coil of wire 8.60 cm in diameter has 16.0 turns and carries a...

    1. A circular coil of wire 8.60 cm in diameter has 16.0 turns and carries a current of 2.90 A . The coil is in a region where the magnetic field is 0.620 T . a. What orientation of the coil gives the maximum torque on the coil ? Please, enter the value of the angle between the field and the normal to the plane of the loop. b. What is this maximum torque in part (A) ? c. For...

  • A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310...

    A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310 turns. The inner solenoid is 24.0 cm long and has a diameter of 2.00 cm . At a certain time, the current in the inner solenoid is 0.130 A and is increasing at a rate of 1800 A/s . A) For this time, calculate the average magnetic flux through each turn of the inner solenoid. B) For this time, calculate the mutual inductance of...
